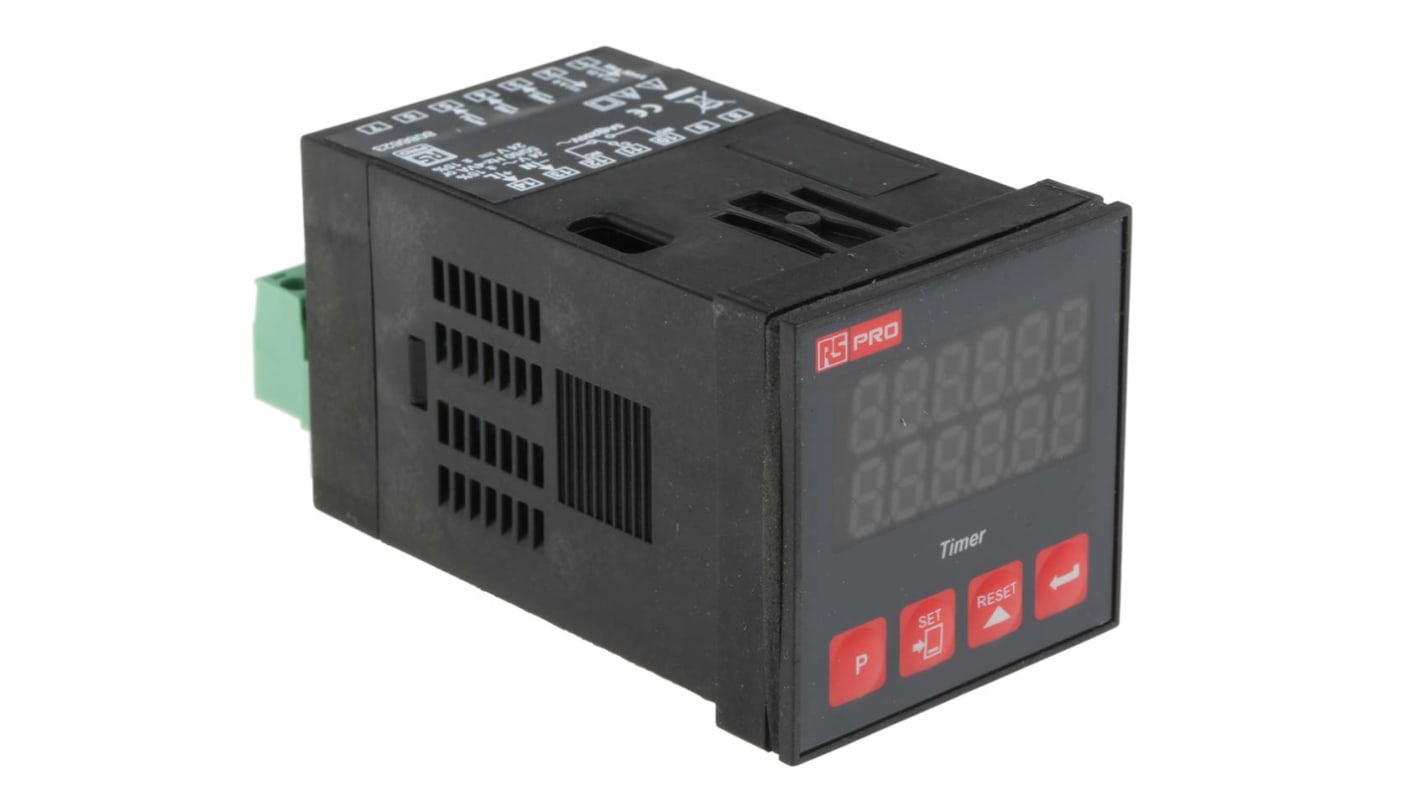

RS PRO Panel Timer Relay, 1-Contact, 30 V dc 24V ac, 1-Function, SPDT Switch Configuration
- RS Stock No.:
- 808-6623
- Brand:
- RS PRO
Get a bulk buy discount
Add 5 more to save £19.10
View bulk pricing optionsSubtotal (1 unit)*
£95.64
(exc. VAT)
£114.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 131 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £95.64 | - |
| 5 - 9 | £91.82 | £19.10 |
| 10 + | £88.00 | £76.40 |
*price indicative
- RS Stock No.:
- 808-6623
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Timer Relay | |
| Mount Type | Panel | |
| Function | Multifunction | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPDT | |
| IP Rating | IP65 | |
| Supply AC Voltage | 24V ac | |
| Minimum Operating Temperature | 0°C | |
| Timing Adjustment | Switch | |
| Contact Current | 5A | |
| Supply DC Voltage | 30 V dc | |
| Mode | One Shot | |
| Maximum Operating Temperature | 50°C | |
| Terminal Type | Screw | |
| Height | 48mm | |
| Width | 48mm | |
| Length | 95.5mm | |
| Standards/Approvals | RoHS, CE | |
| Series | RS PRO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Timer Relay | ||
Mount Type Panel | ||
Function Multifunction | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Contact Configuration SPDT | ||
IP Rating IP65 | ||
Supply AC Voltage 24V ac | ||
Minimum Operating Temperature 0°C | ||
Timing Adjustment Switch | ||
Contact Current 5A | ||
Supply DC Voltage 30 V dc | ||
Mode One Shot | ||
Maximum Operating Temperature 50°C | ||
Terminal Type Screw | ||
Height 48mm | ||
Width 48mm | ||
Length 95.5mm | ||
Standards/Approvals RoHS, CE | ||
Series RS PRO | ||
- COO (Country of Origin):
- TR
RS PRO Single-function Timer Relay
The RS PRO single-function timer relay performs the function of providing a one-shot delay in the range between 2 milliseconds and 250 milliseconds. It is a compact digital equipment with high precision and accuracy to suit a wide variety of applications. This can be installed into new and existing applications without much hassle.
Features and Benefits
The supply voltage rating is 24VAC/24VDC
1C/O SPDT contact configuration with relay output 50mA
6-digit LED display
Supports both, NPN and PNP sensors
Inputs for capacitive and proximity sensors and an encoder supported
Manual and automatic reset options
2 millisecond to 250 millisecond adjustable filter for pause, reset and start input parameters
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Machine processing of glass, marble, plastic, sheet iron and fabric filling systems
Quality control roller systems
Packaging machinery
Building automation
Tool benches
Certifications
IP65 rated (front panel)
IP20 rated (protection at rear)
CE certified
