Better World

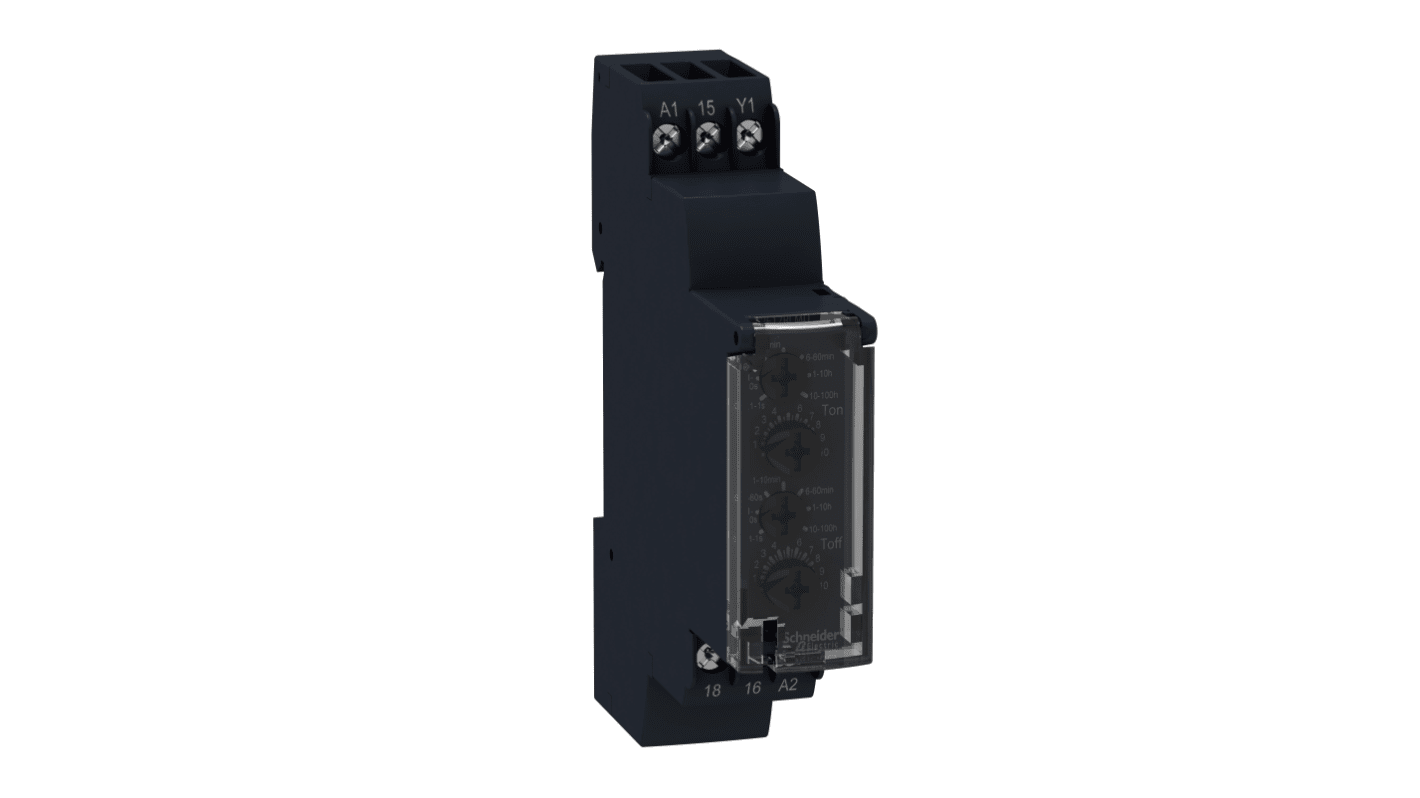

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac, 0.1 s → 100h, Solid State
- RS Stock No.:
- 791-2714
- Distrelec Article No.:
- 303-02-758
- Mfr. Part No.:
- RE17LLBM
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£59.03
(exc. VAT)
£70.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 999,999,997 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.03 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-2714
- Distrelec Article No.:
- 303-02-758
- Mfr. Part No.:
- RE17LLBM
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Supply Voltage | 24 → 240V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Asymmetrical | |
| Time Range | 0.1 s → 100h | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | Solid State | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 0.7A | |
| Maximum Voltage | 240V ac | |
| Terminal Type | Screw | |
| Minimum Voltage | 24V ac | |
| Width | 17.5mm | |
| Better World Verification | Green Premium | |
| Minimum Current | 0.7A | |
| Maximum Operating Temperature | +60°C | |
| Depth | 72mm | |
| Series | Harmony Time | |
| Better World Product | Yes | |
| Length | 90mm | |
| Time Delay | <100ms | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Supply Voltage 24 → 240V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation Asymmetrical | ||
Time Range 0.1 s → 100h | ||
Number of Timer Functions Multi Function | ||
Contact Configuration Solid State | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 0.7A | ||
Maximum Voltage 240V ac | ||
Terminal Type Screw | ||
Minimum Voltage 24V ac | ||
Width 17.5mm | ||
Better World Verification Green Premium | ||
Minimum Current 0.7A | ||
Maximum Operating Temperature +60°C | ||
Depth 72mm | ||
Series Harmony Time | ||
Better World Product Yes | ||
Length 90mm | ||
Time Delay <100ms | ||
Minimum Operating Temperature -20°C | ||
Asymmetrical Flasher Timer - Zelio RE17L Series
RE17L series timing relays enable simple automation cycles to be set up using wired logic. They can also be used to complement the functions of PLCs.
Timing relays with solid state output reduce the amount of wiring required (wired in series). The durability of these timing relays is independent of the number of operating cycles.
Timing relays with solid state output reduce the amount of wiring required (wired in series). The durability of these timing relays is independent of the number of operating cycles.
Asymmetrical flasher function
Multivoltage
LED state indicator
Solid state output 0.7 A
Screw terminals
DIN rail mounting
Multivoltage
LED state indicator
Solid state output 0.7 A
Screw terminals
DIN rail mounting
