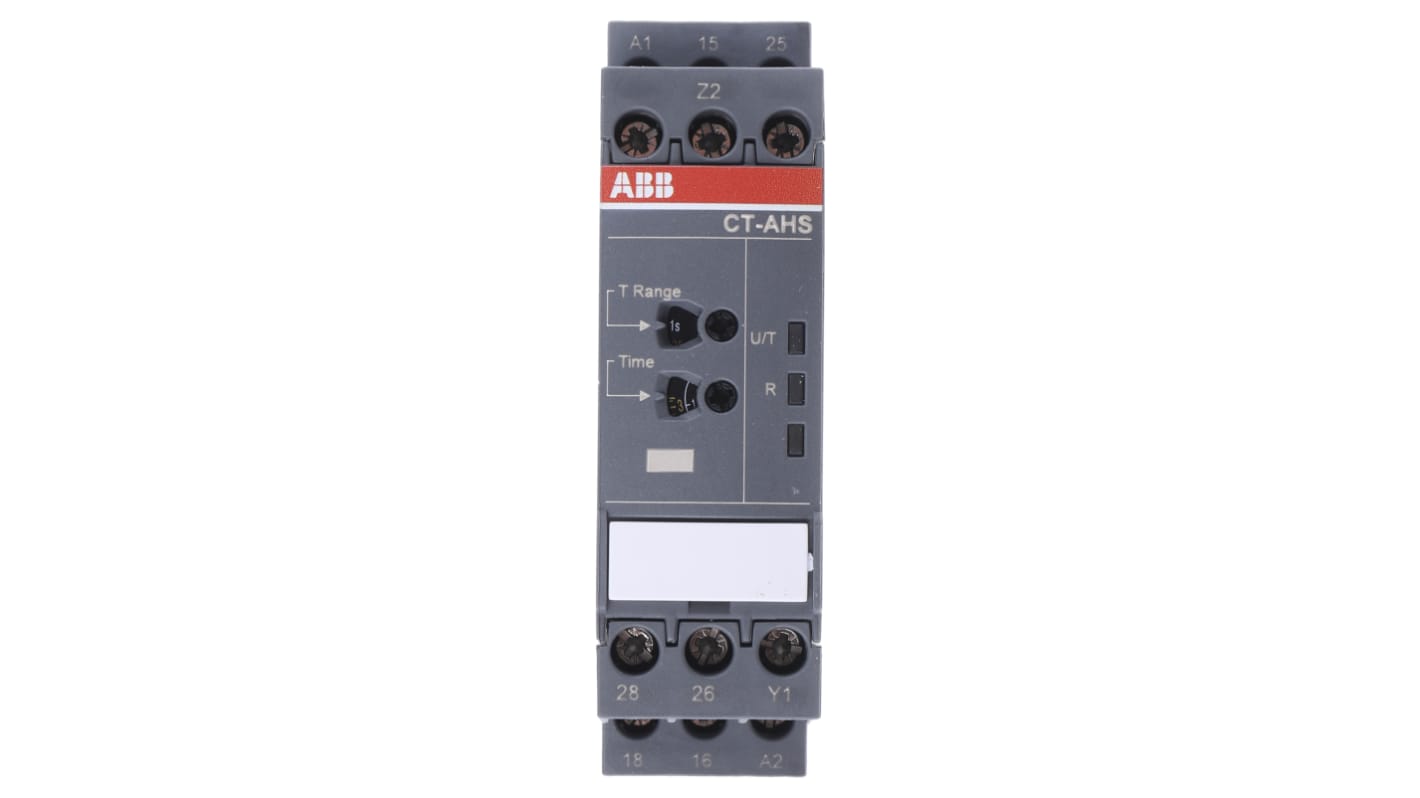

ABB 1SVR Series DIN Rail Mount Timer Relay, 24 → 240 V ac, 24 → 48V dc, 2-Contact, 0.05 s → 300h,

View all Timer Relays
Bulk discount available

Subtotal (1 unit)*

£88.78

(exc. VAT)

£106.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
  • Plus 7 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£88.78
5 - 9£84.34
10 - 24£79.91
25 - 49£75.45
50 +£71.02

*price indicative

RS Stock No.:
746-7012
Distrelec Article No.:
304-01-620
Mfr. Part No.:
1SVR730110R3300 CT-AHS.22S
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Supply Voltage

24 → 240 V ac, 24 → 48V dc

Mounting Type

DIN Rail

Mode of Operation

OFF Delay

Time Range

0.05 s → 300h

Number of Contacts

2

Number of Timer Functions

Single

Contact Configuration

DPDT

Time Increment

Hours, Seconds

Maximum Current

4A

Maximum Voltage

300V ac

Terminal Type

Screw

Switch Configuration

SPDT

Minimum Voltage

12V

Width

22.5mm

Power Supply

External

Length

85.6mm

Maximum Operating Temperature

+60°C

Minimum Current

0.01A

Series

1SVR

Depth

113.4mm

Minimum Operating Temperature

-25°C

Time Delay

(Recovery) <80ms

Contact Material

Cadmium Free

COO (Country of Origin):
DE

ABB 1SVR Series Timer Relay, 24 to 240V AC/24 to 48V DC Supply Voltage, DPDT Contact Configuration - 1SVR730110R3300 CT-AHS.22S


This timer relay is ideal for precise control in various automation applications. It operates within a supply voltage range of 24 to 240 V AC and 24 to 48 V DC, offering essential timing functionalities crucial for efficient electrical system operation. The OFF delay mode allows for flexible timing solutions, making it suitable for both industrial and mechanical environments.

Features & Benefits


• Supports a wide voltage range for various applications
• OFF delay mode provides adjustable timing management
• Maximum time range of 0.05s to 300h for extended operation
• DPDT contact configuration allows for versatile control
• Screw terminal type ensures secure connections
• Capable of withstanding operating temperatures from -25°C to +60°C

Applications


• Controls motor start/stop functions
• Utilised in lighting control systems where timing is important
• Ideal for HVAC systems requiring timed operations
• Employed in industrial machinery for sequential operations
• Suitable for automation tasks needing precise time delays

What type of current can this product handle?


It can manage a maximum current of 4A, making it appropriate for a variety of electrical control applications.

Is the installation process straightforward?


Yes, the product is designed for easy DIN rail mounting, ensuring a quick setup in existing electrical arrangements.

What happens if the voltage exceeds the specified limits?


Exceeding the maximum voltage of 300V AC could potentially damage the relay, affecting its performance and safety.

Can it function in extreme temperatures?


Yes, it operates effectively in temperatures ranging from -25°C to +60°C, allowing use in various environments.

How does this device aid in automation tasks?


The accurate timing functionalities ensure synchronisation in industrial processes, enhancing overall operational efficiency.
