Omron Timer Relay, 4-Contact, 24 V ac 24V ac, 0.5 to 10 s, 1-Function, DPDT Switch Configuration
- RS Stock No.:
- 264-1667
- Mfr. Part No.:
- H3Y-2 AC24 10S
- Brand:
- Omron
Subtotal (1 unit)*
£58.18
(exc. VAT)
£69.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.18 |
*price indicative
- RS Stock No.:
- 264-1667
- Mfr. Part No.:
- H3Y-2 AC24 10S
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Timer Relay | |
| Function | Multifunction | |
| Time Range | 0.5 to 10 s | |
| Number of Contacts | 4 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| IP Rating | IP40 | |
| Contact Current | 3A | |
| Minimum Operating Temperature | -10°C | |
| Supply DC Voltage | 24 V ac | |
| Supply AC Voltage | 24V ac | |
| Terminal Type | Plug-In | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | UL, EN 61812-1, CSA | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Timer Relay | ||
Function Multifunction | ||
Time Range 0.5 to 10 s | ||
Number of Contacts 4 | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
IP Rating IP40 | ||
Contact Current 3A | ||
Minimum Operating Temperature -10°C | ||
Supply DC Voltage 24 V ac | ||
Supply AC Voltage 24V ac | ||
Terminal Type Plug-In | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals UL, EN 61812-1, CSA | ||

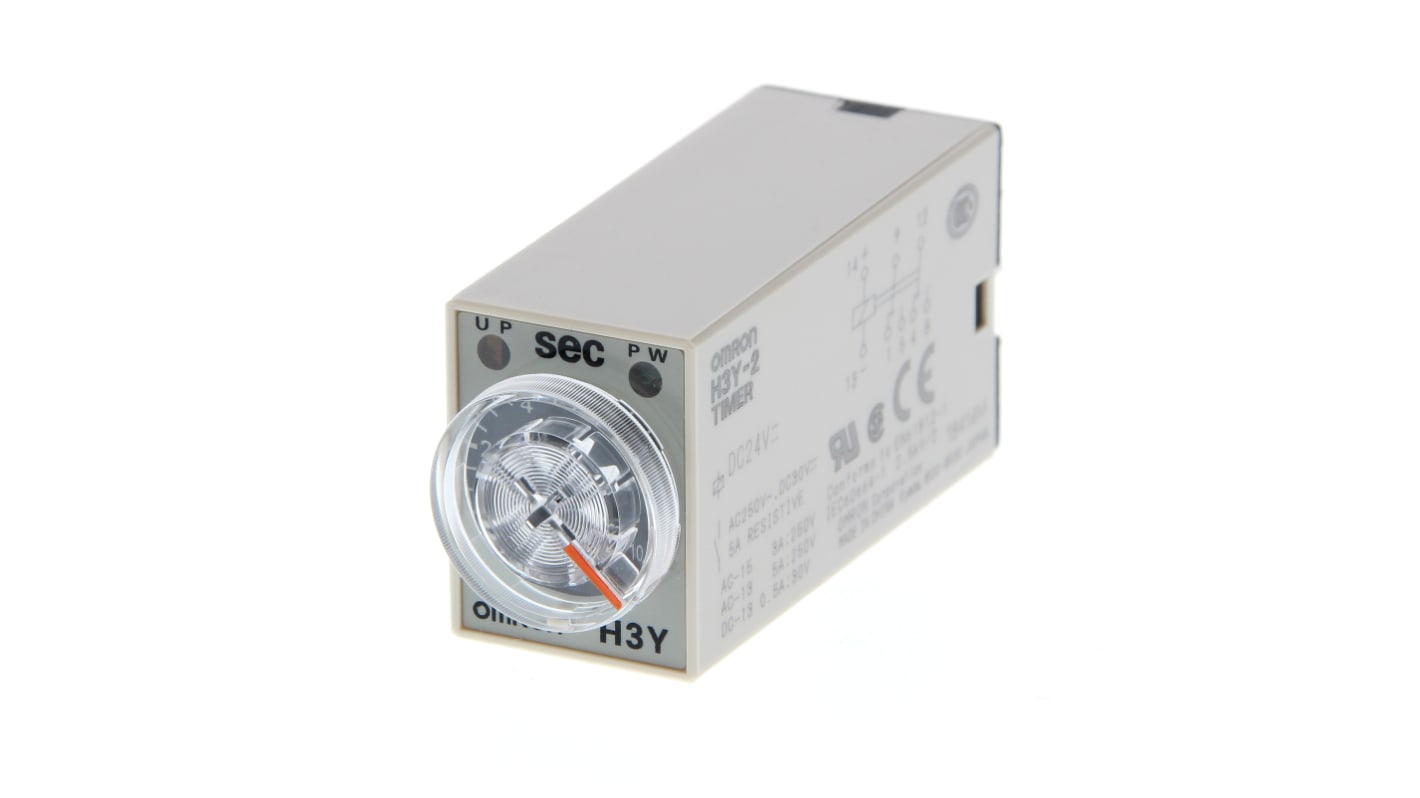

Omron Timer Relay, 0.5to10s Time Range, 24V AC Supply Voltage - H3Y-2 AC24 10S
This timer relay provides electrically timed switching for control circuits in automation and electrical systems. Designed for 24V AC supply, it delivers selectable delay operation within a short-range interval and connects via a plug-in Terminal for straightforward replacement or panel installation. The relay’s contact arrangement supports multiple circuit paths and it is built to operate across typical industrial ambient temperatures.
Features and Benefits:
• DPDT contact arrangement enables switching of two independent circuits
• 3A contact rating supports moderate control loads
• Time range 0.5 to 10 s offers fine short-delay control
• Plug-in Terminal simplifies installation and maintenance
• IP40 enclosure rating allows protected indoor use
• Rated for operation between -10°C and 50°C
• 3A contact rating supports moderate control loads
• Time range 0.5 to 10 s offers fine short-delay control
• Plug-in Terminal simplifies installation and maintenance
• IP40 enclosure rating allows protected indoor use
• Rated for operation between -10°C and 50°C
Applications
• Suitable for sequential motor start interlocks in machinery control
• Ideal for timed lighting control within control panels
• Used for delay functions in conveyor line sequencing
• Can be used for pump cycle timing in process skids
• Used with PLCs for supplementary timing logic in automation
• Ideal for timed lighting control within control panels
• Used for delay functions in conveyor line sequencing
• Can be used for pump cycle timing in process skids
• Used with PLCs for supplementary timing logic in automation
What contact capacity can I expect for switching small loads?
The relay provides a 3A switching capability per contact, suitable for control circuits and low-power actuators.
How is the unit mounted and connected in a control cabinet?
It uses a plug-in Terminal format allowing it to be seated into a mating base for quick replacement and secure electrical connection.
What environmental limits should I observe during installation?
The device is intended for protected indoor environments with ambient temperatures from -10°C to 50°C and an IP40 protection level.
Which safety and performance standards does it conform to?
It meets recognised standards for industrial control equipment, including UL, EN 61812-1 and CSA.
