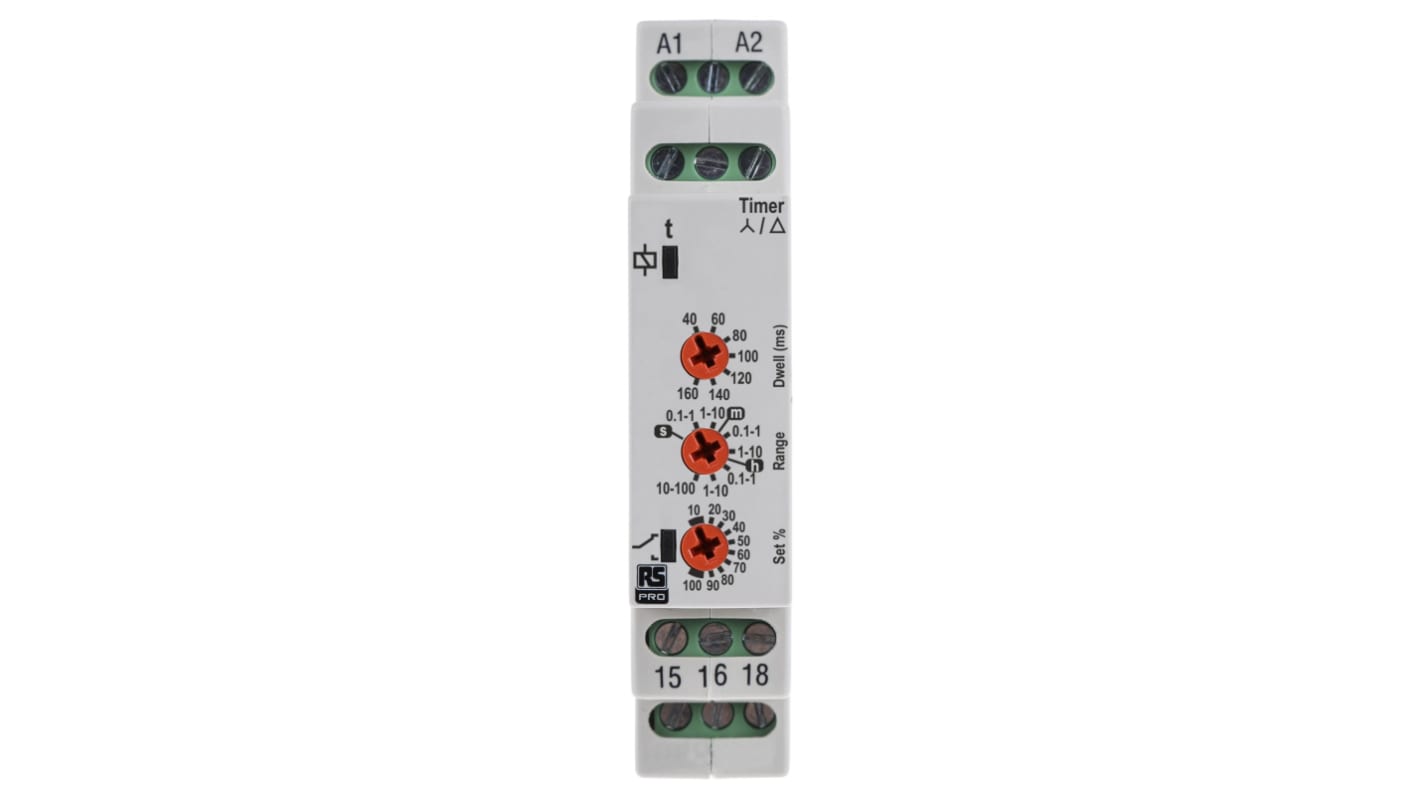

RS PRO Star/Delta Start Timer
RS PRO is proud to introduce the superb Star/Delta Start timer. This device is used in conjunction with external contactors and limits the duration a 3-phase motor runs in Star configuration before switching over to Delta. When power is applied, the output relay remains de-energised for the set time delay period. After the delay has elapsed, the contacts break for the set Dwell time, then change over to the energised state.
Features and Benefits
- Timing function: Star/Delta
- 7 Selectable Dwell time settings (40 – 160mS)
- 7 Selectable time ranges (0.1 seconds – 100 hours)
- Fine adjustment of selected time range
- Multi-voltage (24 – 230VAC/12 – 230VDC)
- 1 x SPDT relay output 8A
- Green LED indication for supply / timing status
- Red LED indication for relay status
- IP 20 (Terminal Protections)
Applications
- Control Panels
- Safety Control
- Industrial process control
RS PRO
RS PRO offer a wide selection of Time Relays. Browse our range using the improved filters to locate the ideal solution for your application.
Approvals
- CE, RoHS and C-tick compliant CUL Listed
- Conforms to IEC 61812.
- EMC: Immunity EN 61000-6-2 (EN 61000-4-3 10V/m 80MHz - 2.7GHz)
- Emissions: EN 61000-6-4
Specifications
Attribute | Value |
---|---|
Supply Voltage | 24 → 230V ac |
Mounting Type | DIN Rail, Surface Mount |
Mode of Operation | Star Delta |
Time Range | 0.1s to 100h |
Number of Contacts | 2 |
Number of Timer Functions | Single |
Contact Configuration | SPDT |
Terminal Type | Screw |
Switch Configuration | SPDT |
