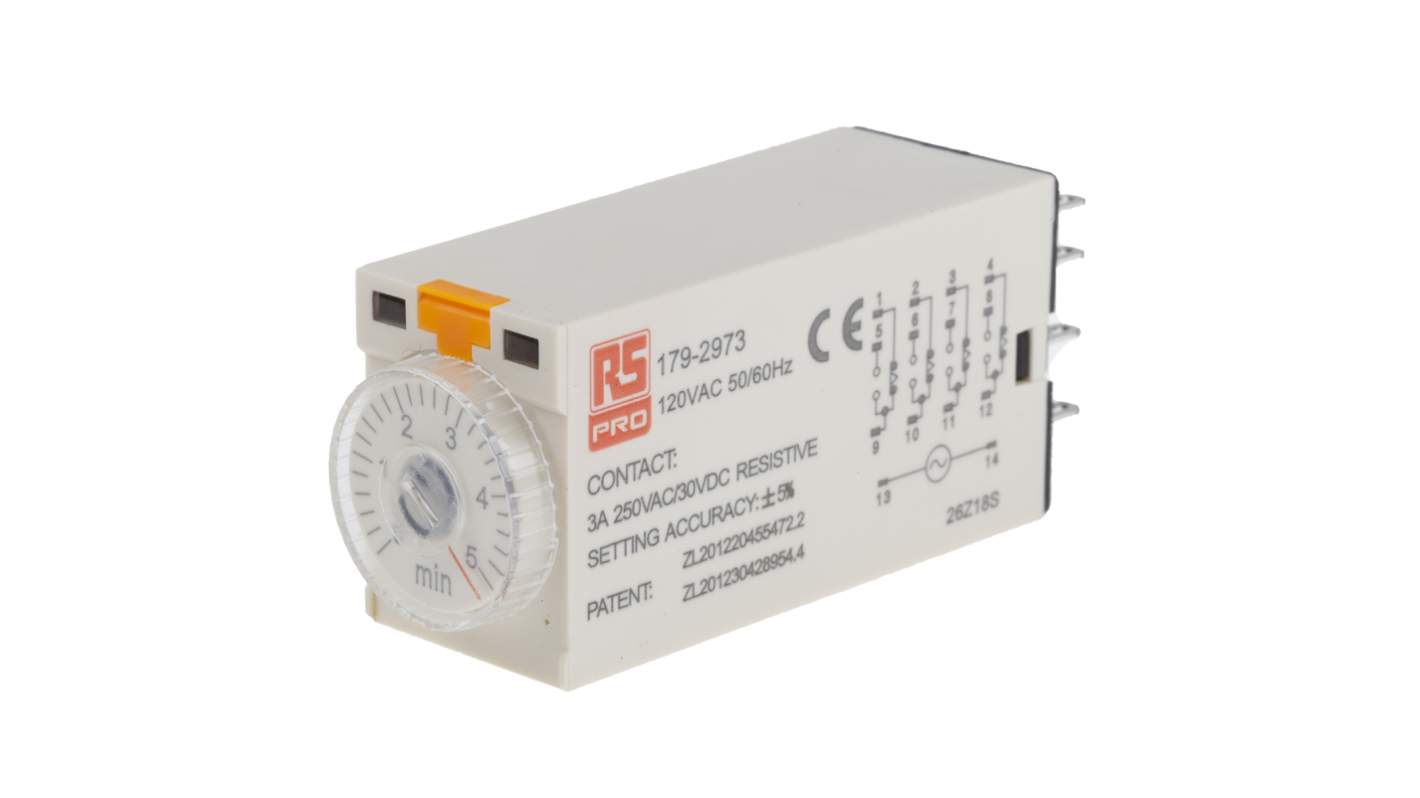

RS PRO Plug-in Timer Relay, 4-Contact 110 V ac, 0.2 s, 5 min, 1-Function, 4PDT Switch Configuration
- RS Stock No.:
- 179-2973
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£30.33
(exc. VAT)
£36.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £30.33 |
| 5 - 9 | £29.12 |
| 10 + | £27.91 |
*price indicative
- RS Stock No.:
- 179-2973
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Plug-in | |
| Product Type | Timer Relay | |
| Number of Contacts | 4 | |
| Supply AC Voltage | 110 V ac | |
| Time Range | 0.2 s, 5 min | |
| Number of Timer Functions | 1 | |
| Contact Configuration | 4PDT | |
| Contact Current | 3 A | |
| Function | ON Delay | |
| Length | 53 mm | |
| Maximum Operating Temperature | 55 °C | |
| Minimum Operating Temperature | 10 °C | |
| Standards/Approvals | RoHS | |
| Switching Voltage | 250 V ac | |
| Terminal Type | 14-Pin | |
| Width | 21.5 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Plug-in | ||
Product Type Timer Relay | ||
Number of Contacts 4 | ||
Supply AC Voltage 110 V ac | ||
Time Range 0.2 s, 5 min | ||
Number of Timer Functions 1 | ||
Contact Configuration 4PDT | ||
Contact Current 3 A | ||
Function ON Delay | ||
Length 53 mm | ||
Maximum Operating Temperature 55 °C | ||
Minimum Operating Temperature 10 °C | ||
Standards/Approvals RoHS | ||
Switching Voltage 250 V ac | ||
Terminal Type 14-Pin | ||
Width 21.5 mm | ||
- COO (Country of Origin):
- CN
14 pin plug-in
Analogue Dial Display
On Delay Timer
Note
Suitable sockets for the 8-pin and 14-pin timer relays from this series are: 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.)
