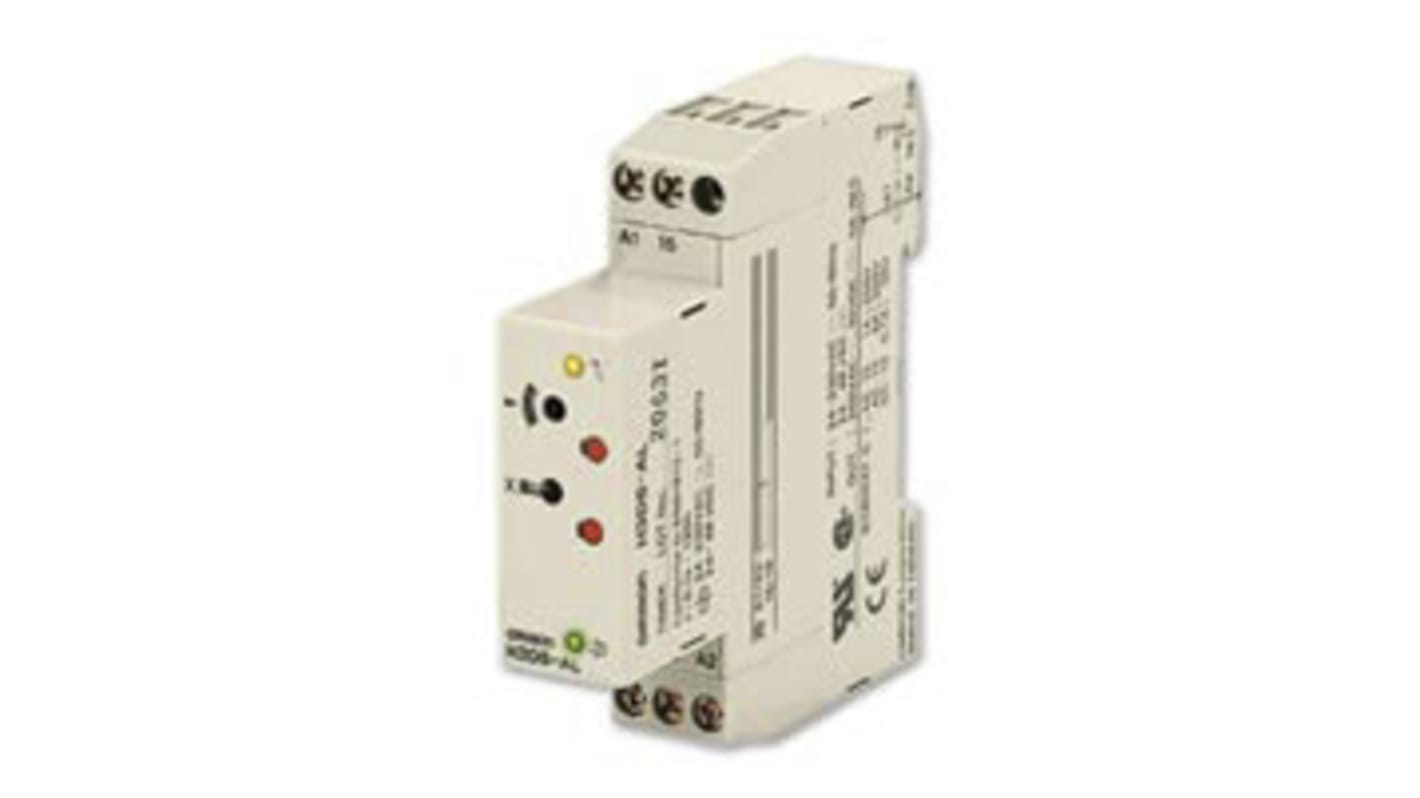

Omron H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 2-Contact, 0.1 s → 120h,
- RS Stock No.:
- 177-0077
- Mfr. Part No.:
- H3DS-FLC
- Brand:
- Omron
Subtotal (1 unit)*
£84.39
(exc. VAT)
£101.27
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £84.39 |
*price indicative
- RS Stock No.:
- 177-0077
- Mfr. Part No.:
- H3DS-FLC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Supply Voltage | 24 → 230 V ac, 24 → 48V dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Flicker-OFF/Flicker-ON Start | |
| Time Range | 0.1 s → 120h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 48 V dc, 230V ac | |
| Terminal Type | Screw | |
| Switch Configuration | SPDT | |
| Power Supply | Internal | |
| Width | 80mm | |
| Minimum Voltage | 24V ac/dc | |
| Depth | 74mm | |
| Minimum Current | 0.1A | |
| Length | 17.5mm | |
| Maximum Operating Temperature | +55°C | |
| Series | H3DS | |
| Minimum Operating Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Supply Voltage 24 → 230 V ac, 24 → 48V dc | ||
Mounting Type DIN Rail | ||
Mode of Operation Flicker-OFF/Flicker-ON Start | ||
Time Range 0.1 s → 120h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 48 V dc, 230V ac | ||
Terminal Type Screw | ||
Switch Configuration SPDT | ||
Power Supply Internal | ||
Width 80mm | ||
Minimum Voltage 24V ac/dc | ||
Depth 74mm | ||
Minimum Current 0.1A | ||
Length 17.5mm | ||
Maximum Operating Temperature +55°C | ||
Series H3DS | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- ID
Analog Set Multi-function, Ultra-Slim17.5 mm Timers for Track Mounting
Wide AC/DC power supply range (24 to 230 VAC/24 to 48 VDC) minimizes inventory
Smart Dial/Selector-Locking Mechanism prevents the dials and selectors on the timer’s front panel from being operated without authorization (lock can only be unlocked and locked with an optional pen-type Lock Key)
Eight operating modes (H3DS-M) and four operating modes (H3DS-S) to cover a wide range of applications
Offers wide time setting range of 0.10 s to 120 h
Finger protection terminal block prevents shock
High immunity to inverter noise
Smart Dial/Selector-Locking Mechanism prevents the dials and selectors on the timer’s front panel from being operated without authorization (lock can only be unlocked and locked with an optional pen-type Lock Key)
Eight operating modes (H3DS-M) and four operating modes (H3DS-S) to cover a wide range of applications
Offers wide time setting range of 0.10 s to 120 h
Finger protection terminal block prevents shock
High immunity to inverter noise
