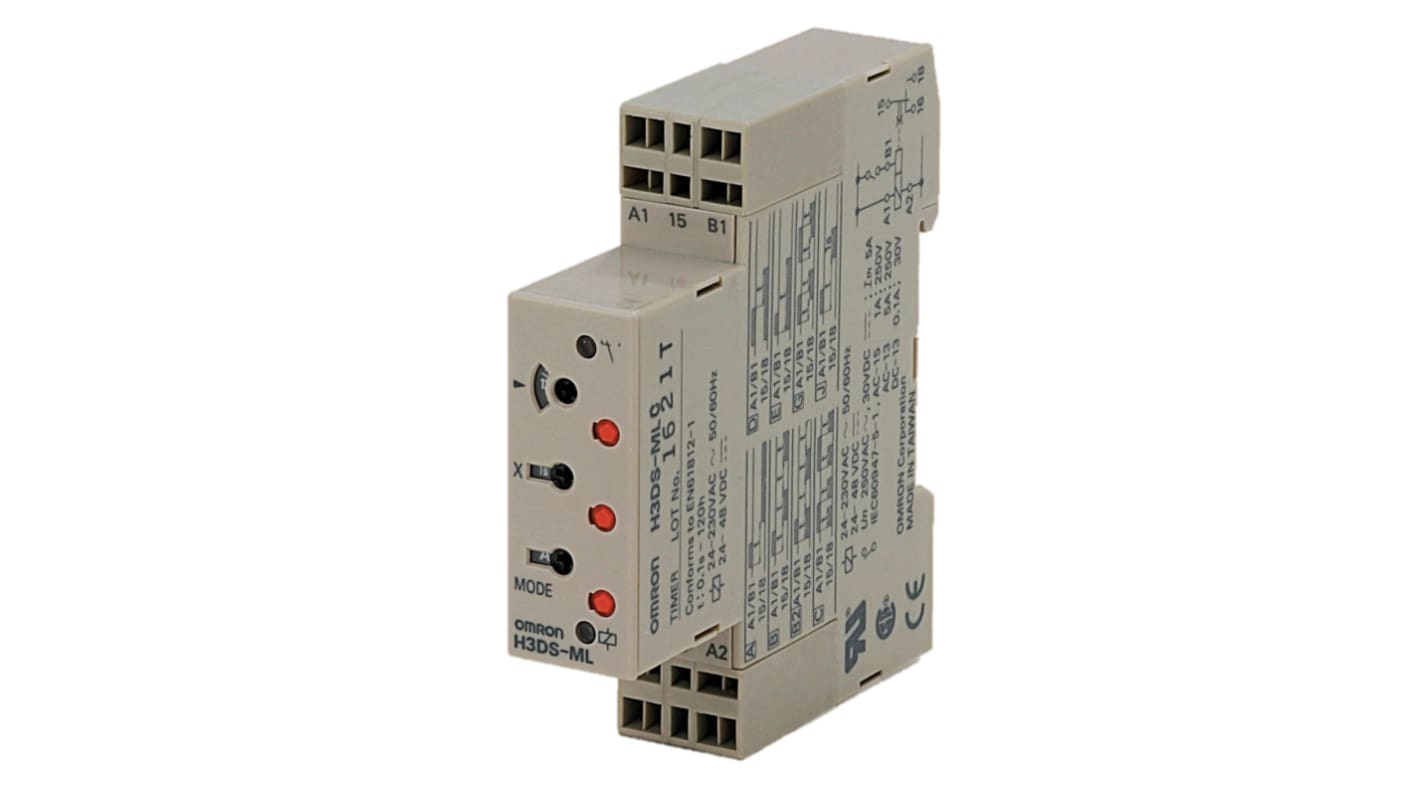

Omron H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 2-Contact, 0.1 s → 120h,
- RS Stock No.:
- 177-0076
- Mfr. Part No.:
- H3DS-MLC
- Brand:
- Omron
Subtotal (1 unit)*
£59.69
(exc. VAT)
£71.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 7 unit(s) shipping from 13 November 2025
- Plus 8 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.69 |
*price indicative
- RS Stock No.:
- 177-0076
- Mfr. Part No.:
- H3DS-MLC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Supply Voltage | 24 → 230 V ac, 24 → 48V dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | ON/OFF Delay | |
| Time Range | 0.1 s → 120h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 48 V dc, 230V ac | |
| Switch Configuration | SPDT | |
| Terminal Type | Push In | |
| Width | 80mm | |
| Power Supply | Internal | |
| Minimum Voltage | 24V ac/dc | |
| Minimum Current | 0.1A | |
| Length | 17.5mm | |
| Depth | 74mm | |
| Maximum Operating Temperature | +55°C | |
| Series | H3DS | |
| Contact Material | Ag Alloy | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Supply Voltage 24 → 230 V ac, 24 → 48V dc | ||
Mounting Type DIN Rail | ||
Mode of Operation ON/OFF Delay | ||
Time Range 0.1 s → 120h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 48 V dc, 230V ac | ||
Switch Configuration SPDT | ||
Terminal Type Push In | ||
Width 80mm | ||
Power Supply Internal | ||
Minimum Voltage 24V ac/dc | ||
Minimum Current 0.1A | ||
Length 17.5mm | ||
Depth 74mm | ||
Maximum Operating Temperature +55°C | ||
Series H3DS | ||
Contact Material Ag Alloy | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- ID
Omron H3DS Series Timer Relay, SPDT Contact Configuration, 0.1s to 120h Time Range - H3DS-MLC
This timer relay is engineered for precise timing control in various automated processes. With supply voltage options ranging from 24V to 230V AC and 24V to 48V DC, it caters to a broad array of industrial applications. It supports ON/OFF delay operations, making it essential for effective machinery and automation.
Features & Benefits
• Multi-function capabilities enhance operational flexibility
• SPDT configuration ensures effective switching performance
• Push In terminal design simplifies installation
• Maximum current rating of 5A suits various applications
• SPDT configuration ensures effective switching performance
• Push In terminal design simplifies installation
• Maximum current rating of 5A suits various applications
Applications
• Controls industrial machinery with delay intervals
• Suitable for time-based control in automation systems
• Ideal for sequential operations in electronic devices
• Utilised in HVAC systems for timed fan operations
• Suitable for time-based control in automation systems
• Ideal for sequential operations in electronic devices
• Utilised in HVAC systems for timed fan operations
How can the time range be adjusted for specific needs?
Adjustments can be made between 0.1 seconds and 120 hours.
Is this timer relay suitable for DIN rail mounting?
Yes, it is designed for easy installation on DIN rail systems.
What types of terminals does it feature for connections?
It has Push In terminals, ensuring straightforward wiring.
Can it function effectively in extreme temperatures?
Yes, it operates reliably within a temperature range of -10°C to +55°C.
