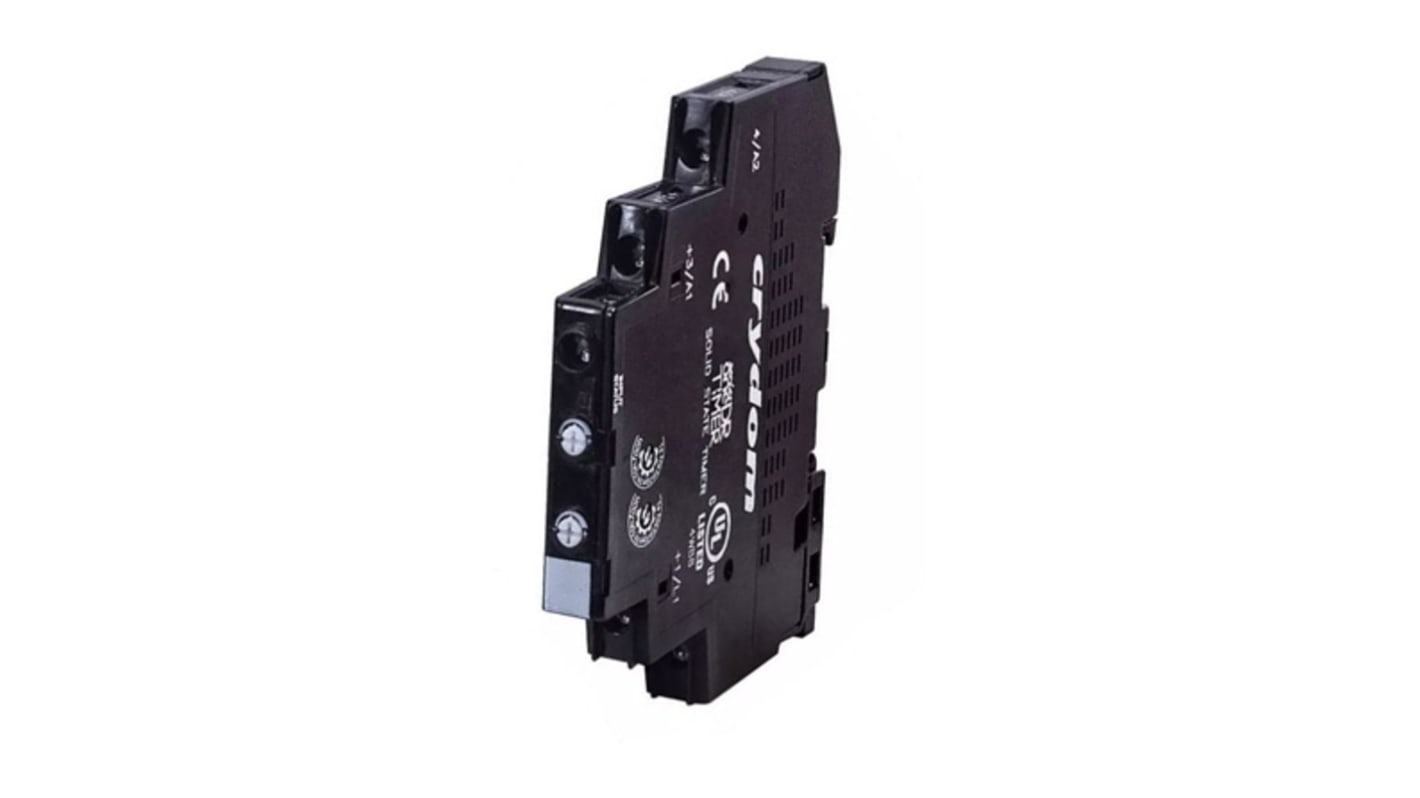

Sensata Crydom SeriesOneDR Series DIN Rail Mount Timer Relay, 180 → 240V ac/dc, 2-Contact, 0.1 s → 100h,
- RS Stock No.:
- 144-5931
- Mfr. Part No.:
- DRTA24A06
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£68.94
(exc. VAT)
£82.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 41 unit(s) ready to ship
- Plus 999,999,958 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £68.94 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£68.94
(exc. VAT)
£82.73
(inc. VAT)
- RS Stock No.:
- 144-5931
- Mfr. Part No.:
- DRTA24A06
- Brand:
- Sensata / Crydom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Supply Voltage | 180 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Delay ON Make | |
| Time Range | 0.1 s → 100h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Single | |
| Contact Configuration | SPST | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 6A | |
| Maximum Voltage | 240V ac/dc | |
| Switch Configuration | Solid State | |
| Terminal Type | Screw | |
| Minimum Voltage | 180V ac/dc | |
| Width | 11mm | |
| Power Supply | External | |
| Length | 87.7mm | |
| Maximum Operating Temperature | +80°C | |
| Depth | 83mm | |
| Minimum Current | 150mA | |
| Series | SeriesOneDR | |
| Time Delay | 100ms | |
| Minimum Operating Temperature | -30°C | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Supply Voltage 180 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation Delay ON Make | ||
Time Range 0.1 s → 100h | ||
Number of Contacts 2 | ||
Number of Timer Functions Single | ||
Contact Configuration SPST | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 6A | ||
Maximum Voltage 240V ac/dc | ||
Switch Configuration Solid State | ||
Terminal Type Screw | ||
Minimum Voltage 180V ac/dc | ||
Width 11mm | ||
Power Supply External | ||
Length 87.7mm | ||
Maximum Operating Temperature +80°C | ||
Depth 83mm | ||
Minimum Current 150mA | ||
Series SeriesOneDR | ||
Time Delay 100ms | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- MX
Crydom SeriesOne DR Solid State Timers
Crydom SeriesOne DR DIN Rail-mounted solid state relay timers with AC or DC output voltage. The solid-state timers are available in a variety of industry standard timing functions and various input and output voltage options.
Features and Benefits
Single channel 6 A output power rating
Compact size (11 mm wide)
8 industry standard functions available
IP20 housing with unique integrated heat sink design
LED status indicator
Solid-State Time Delay Relays
