Sensata / Crydom OneDR Series DIN Rail Timer Relay, 2-Contact, 180 to 280 V dc 12V ac, 24 V ac, 0.1 s to 100 h,
- RS Stock No.:
- 144-5920
- Mfr. Part No.:
- DRTA06D06
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£73.26
(exc. VAT)
£87.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.26 |
*price indicative
- RS Stock No.:
- 144-5920
- Mfr. Part No.:
- DRTA06D06
- Brand:
- Sensata / Crydom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End, Multifunction | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 2 | |
| Switching Voltage | 24, 280V ac | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPST | |
| Supply AC Voltage | 12, 24V ac | |
| Minimum Operating Temperature | -30°C | |
| Supply DC Voltage | 180 to 280 V dc | |
| Contact Current | 6A | |
| Maximum Operating Temperature | 80°C | |
| Terminal Type | Screw | |
| Length | 87.7mm | |
| Height | 83mm | |
| Standards/Approvals | IEC 61000-4-5, IEC 62314, IEC 60068-2-27, UL Listed, RoHS, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4 | |
| Width | 11mm | |
| Series | OneDR | |
| Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Product Type Timer Relay | ||
Function Offset Double Ring End, Multifunction | ||
Mount Type DIN Rail | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 2 | ||
Switching Voltage 24, 280V ac | ||
Number of Timer Functions 1 | ||
Contact Configuration SPST | ||
Supply AC Voltage 12, 24V ac | ||
Minimum Operating Temperature -30°C | ||
Supply DC Voltage 180 to 280 V dc | ||
Contact Current 6A | ||
Maximum Operating Temperature 80°C | ||
Terminal Type Screw | ||
Length 87.7mm | ||
Height 83mm | ||
Standards/Approvals IEC 61000-4-5, IEC 62314, IEC 60068-2-27, UL Listed, RoHS, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4 | ||
Width 11mm | ||
Series OneDR | ||
- COO (Country of Origin):
- MX

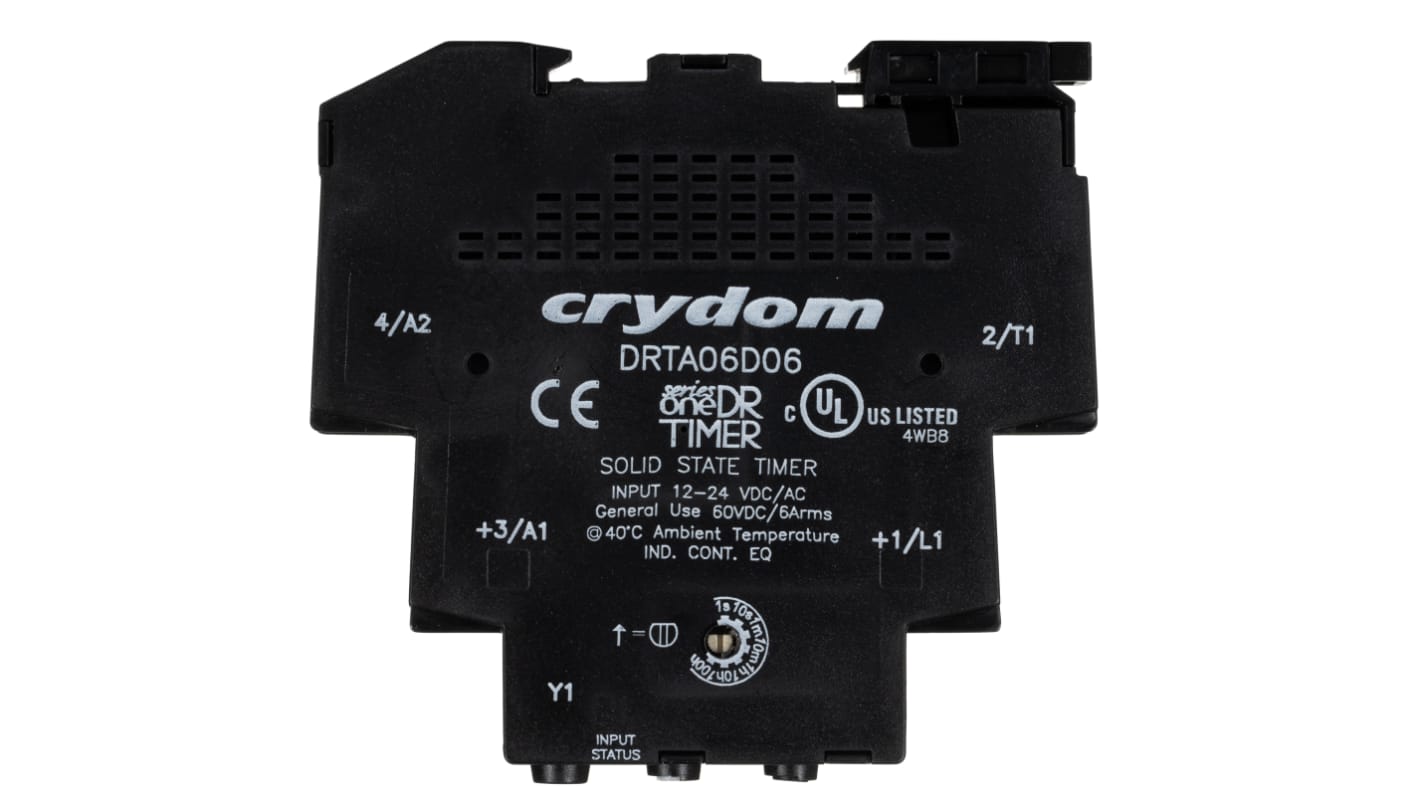

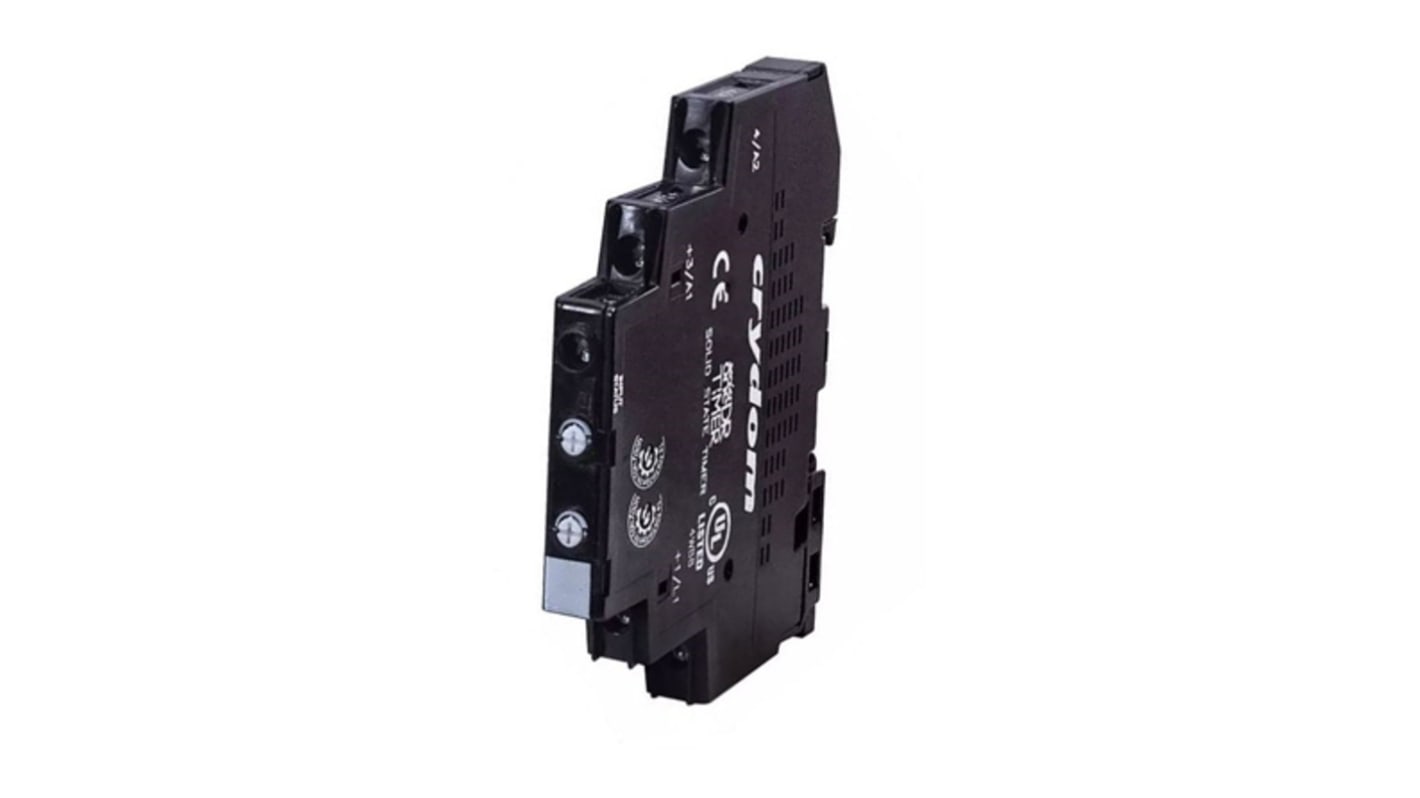

Sensata | Crydom Timer Relay, 60V DC Operating Voltage, Screw Terminals - DRT Series - DRTA06D06
Get your automated equipment running like clockwork using this timer relay from Sensata | Crydom. As you can set it to activate and deactivate at specific times, it makes it a cinch to automate the power supply to your devices. Thanks to its handy green LED indicator, you can determine its status at a glance. For protection against electric shock, the unit is insulated. An on-delay timer like this one is suitable for use in industrial and commercial lighting and heating systems. It's also a practical choice for motion and power control applications, like robotic assembly lines.
Features & Benefits
• Housing stops burning in 10 seconds or less for safety in the event of a fire
• Screw terminals for simple wiring using only a screwdriver
• Light weight of 50g puts minimal strain on your PCB
• Rated load current of 6A for use in low-power systems
Is this a solid-state timer relay?
Yes, this component has a solid-state design, which means there are no moving parts. This reduces the risk of wear for a long service life.
