Schneider Electric Harmony XB5 Series Panel Timer Relay, 24 V dc 24V ac, 3 to 60 s, 1-Function
- RS Stock No.:
- 134-5387
- Mfr. Part No.:
- XB5DTB23
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£78.36
(exc. VAT)
£94.03
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.36 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 134-5387
- Mfr. Part No.:
- XB5DTB23
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End | |
| Mount Type | Panel | |
| Time Range | 3 to 60 s | |
| Number of Timer Functions | 1 | |
| IP Rating | IP65, IP20 | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 24 V dc | |
| Supply AC Voltage | 24V ac | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Length | 62mm | |
| Width | 90mm | |
| Height | 62mm | |
| Standards/Approvals | UL Listed, CE, EN/IEC 61812-1, UL 508 | |
| Series | Harmony XB5 | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Timer Relay | ||
Function Offset Double Ring End | ||
Mount Type Panel | ||
Time Range 3 to 60 s | ||
Number of Timer Functions 1 | ||
IP Rating IP65, IP20 | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 24 V dc | ||
Supply AC Voltage 24V ac | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Length 62mm | ||
Width 90mm | ||
Height 62mm | ||
Standards/Approvals UL Listed, CE, EN/IEC 61812-1, UL 508 | ||
Series Harmony XB5 | ||
Better World Product Yes | ||

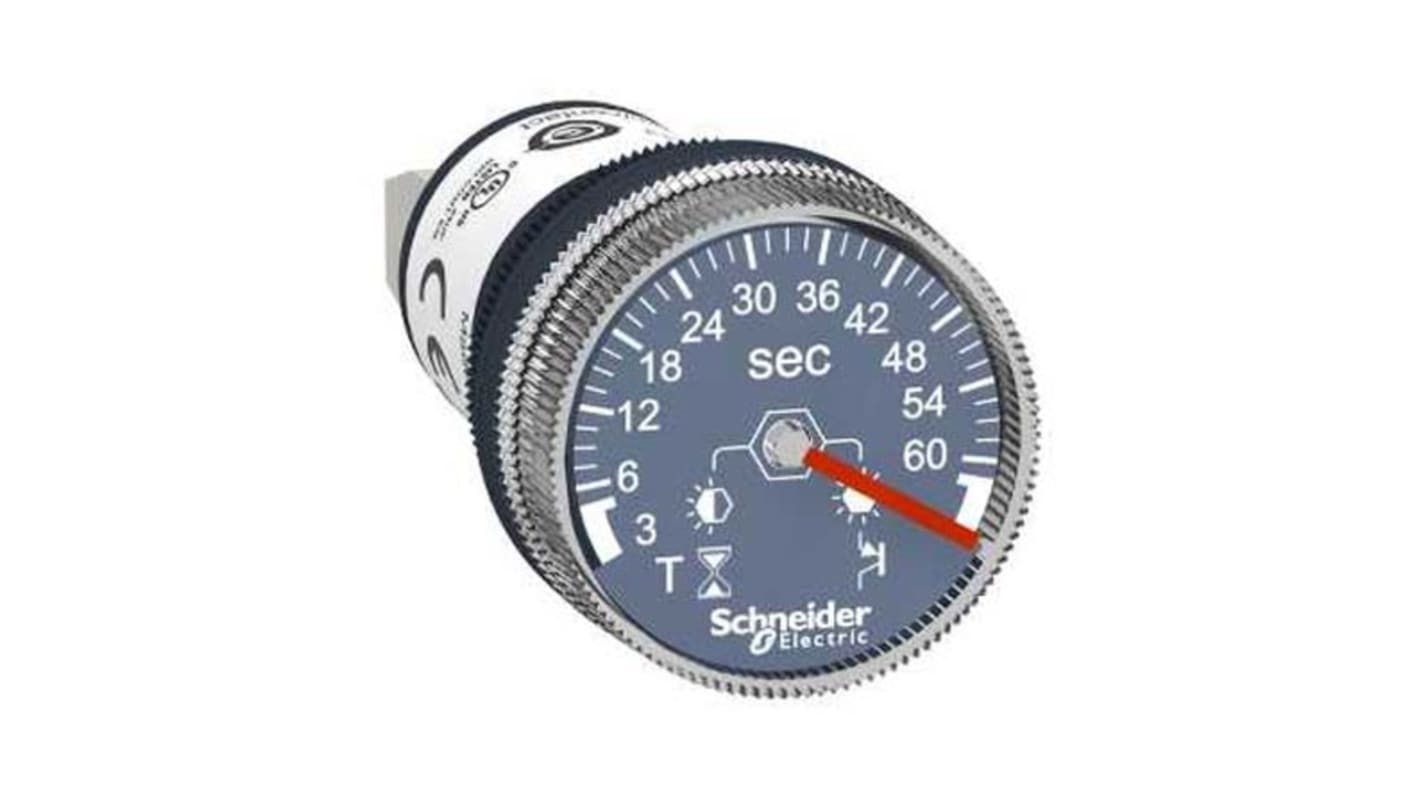

Schneider Electric XB5DTB23
This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 seconds and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.
XB5 Panel Mount Timers
Schneider Electric XB5 series panel mount on delay timers. The XB5 timers range feature a 22.5 mm mounting hole, a single static output and are available with various time ranges.
22.5 mm Mounting Hole
LED indicator
Screw terminals
