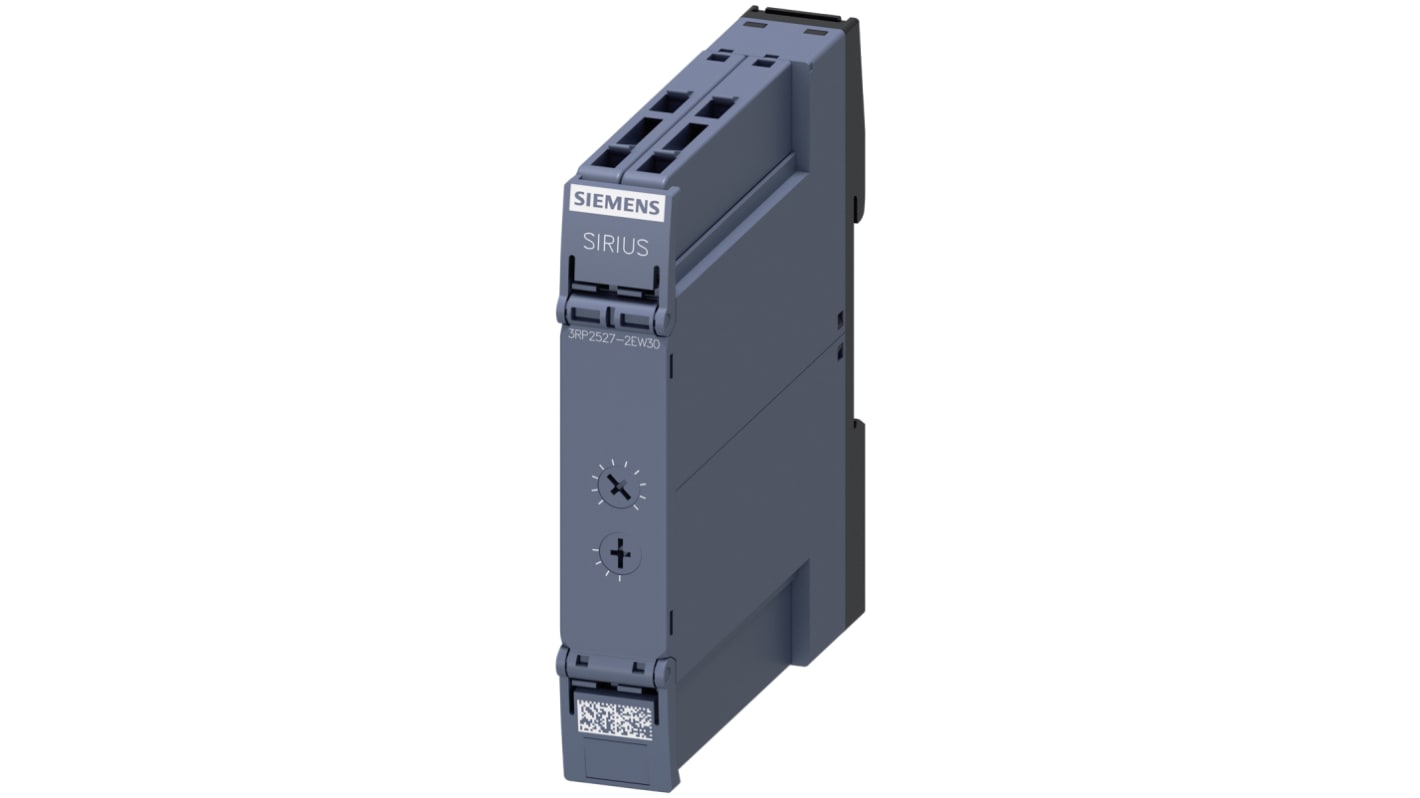

Siemens 3RP25 Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 1-Contact, 0.05 → 240s, 1-Function, SPST
- RS Stock No.:
- 124-9409
- Mfr. Part No.:
- 3RP2527-2EW30
- Brand:
- Siemens
Subtotal (1 unit)*
£54.43
(exc. VAT)
£65.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £54.43 |
*price indicative
- RS Stock No.:
- 124-9409
- Mfr. Part No.:
- 3RP2527-2EW30
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Supply Voltage | 12 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | ON Delay | |
| Time Range | 0.05 → 240s | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Single | |
| Contact Configuration | SPST | |
| Time Increment | Seconds | |
| Maximum Current | 0.6A | |
| Maximum Voltage | 240V ac/dc | |
| Terminal Type | Push In | |
| Minimum Voltage | 12V ac/dc | |
| Power Supply | External | |
| Width | 91.6mm | |
| Maximum Operating Temperature | +60°C | |
| Length | 17.5mm | |
| Minimum Current | 0.01A | |
| Series | 3RP25 | |
| Depth | 100mm | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Supply Voltage 12 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation ON Delay | ||
Time Range 0.05 → 240s | ||
Number of Contacts 1 | ||
Number of Timer Functions Single | ||
Contact Configuration SPST | ||
Time Increment Seconds | ||
Maximum Current 0.6A | ||
Maximum Voltage 240V ac/dc | ||
Terminal Type Push In | ||
Minimum Voltage 12V ac/dc | ||
Power Supply External | ||
Width 91.6mm | ||
Maximum Operating Temperature +60°C | ||
Length 17.5mm | ||
Minimum Current 0.01A | ||
Series 3RP25 | ||
Depth 100mm | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DE
SIRIUS 3RP25 - Multifunction Timer Relay
Timing relay SIRIUS 3RP25, 27 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labelled cover caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The scope of supply already includes adhesive films for marking of functions.
The 3RP25 timing relays replace the well-proven 3RP15 series.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labelled cover caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The scope of supply already includes adhesive films for marking of functions.
The 3RP25 timing relays replace the well-proven 3RP15 series.
Features and Benefits:
- Multifunction time relay
- LED indicator
- Screw-type or spring-loaded terminals
- Time range selector switch on the front
- DIN rail mounting
