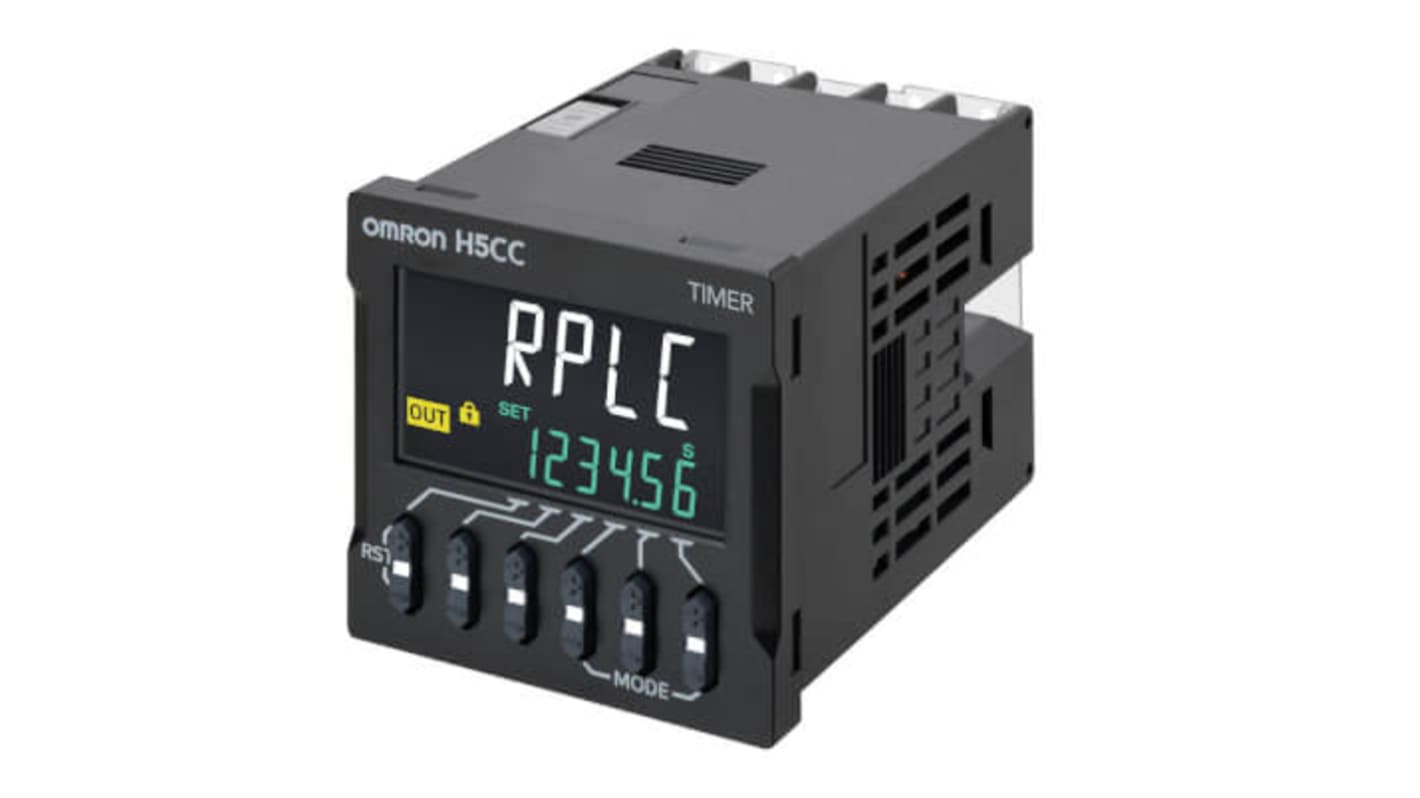

Omron H5CC Series Flush Timer Relay, 1-Contact, 12 to 48 V dc 12V ac, 48 V ac, 0.001 s to 999999h h, 2-Function
- RS Stock No.:
- 402-691
- Mfr. Part No.:
- H5CC-AUD
- Brand:
- Omron
Subtotal (1 unit)*
£202.40
(exc. VAT)
£242.88
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £202.40 |
*price indicative
- RS Stock No.:
- 402-691
- Mfr. Part No.:
- H5CC-AUD
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Timer Relay | |
| Mount Type | Flush | |
| Function | Multifunction | |
| Time Range | 0.001 s to 999999h h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 2 | |
| Switching Voltage | 250V ac | |
| IP Rating | IP66 | |
| Contact Current | 5A | |
| Supply DC Voltage | 12 to 48 V dc | |
| Timing Adjustment | Polar | |
| Supply AC Voltage | 12, 48V ac | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Height | 48mm | |
| Length | 59mm | |
| Width | 48mm | |
| Standards/Approvals | UKCA, CCC GB/T 14048.5, EN61812-1, VDE0106/P100, cULus (or cURus) UL508/CSA C22.2 No. 14, RCM | |
| Series | H5CC | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Timer Relay | ||
Mount Type Flush | ||
Function Multifunction | ||
Time Range 0.001 s to 999999h h | ||
Number of Contacts 1 | ||
Number of Timer Functions 2 | ||
Switching Voltage 250V ac | ||
IP Rating IP66 | ||
Contact Current 5A | ||
Supply DC Voltage 12 to 48 V dc | ||
Timing Adjustment Polar | ||
Supply AC Voltage 12, 48V ac | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Height 48mm | ||
Length 59mm | ||
Width 48mm | ||
Standards/Approvals UKCA, CCC GB/T 14048.5, EN61812-1, VDE0106/P100, cULus (or cURus) UL508/CSA C22.2 No. 14, RCM | ||
Series H5CC | ||
- COO (Country of Origin):
- CN
Omron H5CC Series Timer Relay, 0.001s to 999999h Time Range, 5A Contact Current - H5CC-AUD
This timer relay provides configurable timing functions for control systems in industrial environments, offering selectable contact arrangements and multiple supply-voltage options to handle varied automation tasks. It is designed for flush mounting and suits applications where a robust timing device with a wide operating temperature range is required.
Features and Benefits:
• Single-contact output supports straightforward switching up to 5 A
• Multifunction timing covers two selectable timer behaviours
• Wide supply range accepts 12-48V DC and 12V/48V AC inputs
• Time setting spans 0.001 s to 999,999 h for fine control
• Screw terminals enable secure field-wiring connections
• Polar adjustment allows precise tuning of timing intervals
• Multifunction timing covers two selectable timer behaviours
• Wide supply range accepts 12-48V DC and 12V/48V AC inputs
• Time setting spans 0.001 s to 999,999 h for fine control
• Screw terminals enable secure field-wiring connections
• Polar adjustment allows precise tuning of timing intervals
Applications
• Suitable for sequenced machinery start-stop control in factories
• Ideal for delay functions in conveyor and material-handling systems
• Used for automated lighting and signalling timing on industrial sites
• Can be used for process-control timing in electrical panels
• Used with motor-control circuits requiring SPDT or SPST switching
• Ideal for delay functions in conveyor and material-handling systems
• Used for automated lighting and signalling timing on industrial sites
• Can be used for process-control timing in electrical panels
• Used with motor-control circuits requiring SPDT or SPST switching
What contact arrangements are available and how do they affect use?
You can choose between SPDT and SPST contact formats to match control logic
SPDT permits changeover switching while SPST provides single-circuit make-or-break control.
How does the unit cope with harsh or wet environments?
The enclosure is rated to IP66, allowing protection against dust ingress and powerful water jets, making it suitable for washdown or exposed locations.
What Terminal and mounting provisions ease installation?
Connections are MADE via screw terminals for robust conductor retention, and the device is intended for flush-panel mounting to save panel depth.
What electrical limits should installers observe for safe operation?
The relay switches up to 250 VAC and carries contact currents up to 5 A
observe these limits when specifying loads and protective devices.
