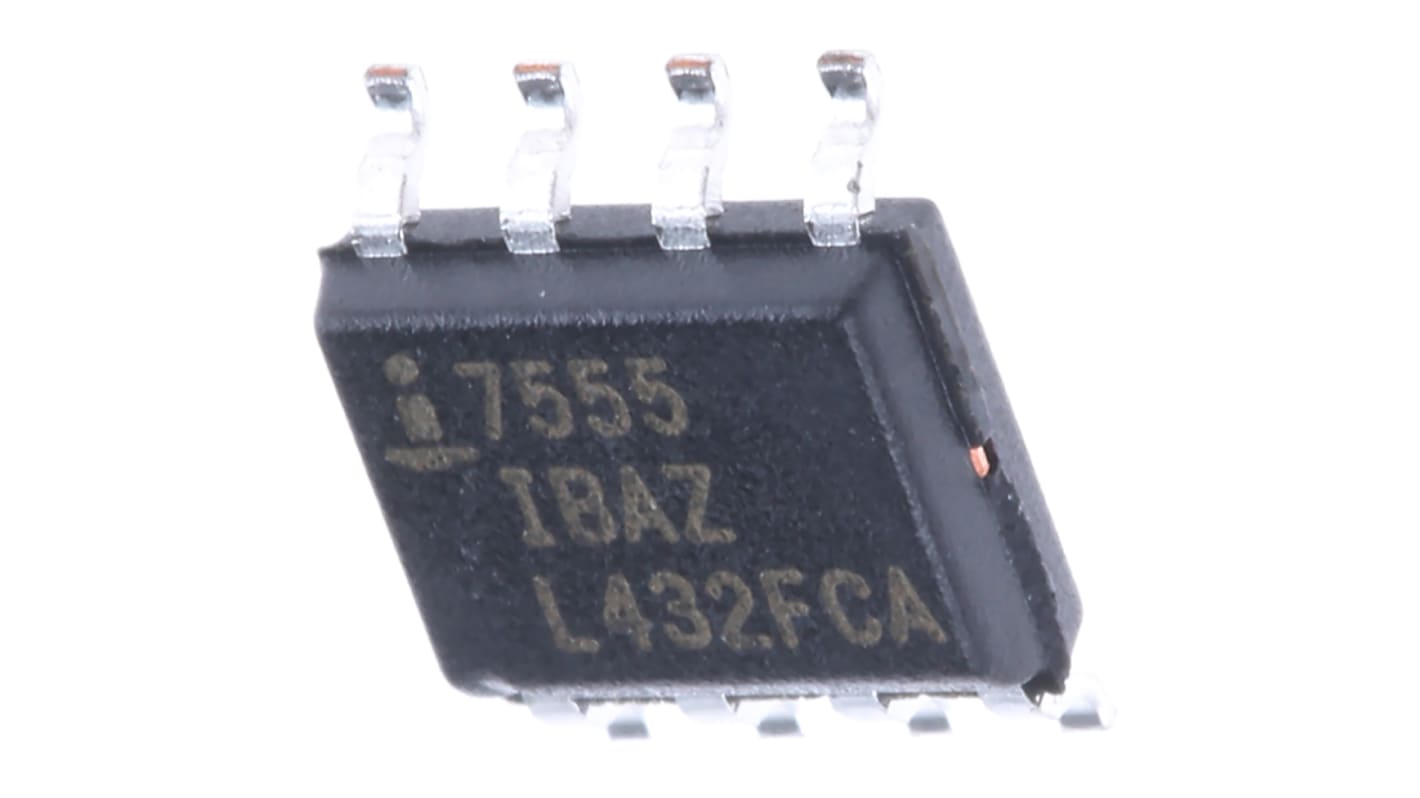

Renesas Electronics ICM7555IBAZ, General Purpose Timer 1MHz, 8-Pin SOIC
- RS Stock No.:
- 496-886
- Mfr. Part No.:
- ICM7555IBAZ
- Brand:
- Renesas Electronics
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 25)
£16.80
(exc. VAT)
£20.16
(inc. VAT)
- RS Stock No.:
- 496-886
- Mfr. Part No.:
- ICM7555IBAZ
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Mounting Type | Surface Mount | |
| Timer Type | Standard | |
| Package Type | SOIC | |
| Number of Internal Timers | 1 | |
| Pin Count | 8 | |
| Maximum Input Frequency | 1MHz | |
| Minimum Operating Supply Voltage | 2 V | |
| Maximum Operating Supply Voltage | 18 V | |
| Minimum Operating Temperature | -25 °C | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Low Level Output Current | 20mA | |
| Maximum High Level Output Current | -0.8mA | |
| Dimensions | 5 x 4 x 1.5mm | |
| Height | 1.5mm | |
| Length | 5mm | |
| Width | 4mm | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Mounting Type Surface Mount | ||
Timer Type Standard | ||
Package Type SOIC | ||
Number of Internal Timers 1 | ||
Pin Count 8 | ||
Maximum Input Frequency 1MHz | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Supply Voltage 18 V | ||
Minimum Operating Temperature -25 °C | ||
Maximum Operating Temperature +85 °C | ||
Maximum Low Level Output Current 20mA | ||
Maximum High Level Output Current -0.8mA | ||
Dimensions 5 x 4 x 1.5mm | ||
Height 1.5mm | ||
Length 5mm | ||
Width 4mm | ||
555 Timer, Intersil
Intersil offers the 555 timer, a highly stable controller capable of producing accurate timing pulses. With monostable operation, you control the time delay by one external resistor and one capacitor. With a stable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.
Timing From Microseconds to Days
ICM7242 is a Long Range Fixed Timer
