Megger TDR500/3 Time Domain Reflectometers, 5000m
- RS Stock No.:
- 764-2834
- Mfr. Part No.:
- 1002-227
- Brand:
- Megger
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£875.00
(exc. VAT)
£1,050.00
(inc. VAT)
- RS Stock No.:
- 764-2834
- Mfr. Part No.:
- 1002-227
- Brand:
- Megger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Megger | |
| Best Accuracy | ±1 % | |
| Maximum Range | 5000m | |
| Resolution | 1 % | |
| Cable Type | Paired Metallic Cable | |
| Maximum Pulse Width | 2ns | |
| Minimum Pulse Width | 4000ns | |
| Pulse Amplitude | 5V Pk-Pk | |
| Output Impedance | 25 Ω, 50 Ω, 75 Ω, 100Ω | |
| Velocity Factor/Propagation Velocity | 0.99 | |
| Battery Life | 14 h | |
| Battery Type | AA | |
| Display Type | LCD | |
| Power Source | Battery | |
| Length | 115mm | |
| Minimum Operating Temperature | 15°C | |
| Height | 230mm | |
| Width | 48mm | |
| Maximum Operating Temperature | +50°C | |
| Weight | 600g | |
| Model Number p | TDR500/3 | |
| Select all | ||
|---|---|---|
Brand Megger | ||
Best Accuracy ±1 % | ||
Maximum Range 5000m | ||
Resolution 1 % | ||
Cable Type Paired Metallic Cable | ||
Maximum Pulse Width 2ns | ||
Minimum Pulse Width 4000ns | ||
Pulse Amplitude 5V Pk-Pk | ||
Output Impedance 25 Ω, 50 Ω, 75 Ω, 100Ω | ||
Velocity Factor/Propagation Velocity 0.99 | ||
Battery Life 14 h | ||
Battery Type AA | ||
Display Type LCD | ||
Power Source Battery | ||
Length 115mm | ||
Minimum Operating Temperature 15°C | ||
Height 230mm | ||
Width 48mm | ||
Maximum Operating Temperature +50°C | ||
Weight 600g | ||
Model Number p TDR500/3 | ||
- COO (Country of Origin):
- GB

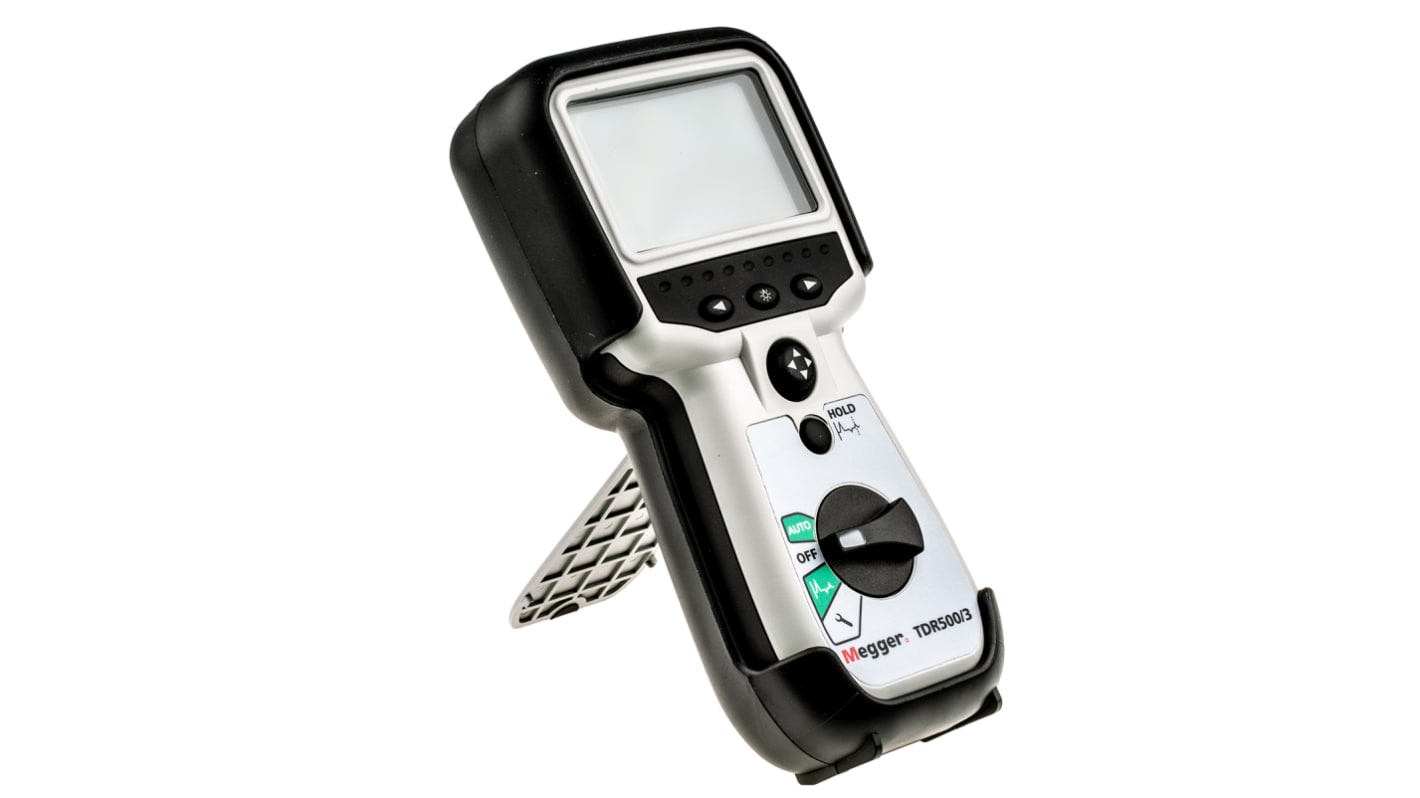

Megger TDR 500/3 Cable Fault Locator
The Megger TDR 500/3 cable fault locator has a minimum resolution of 0.1m/0.3ft and a 5km/15kft maximum range, depending on the velocity factor selected and cable type. An auto selection option ensures that the most effective parameters are selected depending on the range required, aiding rapid diagnosis of the TDR trace. It is a handheld, compact time domain reflectometer for locating faults on metallic cables.
Supplied with:
Hard carry case, miniature clip test lead set and user guide CD
Supplied with:
Hard carry case, miniature clip test lead set and user guide CD
Features and Benefits
Single cursor allows instant measurement of the distance to the fault
Auto set up for instant use
Ultra-fast pulse for near end fault identification
Trace hold
Designed for use on all metallic cable pairs
Backlit graphics monochrome LCD (256 x 128)
Adjustable display contrast
Resolution to 0.1m
For use on telecom TNV-3 circuits
Power blocking filter is not required
Auto selected output impedance (between 25ohm, 50ohm, 75ohm and 100ohm)
2ns pulse for near end fault location
Auto option selecting gain and pulse for each range
Display distance in metres or feet
Uses five AA (LR6) primary cells
Operating temperature ranges between15°C and 50°C
Auto set up for instant use
Ultra-fast pulse for near end fault identification
Trace hold
Designed for use on all metallic cable pairs
Backlit graphics monochrome LCD (256 x 128)
Adjustable display contrast
Resolution to 0.1m
For use on telecom TNV-3 circuits
Power blocking filter is not required
Auto selected output impedance (between 25ohm, 50ohm, 75ohm and 100ohm)
2ns pulse for near end fault location
Auto option selecting gain and pulse for each range
Display distance in metres or feet
Uses five AA (LR6) primary cells
Operating temperature ranges between15°C and 50°C
Applications
Residential sites
Industries
Industries
Certifications
IP54 rated
IEC61010-1
BSEN 61326-1
150V CAT IV safety rated
IEC61010-1
BSEN 61326-1
150V CAT IV safety rated
