Littelfuse S6016R, Thyristor 600V, 16A 30mA
- RS Stock No.:
- 878-1836
- Mfr. Part No.:
- S6016R
- Brand:
- Littelfuse
Bulk discount available
Subtotal (1 pack of 10 units)*
£16.23
(exc. VAT)
£19.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.623 | £16.23 |
| 50 - 90 | £1.355 | £13.55 |
| 100 - 190 | £1.296 | £12.96 |
| 200 + | £1.264 | £12.64 |
*price indicative
- RS Stock No.:
- 878-1836
- Mfr. Part No.:
- S6016R
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Rated Average On-State Current | 16A | |
| Thyristor Type | SCR | |
| Package Type | TO-220 | |
| Repetitive Peak Reverse Voltage | 600V | |
| Surge Current Rating | 225A | |
| Mounting Type | Through Hole | |
| Maximum Gate Trigger Current | 30mA | |
| Maximum Gate Trigger Voltage | 1.5V | |
| Maximum Holding Current | 40mA | |
| Pin Count | 3 | |
| Dimensions | 10.67 x 4.78 x 15.75mm | |
| Repetitive Peak Off-State Current | 1000µA | |
| Maximum Operating Temperature | +125 °C | |
| Off-State Voltage | 600V | |
| Peak On-State Voltage | 1.6V | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Rated Average On-State Current 16A | ||
Thyristor Type SCR | ||
Package Type TO-220 | ||
Repetitive Peak Reverse Voltage 600V | ||
Surge Current Rating 225A | ||
Mounting Type Through Hole | ||
Maximum Gate Trigger Current 30mA | ||
Maximum Gate Trigger Voltage 1.5V | ||
Maximum Holding Current 40mA | ||
Pin Count 3 | ||
Dimensions 10.67 x 4.78 x 15.75mm | ||
Repetitive Peak Off-State Current 1000µA | ||
Maximum Operating Temperature +125 °C | ||
Off-State Voltage 600V | ||
Peak On-State Voltage 1.6V | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- MX

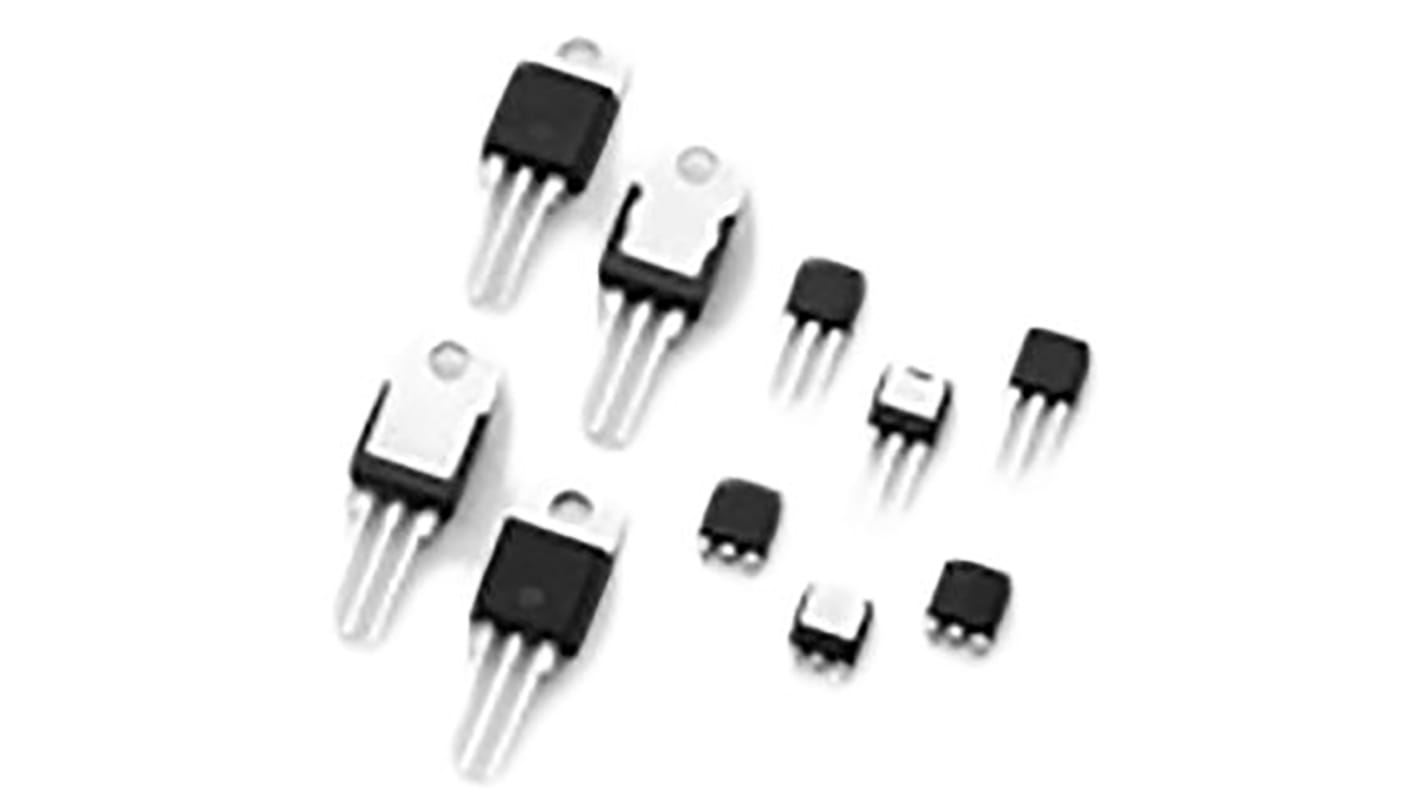

Phase Control Thyristors, Littelfuse
Excellent uni-directional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microamperes of current. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential.
Thyristors - Littelfuse
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
