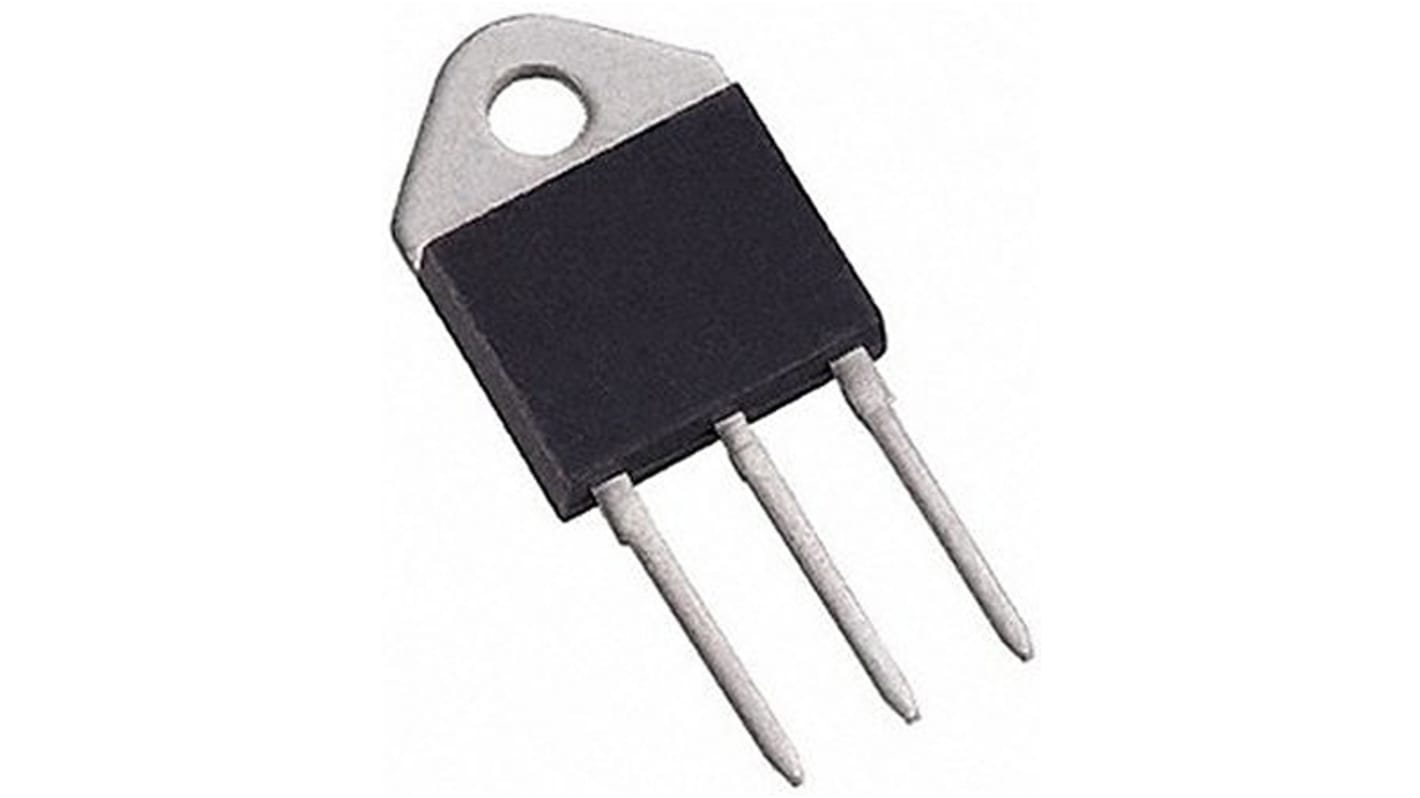

Littelfuse S8035KTP, Thyristor 800V, 35A
- RS Stock No.:
- 878-1631
- Mfr. Part No.:
- S8035KTP
- Brand:
- Littelfuse
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 878-1631
- Mfr. Part No.:
- S8035KTP
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Rated Average On-State Current | 35A | |
| Thyristor Type | SCR | |
| Package Type | TO-218AC | |
| Repetitive Peak Reverse Voltage | 800V | |
| Surge Current Rating | 500A | |
| Mounting Type | Through Hole | |
| Maximum Gate Trigger Voltage | 1.5V | |
| Maximum Holding Current | 50mA | |
| Pin Count | 3 | |
| Dimensions | 16 x 4.78 x 21.21mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Off-State Voltage | 800V | |
| Peak On-State Voltage | 1.8V | |
| Repetitive Peak Off-State Current | 3000µA | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Rated Average On-State Current 35A | ||
Thyristor Type SCR | ||
Package Type TO-218AC | ||
Repetitive Peak Reverse Voltage 800V | ||
Surge Current Rating 500A | ||
Mounting Type Through Hole | ||
Maximum Gate Trigger Voltage 1.5V | ||
Maximum Holding Current 50mA | ||
Pin Count 3 | ||
Dimensions 16 x 4.78 x 21.21mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Off-State Voltage 800V | ||
Peak On-State Voltage 1.8V | ||
Repetitive Peak Off-State Current 3000µA | ||
- COO (Country of Origin):
- MX
Phase Control Thyristors, Littelfuse
Excellent uni-directional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microamperes of current. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential.
Thyristors - Littelfuse
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
