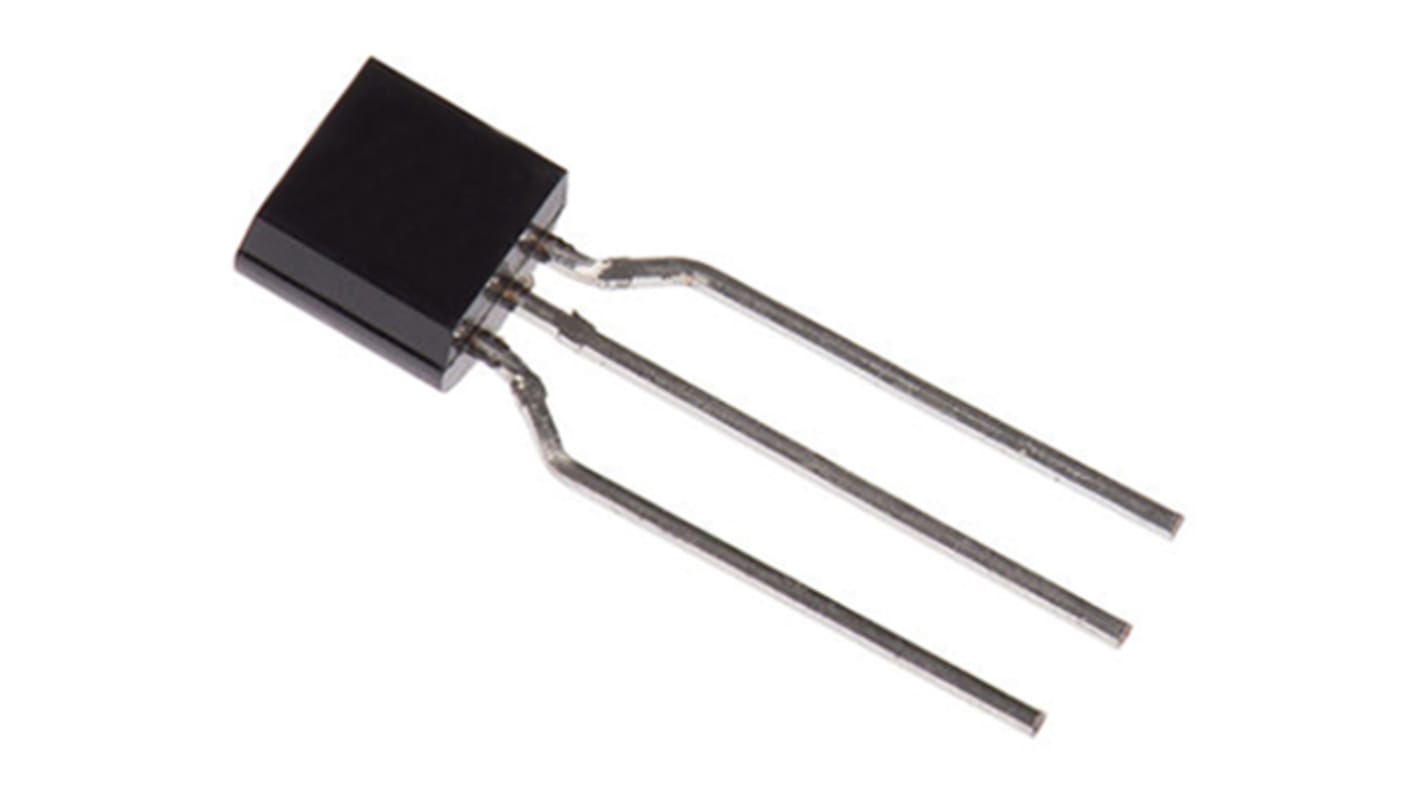

STMicroelectronics P0102DA 5AL3, Thyristor 400V, 0.5A 0.2mA
- RS Stock No.:
- 687-0993
- Mfr. Part No.:
- P0102DA 5AL3
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 687-0993
- Mfr. Part No.:
- P0102DA 5AL3
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Rated Average On-State Current | 0.5A | |
| Thyristor Type | SCR | |
| Package Type | TO-92 | |
| Repetitive Peak Reverse Voltage | 400V | |
| Surge Current Rating | 8A | |
| Mounting Type | Through Hole | |
| Maximum Gate Trigger Current | 0.2mA | |
| Maximum Gate Trigger Voltage | 0.8V | |
| Maximum Holding Current | 5mA | |
| Pin Count | 3 | |
| Dimensions | 4.7 x 3.7 x 4.4mm | |
| Peak On-State Voltage | 1.95V | |
| Minimum Operating Temperature | -40 °C | |
| Repetitive Peak Forward Blocking Voltage | 400V | |
| Repetitive Peak Off-State Current | 0.001mA | |
| Maximum Operating Temperature | +125 °C | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Rated Average On-State Current 0.5A | ||
Thyristor Type SCR | ||
Package Type TO-92 | ||
Repetitive Peak Reverse Voltage 400V | ||
Surge Current Rating 8A | ||
Mounting Type Through Hole | ||
Maximum Gate Trigger Current 0.2mA | ||
Maximum Gate Trigger Voltage 0.8V | ||
Maximum Holding Current 5mA | ||
Pin Count 3 | ||
Dimensions 4.7 x 3.7 x 4.4mm | ||
Peak On-State Voltage 1.95V | ||
Minimum Operating Temperature -40 °C | ||
Repetitive Peak Forward Blocking Voltage 400V | ||
Repetitive Peak Off-State Current 0.001mA | ||
Maximum Operating Temperature +125 °C | ||
Sensitive Gate Thyristors, STMicroelectronics
A range of Sensitive Gate Thyristors from STMicroelectronics which are especially suitable for applications where the available gate triggering current is limited. Typical uses are in ground fault circuit interrupters and residual current circuit breakers.
Thyristors - STMicroelectronics
STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.
