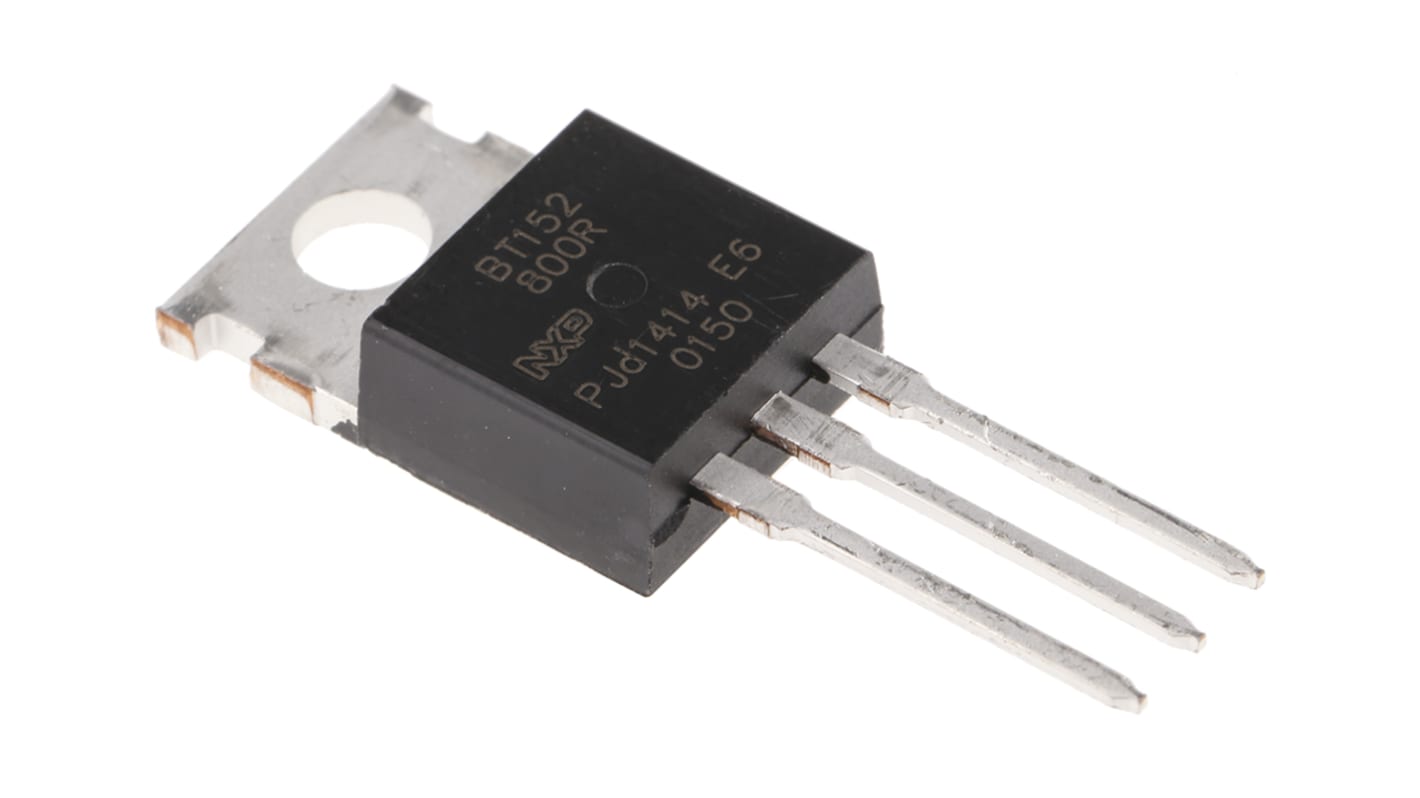

WeEn Semiconductors Co., Ltd BT152-800R,127, Thyristor 800V, 13A 32mA
- RS Stock No.:
- 436-8114
- Mfr. Part No.:
- BT152-800R,127
- Brand:
- WeEn Semiconductors Co., Ltd
View all Thyristors
530 In stock - FREE next working day delivery available
85 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 5)
£1.154
(exc. VAT)
£1.385
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £1.154 | £5.77 |
| 25 + | £1.012 | £5.06 |
| *price indicative | ||
- RS Stock No.:
- 436-8114
- Mfr. Part No.:
- BT152-800R,127
- Brand:
- WeEn Semiconductors Co., Ltd
- COO (Country of Origin):
- CN
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Phase Control Thyristors, WeEn Semiconductors
Note
NXP is a trademark of NXP B.V.
Thyristors - WeEn Semiconductors
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Specifications
| Attribute | Value |
| Rated Average On-State Current | 13A |
| Thyristor Type | SCR |
| Package Type | TO-220AB |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 220A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 32mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 60mA |
| Pin Count | 3 |
| Dimensions | 10.3 x 4.7 x 9.4mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.75V |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Repetitive Peak Off-State Current | 1mA |
| Minimum Operating Temperature | -40 °C |
