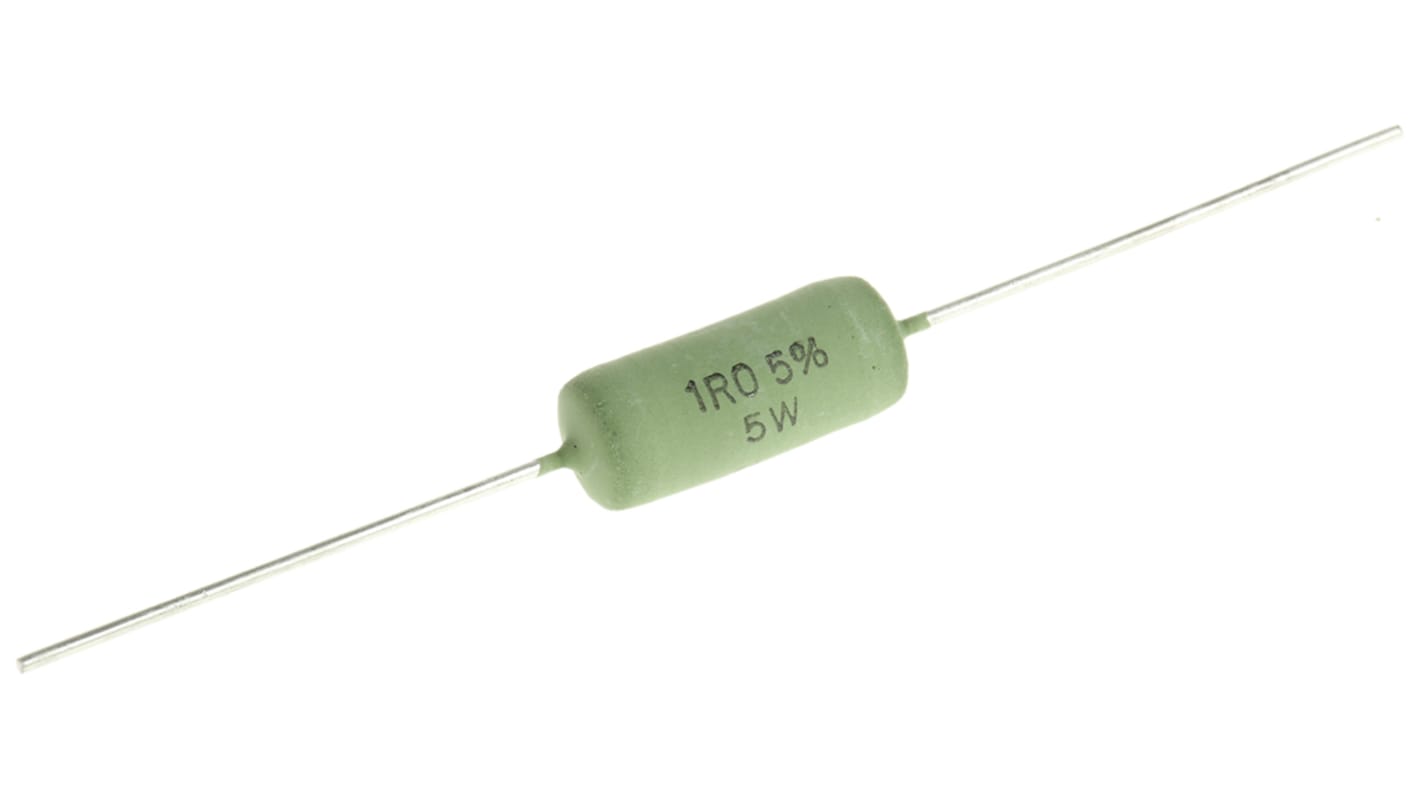

Vishay 1 Ω Wirewound Resistor 5 W 5 % AC05000001008JAC00
- RS Stock No.:
- 683-0986
- Mfr. Part No.:
- AC05000001008JAC00
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£6.06
(exc. VAT)
£7.27
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
- Plus 160 unit(s) ready to ship from another location
- Plus 1,930 unit(s) shipping from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.606 | £6.06 |
| 50 - 90 | £0.455 | £4.55 |
| 100 - 240 | £0.424 | £4.24 |
| 250 - 490 | £0.394 | £3.94 |
| 500 + | £0.378 | £3.78 |
*price indicative
- RS Stock No.:
- 683-0986
- Mfr. Part No.:
- AC05000001008JAC00
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Resistor | |
| Resistance | 1Ω | |
| Power Rating | 5W | |
| Resistor Type | Cemented Leaded Wirewound | |
| Packaging | Fan Folded | |
| Tolerance ± | 5% | |
| Axial/Radial | Axial | |
| Voltage | 910V | |
| Technology | Wirewound | |
| Series | AC05 | |
| Automotive Standard | AEC-Q200 | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Lead Pitch Radial | 25mm | |
| Maximum Operating Temperature | 250°C | |
| Length | 18mm | |
| Height | 7.5mm | |
| Diameter | 7.5mm | |
| Standards/Approvals | UL | |
| Width | 7.5mm | |
| Temperature Coefficient | -80 → -10 ppm/°C | |
| Lead Diameter | 0.8mm | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Resistor | ||
Resistance 1Ω | ||
Power Rating 5W | ||
Resistor Type Cemented Leaded Wirewound | ||
Packaging Fan Folded | ||
Tolerance ± 5% | ||
Axial/Radial Axial | ||
Voltage 910V | ||
Technology Wirewound | ||
Series AC05 | ||
Automotive Standard AEC-Q200 | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Lead Pitch Radial 25mm | ||
Maximum Operating Temperature 250°C | ||
Length 18mm | ||
Height 7.5mm | ||
Diameter 7.5mm | ||
Standards/Approvals UL | ||
Width 7.5mm | ||
Temperature Coefficient -80 → -10 ppm/°C | ||
Lead Diameter 0.8mm | ||
AC05 Series 5W, Axial
AC05 CS series wire wound safety resistors are designed to be used as fusible safety resistors (or AC mains input resistors). The resistor fuses “without a bang” when AC mains voltage is applied. At the same time, it acts as an in-rush current limiting resistor for normal operation. The specially developed lacquer coating has superior thermal and electrical insulating properties. This allows designers to more easily meet the requirements of safety approval, whilst eliminating the need to put additional fuses in series with the input resistor.
Features
- UL1412 recognized; UL file no. E362452
- Surge voltage handling capability (up to 6 kV) (1.2 / 50 μs pulse in IEC 61000-4-5)
- Silent and safe fusing
Applications
- Energy meters
- LED drivers
- White goods
- Power supplies
Ceramic Wirewound, Axial - 1W to 17W
