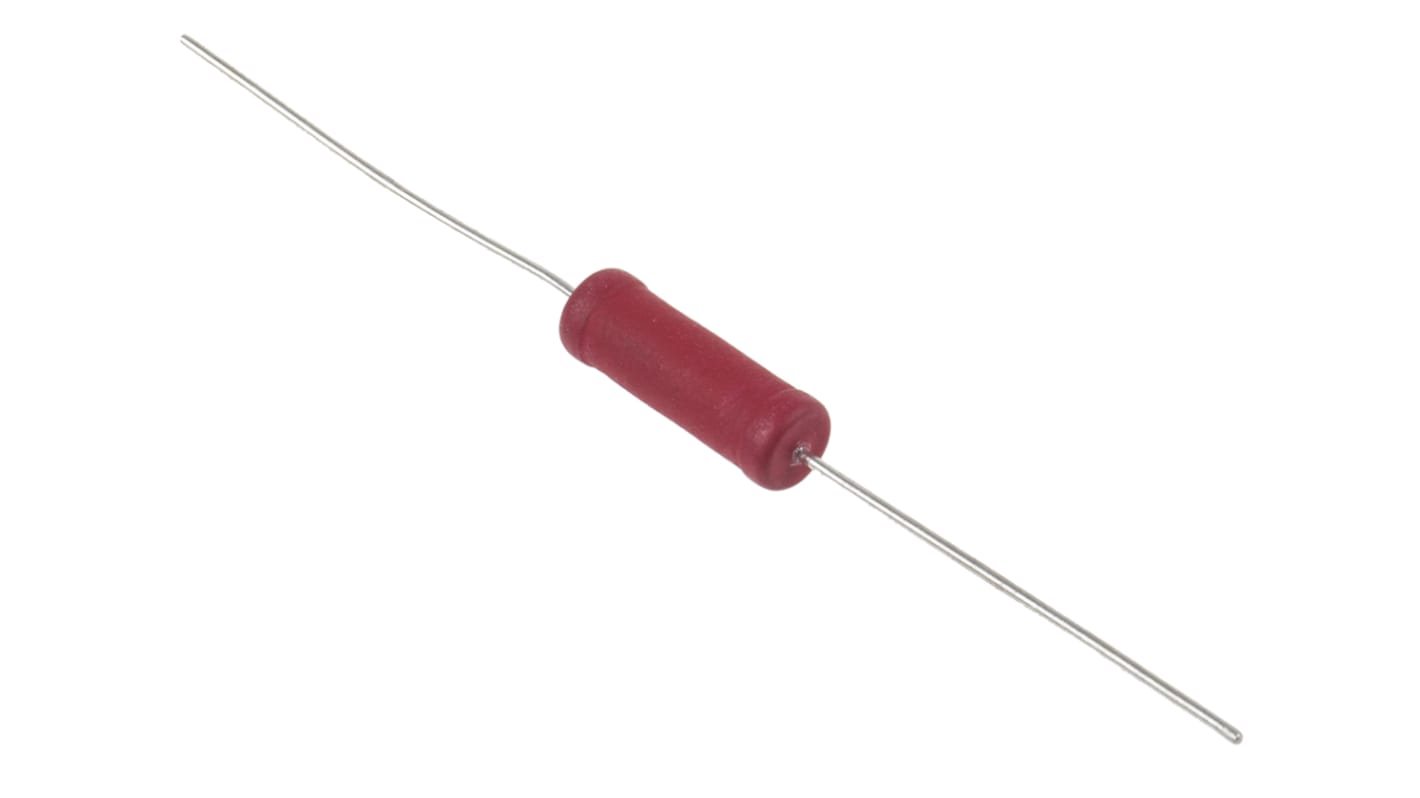

RS PRO 22 kΩ Wirewound Resistor 5 W 5 %
- RS Stock No.:
- 146-8294
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£10.39
(exc. VAT)
£12.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 935 unit(s) ready to ship
- Plus 500 unit(s) shipping from 24 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.078 | £10.39 |
| 25 - 95 | £2.014 | £10.07 |
| 100 - 245 | £1.97 | £9.85 |
| 250 - 495 | £1.914 | £9.57 |
| 500 + | £1.868 | £9.34 |
*price indicative
- RS Stock No.:
- 146-8294
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Resistor | |
| Resistance | 22kΩ | |
| Resistor Type | Silicone Coated Wirewound Axial | |
| Power Rating | 5W | |
| Tolerance ± | 5% | |
| Voltage | 460V | |
| Axial/Radial | Axial | |
| Technology | Wirewound | |
| Series | RSAWW | |
| Automotive Standard | No | |
| Pin Count | 2 | |
| Minimum Operating Temperature | 25°C | |
| Maximum Operating Temperature | 275°C | |
| Standards/Approvals | RoHS | |
| Width | 8.7mm | |
| Length | 23.8mm | |
| Height | 8.7mm | |
| Diameter | 8.7mm | |
| Temperature Coefficient | +20 ppm/°C | |
| Lead Diameter | 1.02mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Resistor | ||
Resistance 22kΩ | ||
Resistor Type Silicone Coated Wirewound Axial | ||
Power Rating 5W | ||
Tolerance ± 5% | ||
Voltage 460V | ||
Axial/Radial Axial | ||
Technology Wirewound | ||
Series RSAWW | ||
Automotive Standard No | ||
Pin Count 2 | ||
Minimum Operating Temperature 25°C | ||
Maximum Operating Temperature 275°C | ||
Standards/Approvals RoHS | ||
Width 8.7mm | ||
Length 23.8mm | ||
Height 8.7mm | ||
Diameter 8.7mm | ||
Temperature Coefficient +20 ppm/°C | ||
Lead Diameter 1.02mm | ||
- COO (Country of Origin):
- MX
The RS PRO RSAWW series offered as an economical conformal silicone-ceramic coated resistor series. The RSAWW is constructed using an all-welded assembly giving great resistance to thermal shock making them ideal for a wide range of electrical and electronic applications. The durable but economical RASWW Series resistors exceed industry requirements for quality.
Resistance 22kΩ
Power Rating 5W
Tolerance ±5%
Axial/Radial Axial
