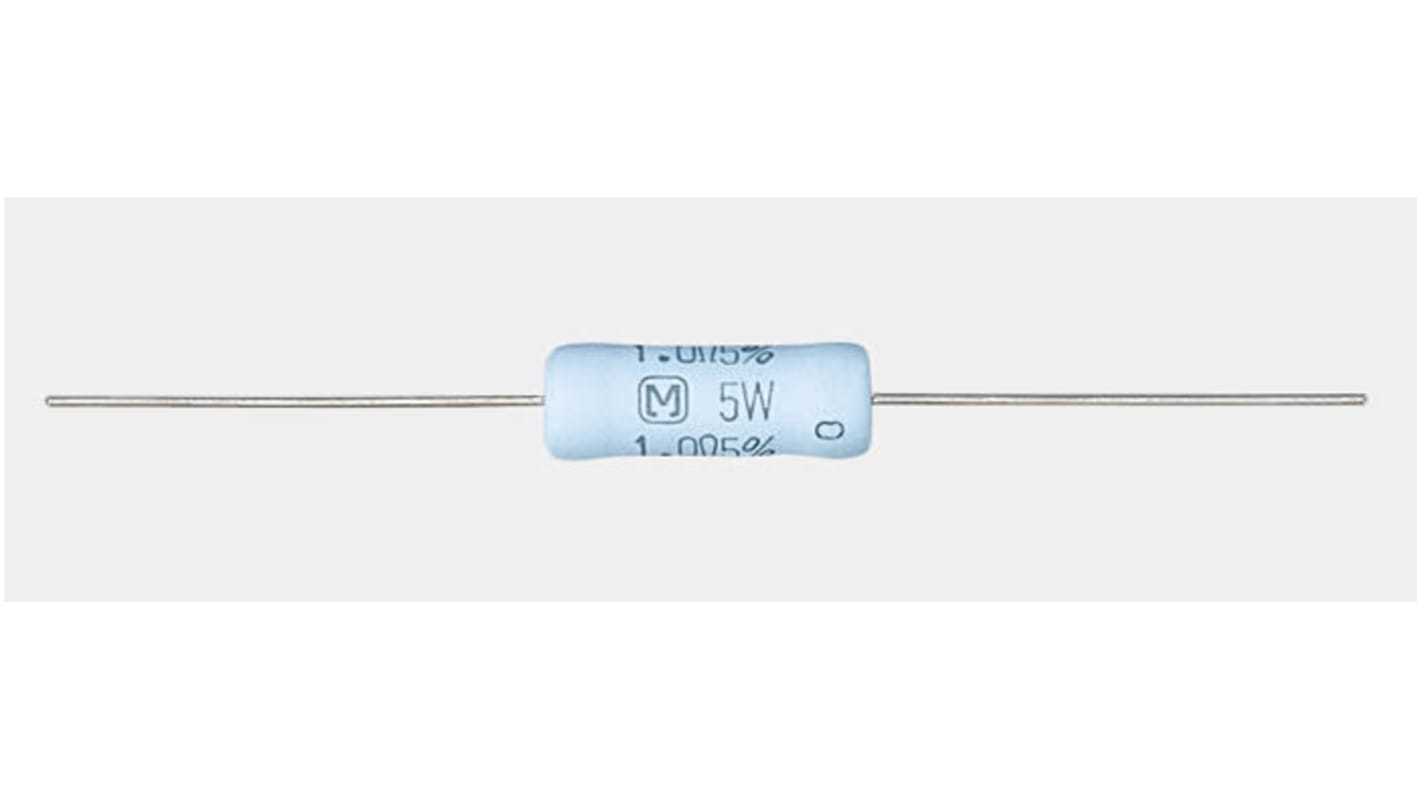

Panasonic 680mΩ Metal Film Resistor 5W ±5% ERX5SJR68

View all Through Hole Resistors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
476-2392
Mfr. Part No.:
ERX5SJR68
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Resistance

680mΩ

Power Rating

5W

Tolerance

±5%

Technology

Metal Film

Temperature Coefficient

±200ppm/°C

Maximum Operating Temperature

+200°C

Minimum Operating Temperature

-55°C

RoHS Status: Exempt

COO (Country of Origin):
JP

Panasonic ERX Series Metal Film Resistors


Panasonic ERX metal oxide resistors are a miniaturised solution at half of the size of comparable models. Constructed from a high reliability metal oxide film, these through hole resistors have a ceramic core and are flame and solvent retardant. ERX metal oxide resistors are stable in high humidity and at high temperature.

Power rating options between 0.5 W and 5 W available
Low current noise
Excellent non-linearity
Non-flammable
Automatic insertion
Low-resistance values

Standards

IEC 60115-2, IEC 60115-4, JIS C 5201-4, EIAJ RC-2138


Axial - 0.5W - 5W
