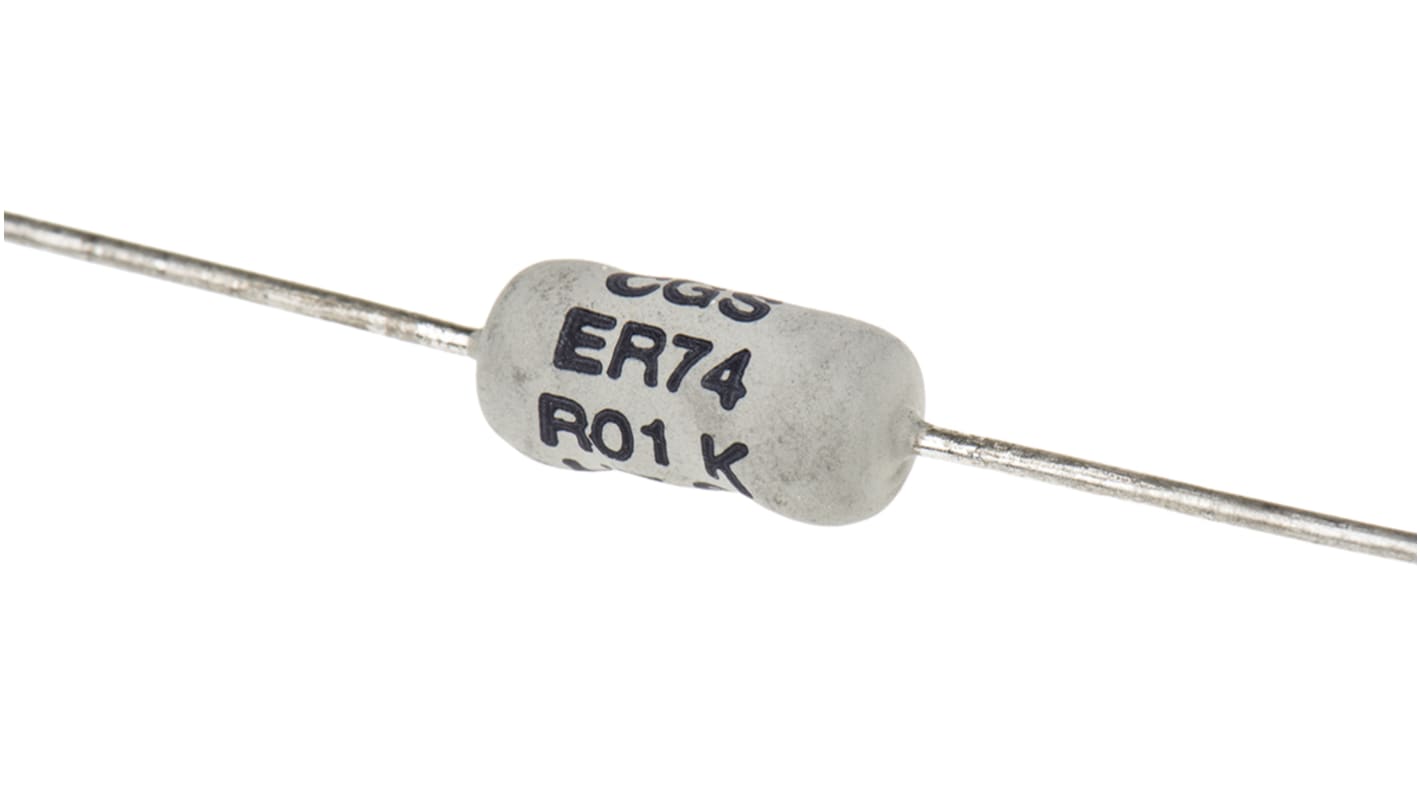

TE Connectivity 10 mΩ Wirewound Resistor 3 W 10 % ER74R01KT
- RS Stock No.:
- 200-0787
- Distrelec Article No.:
- 304-52-028
- Mfr. Part No.:
- ER74R01KT
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.95
(exc. VAT)
£8.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship from another location
- Plus 35 unit(s) shipping from 04 May 2026
- Plus 135 unit(s) shipping from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 95 | £1.39 | £6.95 |
| 100 - 245 | £0.932 | £4.66 |
| 250 - 495 | £0.766 | £3.83 |
| 500 - 1245 | £0.624 | £3.12 |
| 1250 + | £0.556 | £2.78 |
*price indicative
- RS Stock No.:
- 200-0787
- Distrelec Article No.:
- 304-52-028
- Mfr. Part No.:
- ER74R01KT
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 10mΩ | |
| Product Type | Resistor | |
| Resistor Type | Power | |
| Power Rating | 3W | |
| Tolerance ± | 10% | |
| Packaging | Ammo Pack | |
| Axial/Radial | Axial | |
| Voltage | 100V | |
| Technology | Wirewound | |
| Series | ER74 | |
| Automotive Standard | No | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | No | |
| Width | 6mm | |
| Diameter | 6mm | |
| Length | 13.5mm | |
| Temperature Coefficient | +200 ppm/°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 10mΩ | ||
Product Type Resistor | ||
Resistor Type Power | ||
Power Rating 3W | ||
Tolerance ± 10% | ||
Packaging Ammo Pack | ||
Axial/Radial Axial | ||
Voltage 100V | ||
Technology Wirewound | ||
Series ER74 | ||
Automotive Standard No | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals No | ||
Width 6mm | ||
Diameter 6mm | ||
Length 13.5mm | ||
Temperature Coefficient +200 ppm/°C | ||
TE Connectivity ER74 Series 2.5W High Power Resistors
The ER74 Series are a range of high power dissipation Silicone coated resistors from TE Connectivity. Resistant to most solvents, the ER74 series has a tough silicone coating. The coating and marking are resistant to Trichloroethene VG, Genklene LV Hot and Cold, Freon TE, Arklone L Hot and Cold, and Arklone F Hot. ER74 resistors are suitable for use in a wide range of industrial, control, medican and consumer applications.
• 2.5W Power Rating @ 70°C
• 3W Power Rating at @ 40°C
• R03-10K Resistance Range
• 100V Max Rating
• Resistant to most solvents
Silicone Coated Axial
Wire-wound power resistors manufactured to a very high standard and employing a ruggedised welded cap and lead method of construction giving considerable strength and resistance to damage. The element is wound onto a ceramic former and coated with a non-inflammable silicone cement.
