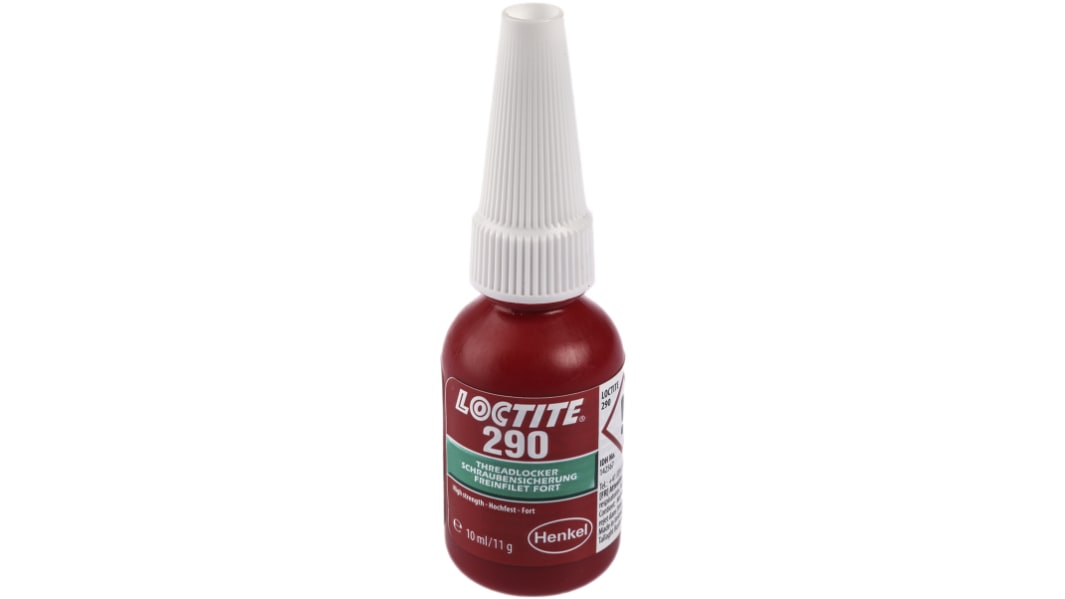

Loctite Loctite 290 Green Threadlocking, 10 ml, 24 h Cure Time

  • RS Stock No. 496-158
  • Mfr. Part No. 267397
  • Brand Loctite
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IE
Product Details

Loctite Thread lock

The Loctite 10ml thread lock is designed for locking and sealing of threaded fasteners. Because of its low viscosity and capillary action, the product wicks between engaged threads and eliminates the need to disassemble before application. The product cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage from shock and vibration. This product can also fill porosity in welds, castings and powdered metal parts.
Note:
Testing should be carried out before contact with styrene, acrylic and polycarbonate-based plastics to ensure compatibility.

Features and Benefits

Medium strength for locking and sealing of threaded fasteners and close-fitting parts after assembly
Penetrates tightened threads, porous materials and cracks by capillary action
Cure time is 24 hours
Low viscosity of 20 → 55mPa/s
Chemical composition of dimethacrylate Ester
Specific gravity of 1.08
Operating temperature ranges between-55°C and 150°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications
Attribute Value
Trade Name Loctite 290
Application Threadlocking
Material Compatibility Metal
Threadlocking Strength Medium High
Cure Time 24 h
Anaerobic Yes
Colour Green
Product Form Liquid
Package Type Bottle
Package Size 10 ml
Maximum Operating Temperature +150°C
Minimum Operating Temperature -55°C
Operating Temperature Range -55 → +150 °C
Viscosity Measurement 20 → 55mPa/s
Special Features Anaerobic
Chemical Composition Dimethacrylate Ester
Specific Gravity 1.08
Odour Characteristic
Viscosity Description Low Viscosity
199 In stock - FREE next working day delivery available
Price Each
£ 9.75
(exc. VAT)
£ 11.70
(inc. VAT)
Units
Per unit
1 - 5
£9.75
6 - 14
£9.35
15 +
£9.16
