RS PRO CO Thermostat, 16 A, +90 °C, 10 °C, 10 → 90°C
- RS Stock No.:
- 719-4168
- Brand:
- RS PRO
Subtotal (1 unit)*
£34.42
(exc. VAT)
£41.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 92 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £34.42 |
*price indicative
- RS Stock No.:
- 719-4168
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Thermostat | |
| Sub Type | Mechanical | |
| Contact Voltage | 250V ac | |
| Switch Configuration | CO | |
| Maximum Operating Temperature | +90°C | |
| Contact Current | 16A | |
| Minimum Operating Temperature | 10°C | |
| Standards/Approvals | No | |
| Temperature Setting Range | 10 → 90°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Thermostat | ||
Sub Type Mechanical | ||
Contact Voltage 250V ac | ||
Switch Configuration CO | ||
Maximum Operating Temperature +90°C | ||
Contact Current 16A | ||
Minimum Operating Temperature 10°C | ||
Standards/Approvals No | ||
Temperature Setting Range 10 → 90°C | ||
- COO (Country of Origin):
- CN

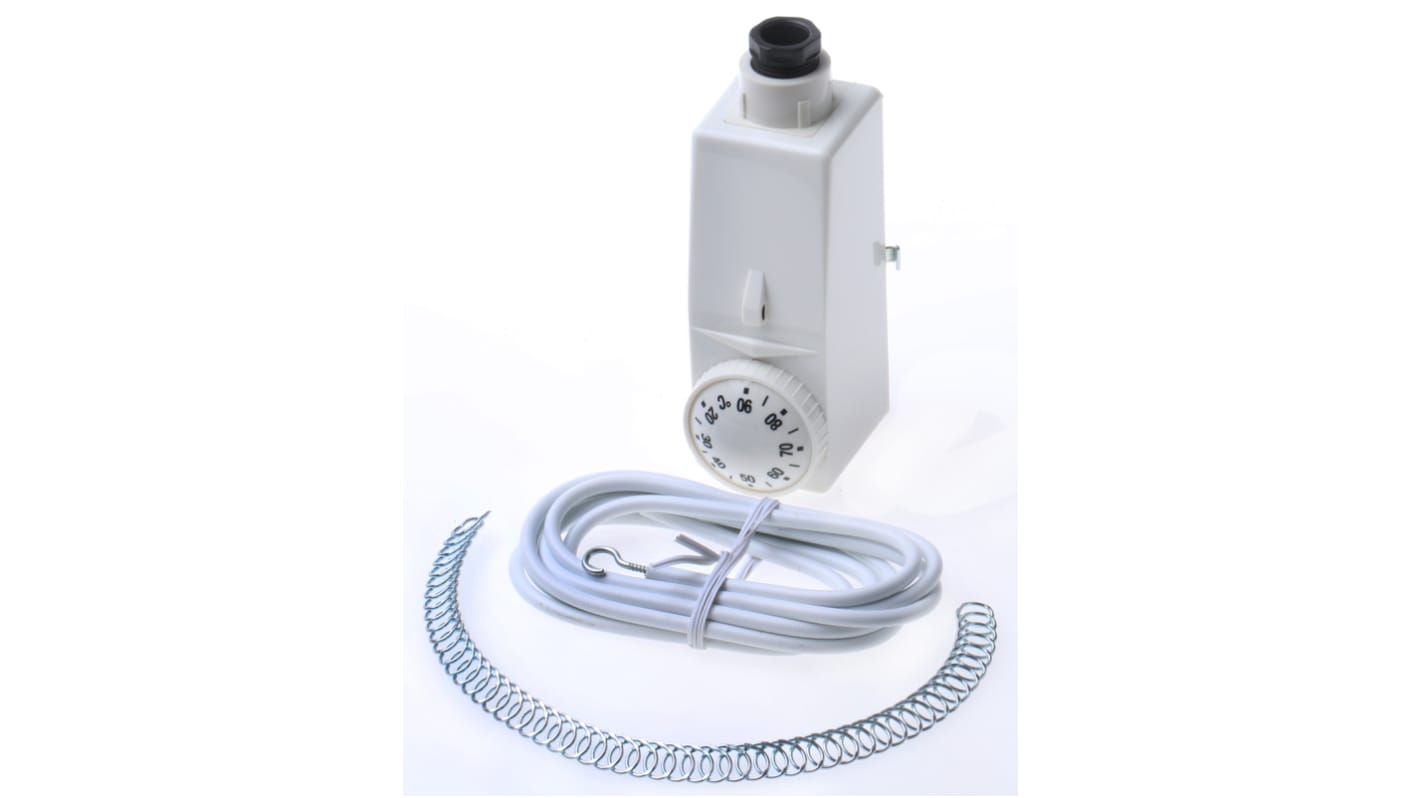

RS PRO Thermostat
Need a surface contact thermostat that accurately monitors the temperature of your heating and cooling system? You can attach this RS PRO thermostat to your system's pipes and water cylinders to measure and control system part temperatures.
This product comes with a cable clamp so you can easily affix it to the desired surface in your heating, ventilation and air conditioning (HVAC) system. It comes in an encased unit to ensure its connections don't get damaged. The included spring band helps ensure good contact between the pipes and the thermostat for accurate temperature measurements.
This product is Restriction of Hazardous Substances (RoHS) certified, meaning it contains only minimal amounts of any harmful substances such as mercury. It has been packed and handled according to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't cause damage to any electrostatic discharge sensitive (ESDS) devices.
Features and Benefits
• Mechanical device
• Spring band clamping
• Unipolar
