RS PRO Changeover Thermostats, 2A, 230 V ac, +5 → +30 °C
- RS Stock No.:
- 375-0196
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£27.26
(exc. VAT)
£32.71
(inc. VAT)
- RS Stock No.:
- 375-0196
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Rating | 2 A, 4 A, 5 A, 10A | |
| Switch Configuration | Changeover | |
| Supply Voltage | 230 V ac | |
| Maximum Temperature | +30 °C | |
| Minimum Temperature | +5 °C | |
| Temperature Range | +5 → +30 °C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Rating 2 A, 4 A, 5 A, 10A | ||
Switch Configuration Changeover | ||
Supply Voltage 230 V ac | ||
Maximum Temperature +30 °C | ||
Minimum Temperature +5 °C | ||
Temperature Range +5 → +30 °C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

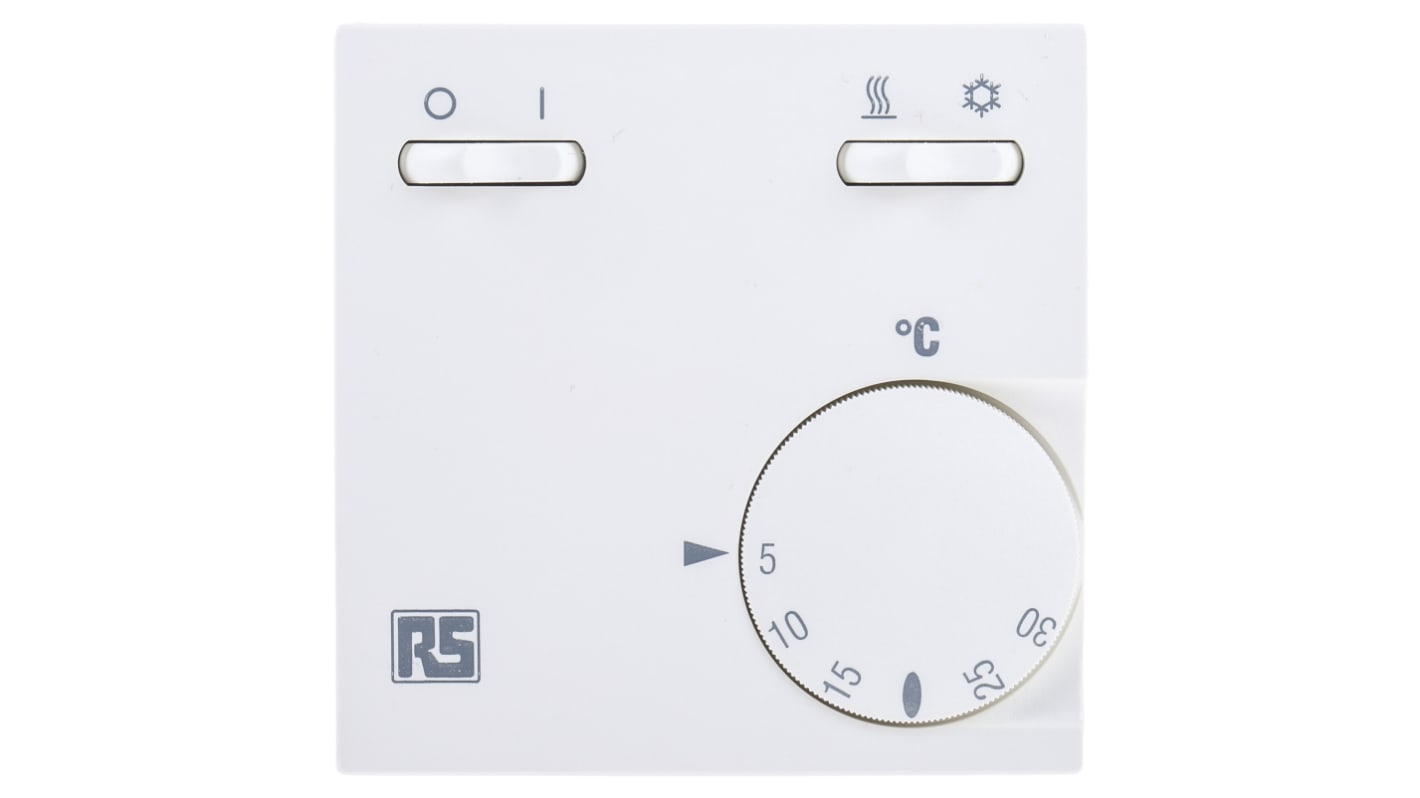

RS PRO Thermostats, +5°C → +30°C
A versatile choice for controlling the temperature of your indoor environment, this thermostat for 2-pipe fan coil systems from RS PRO is wall-mountable. When switched on, its fans run continuously. The thermostat has both cooling and heating modes, and it features a simple changeover switch so you can flick from one to the other.
The traditional design uses a bimetallic strip in the form of a coil to directly operate the electrical contacts and control the temperature, in a range between +5˚C and +30˚C. Running on a supply voltage of 230 V, it's contact rated at 2 A, 4 A, 5 A and 10 A.
As part of the RS PRO range, this unit has been tested for durability and consistency. It also meets a range of international standards to ensure it's safety and effectiveness. In industry, you'll find this easy-to-use device in environments such as meeting rooms or break areas.
The traditional design uses a bimetallic strip in the form of a coil to directly operate the electrical contacts and control the temperature, in a range between +5˚C and +30˚C. Running on a supply voltage of 230 V, it's contact rated at 2 A, 4 A, 5 A and 10 A.
As part of the RS PRO range, this unit has been tested for durability and consistency. It also meets a range of international standards to ensure it's safety and effectiveness. In industry, you'll find this easy-to-use device in environments such as meeting rooms or break areas.
Features and Benefits
• 2-pipe fan coil thermostat
• Changeover switch
• Cooling and heating modes
• Temperature range of +5˚C to +30˚C
• Supply voltage of 230 V AC
• Contact rating of 2 A, 4 A, 5 A and 10 A
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
• Changeover switch
• Cooling and heating modes
• Temperature range of +5˚C to +30˚C
• Supply voltage of 230 V AC
• Contact rating of 2 A, 4 A, 5 A and 10 A
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
