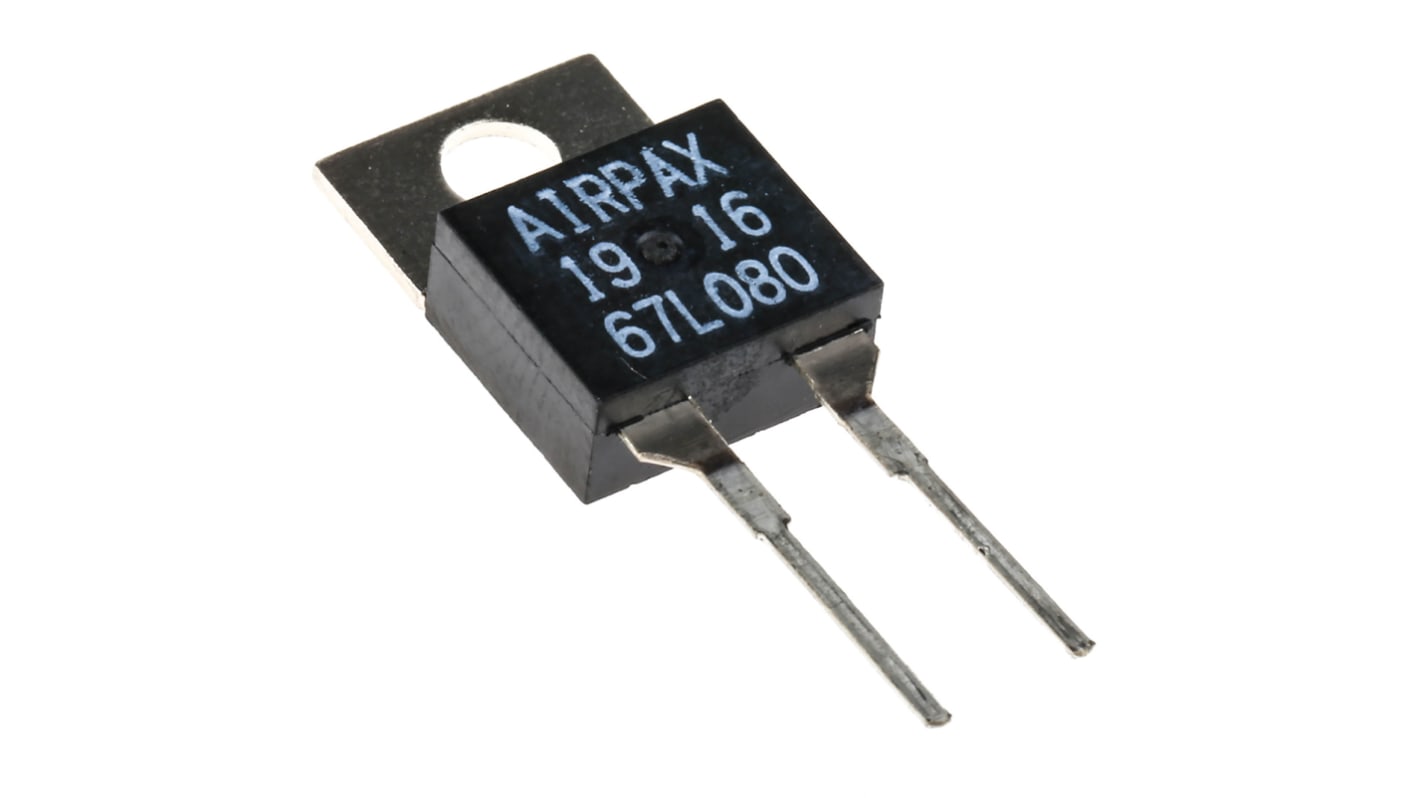

Sensata / Airpax NC 1 A Bi-Metallic Thermostat, Opens at+80°C, Automatic Reset

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

T0220 Thermostats

Miniature bimetallic thermostats
TO-220 Housing
Normally open and normally closed versions are available
Tolerance ±5°C
Resistance: 20mΩ
100000 cycles @ 5Vdc/20mA
38000 cycles @ 48Vdc/1A
Dimension between leads: 5.08mm

The Airpax 6700 series is a positive snap action, single pole / single throw, sub-miniature bimetallic thermostat which provides accurate and reliable sensing and switching in a single device.The 6700 may be automatically placed and soldered onto PC boards with high speed automated equipment, eliminating the need for the expensive hand placement and termination required today for most power supply thermostats. The 6700 provides fast, positive response with excellent repeatability. The thermostat has a switch capability of up to 1 amp for 48 VDC or 120 VAC for 30,000 cycles, and achieves low-level switching down to 0.001A to 0.020A at 5 VDC for 100,000 cycles. Temperature is pre-set at the factory and is non-adjustable in the field.

Ideal for surface and air sensing on PC boards and heat sinks
Gold-plated contacts
30,000 life cycles @ max standard amperage
100,000 life cycles @ max gold contact amperage

Thermal Switches

Specifications
Attribute Value
Minimum Temperature +40°C
Maximum Temperature +130°C
Opening Temperature +80°C
Thermostat Type Bi-Metallic
Switch Configuration NC
Contact Rating 1 A
Contact Voltage Rating 48 V dc, 120 V ac
Terminal Type PCB Pin
Mounting Type PCB Mount
Reset Type Automatic
Switch Function Open On Rise
226 in stock for FREE next working day delivery
988 available from Europe for delivery within 1 working day(s)
Price Each
£ 4.47
(exc. VAT)
£ 5.36
(inc. VAT)
Units
Per unit
1 - 4
£4.47
5 - 9
£4.34
10 +
£4.17
