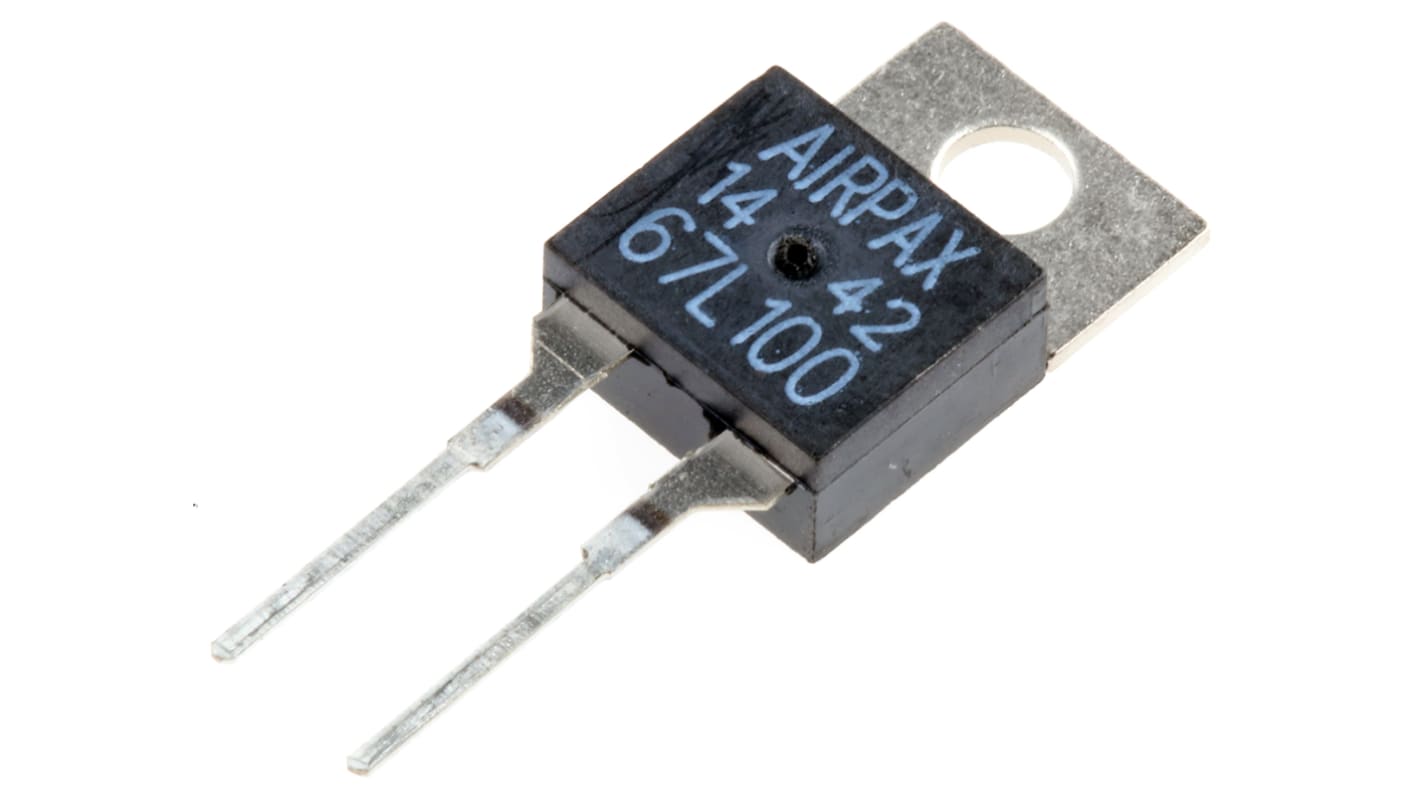

Philips Technologies Bi-Metallic Thermostat, Closes at 60 °C, 130 °C Max NC, Automatic Reset, SPST, 0.5 A, PCB
- RS Stock No.:
- 253-2773
- Mfr. Part No.:
- 67L100
- Brand:
- Philips Technologies
Bulk discount available
Subtotal (1 unit)*
£10.74
(exc. VAT)
£12.89
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 45 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £10.74 |
| 5 - 9 | £10.43 |
| 10 + | £9.91 |
*price indicative
- RS Stock No.:
- 253-2773
- Mfr. Part No.:
- 67L100
- Brand:
- Philips Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Philips Technologies | |
| Product Type | Thermostat | |
| Minimum Operating Temperature | 40°C | |
| Maximum Operating Temperature | 130°C | |
| Contact Configuration | SPST | |
| Closing Temperature | 60°C | |
| Thermostat Type | Bi-Metallic | |
| Contact AC Voltage | 120V ac | |
| Terminal Type | PCB Terminal | |
| Contact Current | 0.5A | |
| Contact DC Voltage | 48V dc | |
| Standards/Approvals | RoHS per EU 2002/95/EC, VDE 0631/12.83, cЯUus E36687 | |
| Series | 6700 | |
| Hazardous Area Certification | NO | |
| Switch Function | NC | |
| Mount Type | PCB | |
| Reset Type | Automatic | |
| Select all | ||
|---|---|---|
Brand Philips Technologies | ||
Product Type Thermostat | ||
Minimum Operating Temperature 40°C | ||
Maximum Operating Temperature 130°C | ||
Contact Configuration SPST | ||
Closing Temperature 60°C | ||
Thermostat Type Bi-Metallic | ||
Contact AC Voltage 120V ac | ||
Terminal Type PCB Terminal | ||
Contact Current 0.5A | ||
Contact DC Voltage 48V dc | ||
Standards/Approvals RoHS per EU 2002/95/EC, VDE 0631/12.83, cЯUus E36687 | ||
Series 6700 | ||
Hazardous Area Certification NO | ||
Switch Function NC | ||
Mount Type PCB | ||
Reset Type Automatic | ||
- COO (Country of Origin):
- US
T0220 Thermostats
Miniature bimetallic thermostats
TO-220 Housing
Normally open and normally closed versions are available
Tolerance ±5°C
Resistance: 20mΩ
100000 cycles @ 5Vdc/20mA
38000 cycles @ 48Vdc/1A
Dimension between leads: 5.08mm
