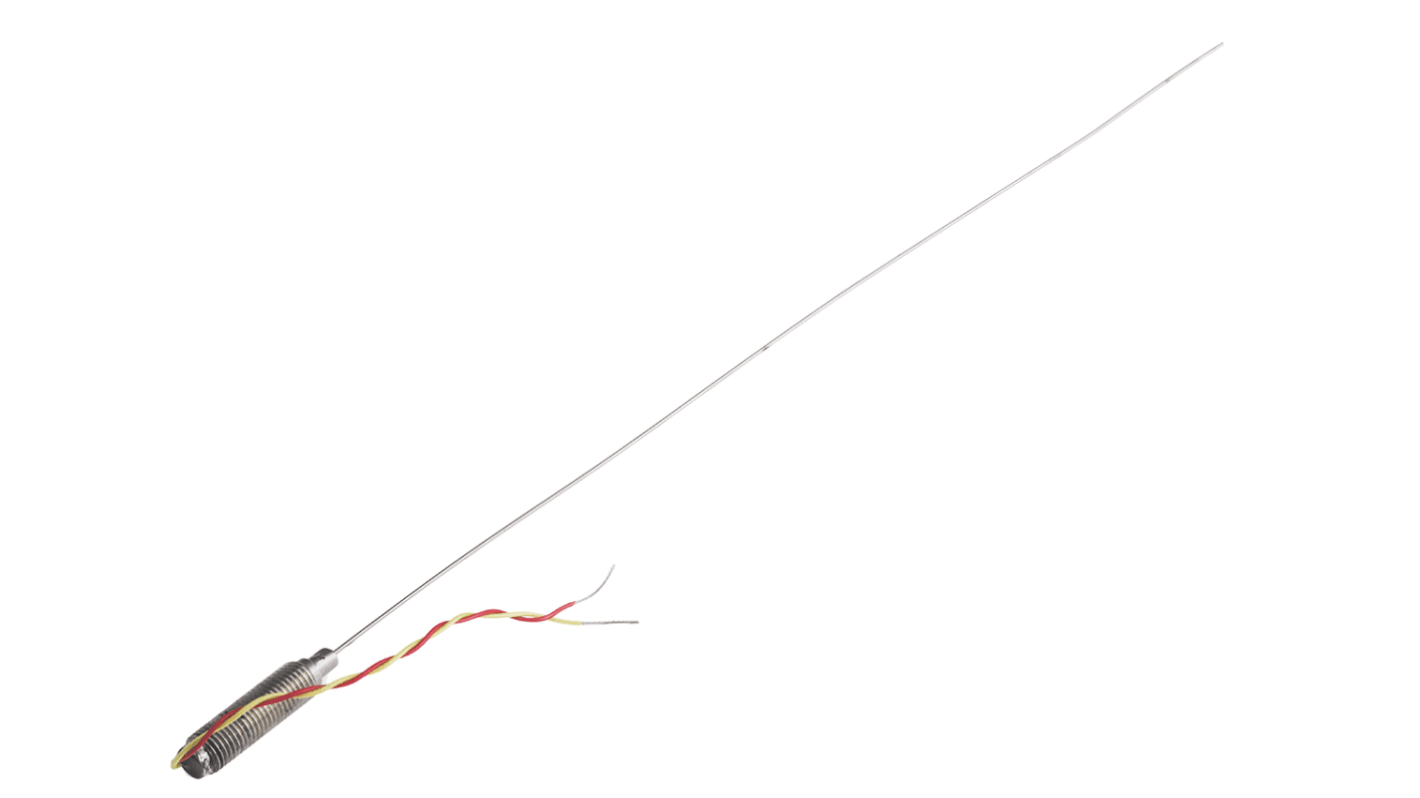

RS PRO Type K Mineral Insulated Thermocouple 250 mm Length, 1 mm Diameter, -40 °C → 750 °C Max

View all Thermocouples
Bulk discount available

Subtotal (1 unit)*

£24.57

(exc. VAT)

£29.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£24.57
5 - 9£23.84
10 +£22.85

*price indicative

RS Stock No.:
847-1126
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Product Type

Mineral Insulated Thermocouple

Probe Diameter

1mm

Probe Length

250mm

Probe Material

Stainless Steel

Maximum Temperature Sensed

750°C

Terminal Type

Cable

Cable Length

100mm

Standards/Approvals

ANSI, RoHS Compliant

Minimum Temperature Sensed

-40°C

COO (Country of Origin):
GB

Type K Ind. Mineral Insulated Themocouples with Threaded Pot & Tails


ANSI minteral insulated thermocouples with threaded pot and tails.

310 stainless steel or Inconel® Alloy 600 sheath

Highly flexible, sheath can be bent/formed to suit many applications and processes

Insulated hot junction

Probe temperature range: -40°C to +1100°C for over 1.0mm diameter, -40°C to +750°C for 1.0mm diameter and below

M8 x 1.0mm fine pitch threaded pot seal (200 ºC)

100mm tails, PFA twin twisted 7/0.2mm, colour coded to ANSI MC96.1
