RS PRO Type K Thermocouple 265 mm Length, 8 mm Diameter, 0 °C → 800 °C Max

View all Thermocouples

Subtotal (1 unit)*

£150.77

(exc. VAT)

£180.92

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£150.77

*price indicative

RS Stock No.:
621-2439
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Thermocouple

Thermocouple Type

K

Probe Diameter

8mm

Probe Length

265mm

Maximum Temperature Sensed

800°C

Probe Material

316L Stainless Steel

Terminal Type

Connection Head

Standards/Approvals

RoHS Compliant

Response Time

20s

Minimum Temperature Sensed

0°C

COO (Country of Origin):
FR

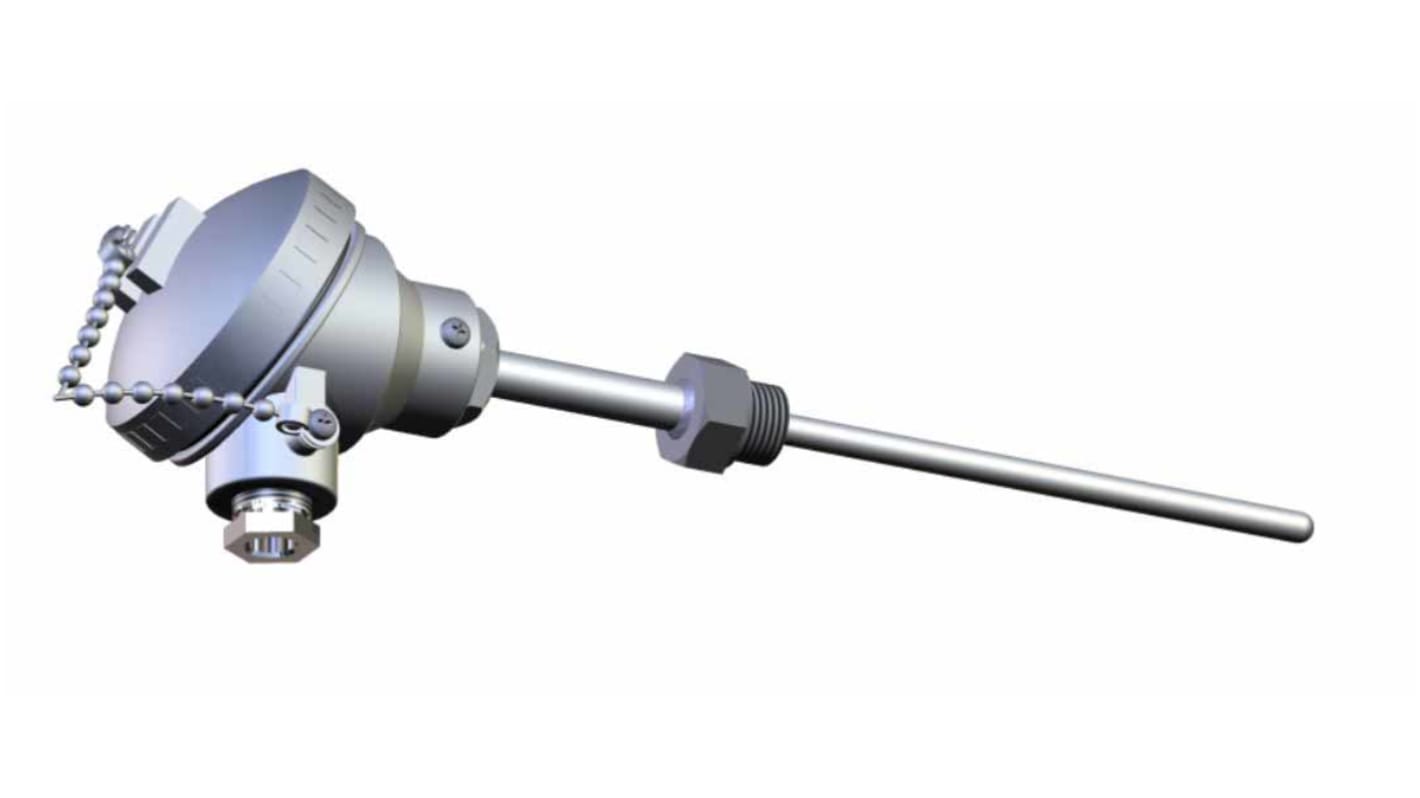

Type K probe and KNE terminal head assembly c/w 75 mm extension


Available with 150, 250 and 500mm versions

8 mm stainless steel sheath

Insulated tip junction

Aluminium IP67 terminal head

½ in. BSP(P) process connection

Screw lead with retaining chain

Terminal block is included

Cable entry via M20 cable gland

6 mm replaceable spring-loaded inserts also available

Note

Replacement spring loaded inserts are supplied longer than the probes to allow insertion into the head.
