- RS Stock No.:
- 268-4551
- Brand:
- RS PRO
3 In stock - FREE next working day delivery available
Added
Price Each
£94.25
(exc. VAT)
£113.10
(inc. VAT)
Units | Per unit |
1 - 9 | £94.25 |
10 - 99 | £91.42 |
100 + | £75.40 |
- RS Stock No.:
- 268-4551
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

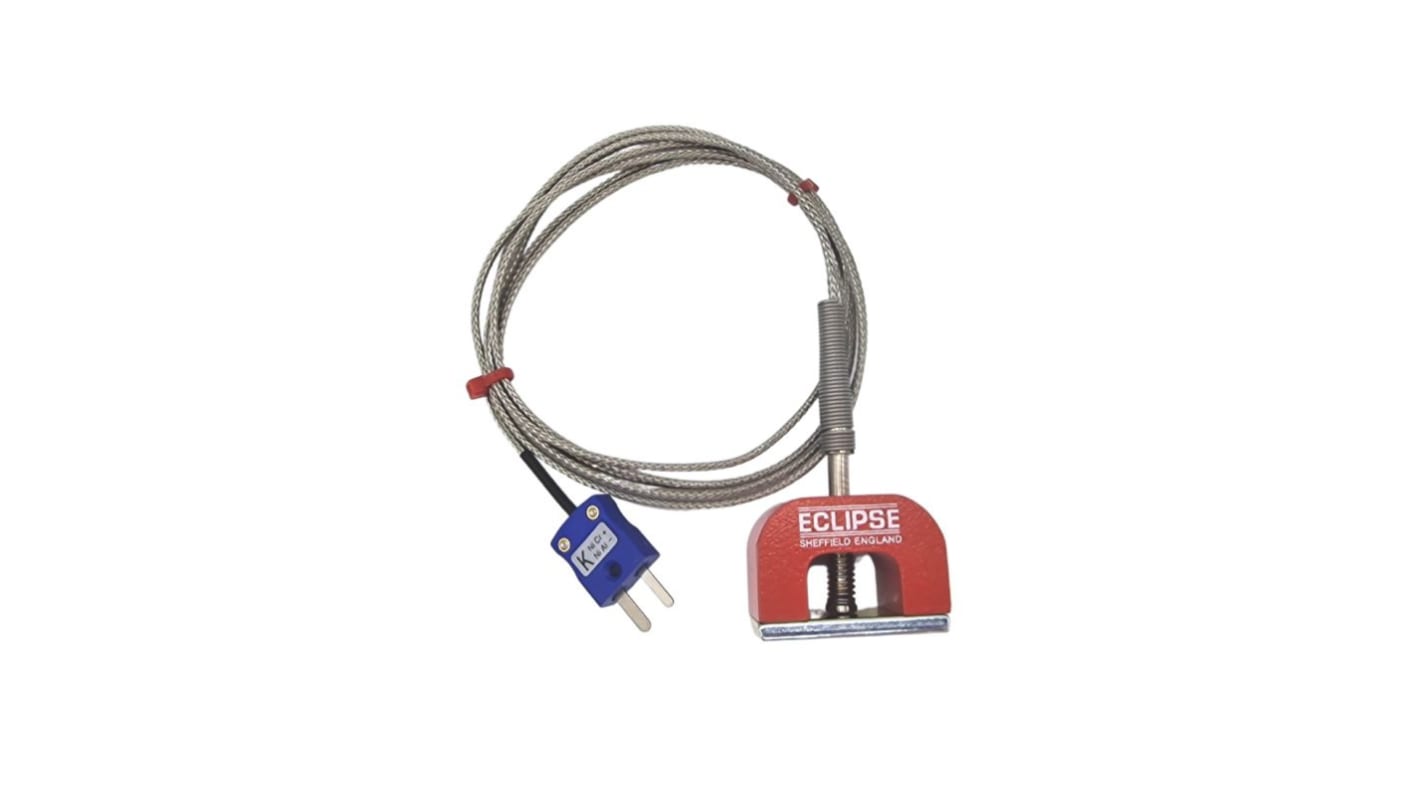

RS PRO JIS Type K Horseshoe Magnet Thermocouple (9kg Pull)
A reliable and hardwearing Type K thermocouple featuring a horseshoe magnet for simple and easy localised temperature measurements on pipes, tanks and other ferrous containers. Comprising of 9kg pull magnet thermocouple with a PFA insulated Stainless Steel braided cable terminating in a robust miniature type K plug.
Constructed from tough thermoplastic the Type K miniature plug is JIS colour coded and the PFA insulated Stainless Steel braided cable protects against wearing and mechanical stresses and features excellent heat and thermal resistance.
A hardwearing, reliable, and accurate Type K magnet thermocouple suitable for harsh industrial environments.
Features and Benefits
Type K thermocouple
9kg pull magnet
Magnet dimensions of 25 x 25 x 40mm
Terminated in miniature Type K plug
PFA insulated Stainless Steel braided cable
Cable length of 1.5 m
Minimum temperature measurement -50°C
Maximum temperature measurement of +250°C
JIS colour coded
9kg pull magnet
Magnet dimensions of 25 x 25 x 40mm
Terminated in miniature Type K plug
PFA insulated Stainless Steel braided cable
Cable length of 1.5 m
Minimum temperature measurement -50°C
Maximum temperature measurement of +250°C
JIS colour coded
Standards and Approvals: JIS
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
---|---|
Thermocouple Type | K |
Probe Diameter | 25mm |
Probe Length | 40mm |
Maximum Temperature Sensed | +250°C |
Termination Type | Miniature Plug |
Series | Magnet Thermocouple |
Cable Length | 1.5m |
Standards Met | JIS |
Minimum Temperature Sensed | -50°C |
