RS PRO Type K Pipe Surface Thermocouple 2m Length, 30-45mm Diameter → +350°C
- RS Stock No.:
- 268-4529
- Brand:
- RS PRO
1 In stock - FREE next working day delivery available
Price Each
£30.60
(exc. VAT)
£36.72
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £30.60 |
10 - 99 | £29.43 |
100 + | £28.34 |
- RS Stock No.:
- 268-4529
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

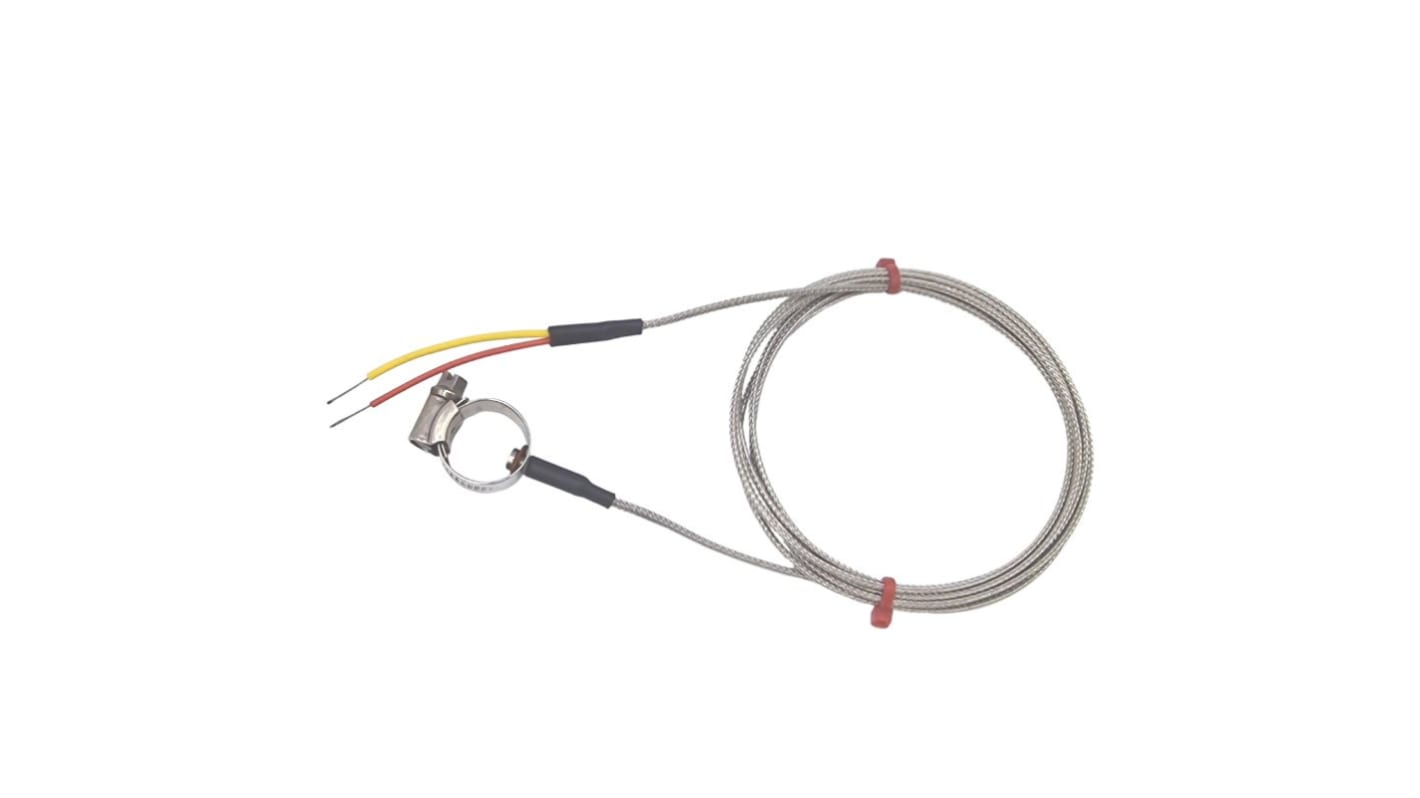

RS PRO ANSI Type K Pipe Clamp Thermocouple (30 to 45mm)
A reliable and accurate Type K thermocouple featuring a pipe clamp sensor for quick and easy measurements around pipes and tubes enabling a precise surface temperature measurement.
Comprising of an adjustable Stainless Steel pipe clamp for direct attachment to the pipe, and a Glassfibre insulated Stainless Steel braided cable terminating ANSI colour coded bare tails.
The Type K thermocouples Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance and the nozzle sensor enables temperature measurements of up to 350°C.
A hardwearing, reliable and accurate Type K pipe clamp thermocouple with a grounded tip increasing measuring accuracy and stability. Ideal for maintenance, monitoring and troubleshooting applications.
Features and Benefits
Pipe clamp thermocouple
Type K
Suitable for 30 to 45mm pipe diameters
Glassfibre insulation
Core/ strands 7/0.2mm (24AWG)
Cable length of 2m
Maximum temperature measurement of +350°C
Bare tail termination
ANSI colour coded
Standards and Approvals: ANSI MC96.1
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
---|---|
Thermocouple Type | K |
Probe Diameter | 30-45mm |
Probe Length | 2m |
Maximum Temperature Sensed | +350°C |
Probe Material | Stainless Steel |
Series | Pipe Clamp Thermocouple |
Termination Type | Bare Wire Tail |
Cable Length | 2m |
Standards Met | ANSI, RoHS Compliant |
