RS PRO Type K Hermetically Sealed Thermocouple 1m Length, 7/0.2mm Diameter, -75°C → +260°C

View all Thermocouples
Bulk discount available

Subtotal (1 unit)*

£31.86

(exc. VAT)

£38.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 28 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£31.86
10 - 99£30.90
100 +£25.49

*price indicative

RS Stock No.:
268-4455
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Probe Diameter

7/0.2mm

Probe Length

1m

Probe Material

PFA

Maximum Temperature Sensed

+260°C

Series

Hermetically Sealed Thermocouple

Termination Type

Miniature Plug

Cable Length

1m

Standards Met

IEC, RoHS Compliant

Minimum Temperature Sensed

-75°C

RoHS Status: Exempt

COO (Country of Origin):
GB

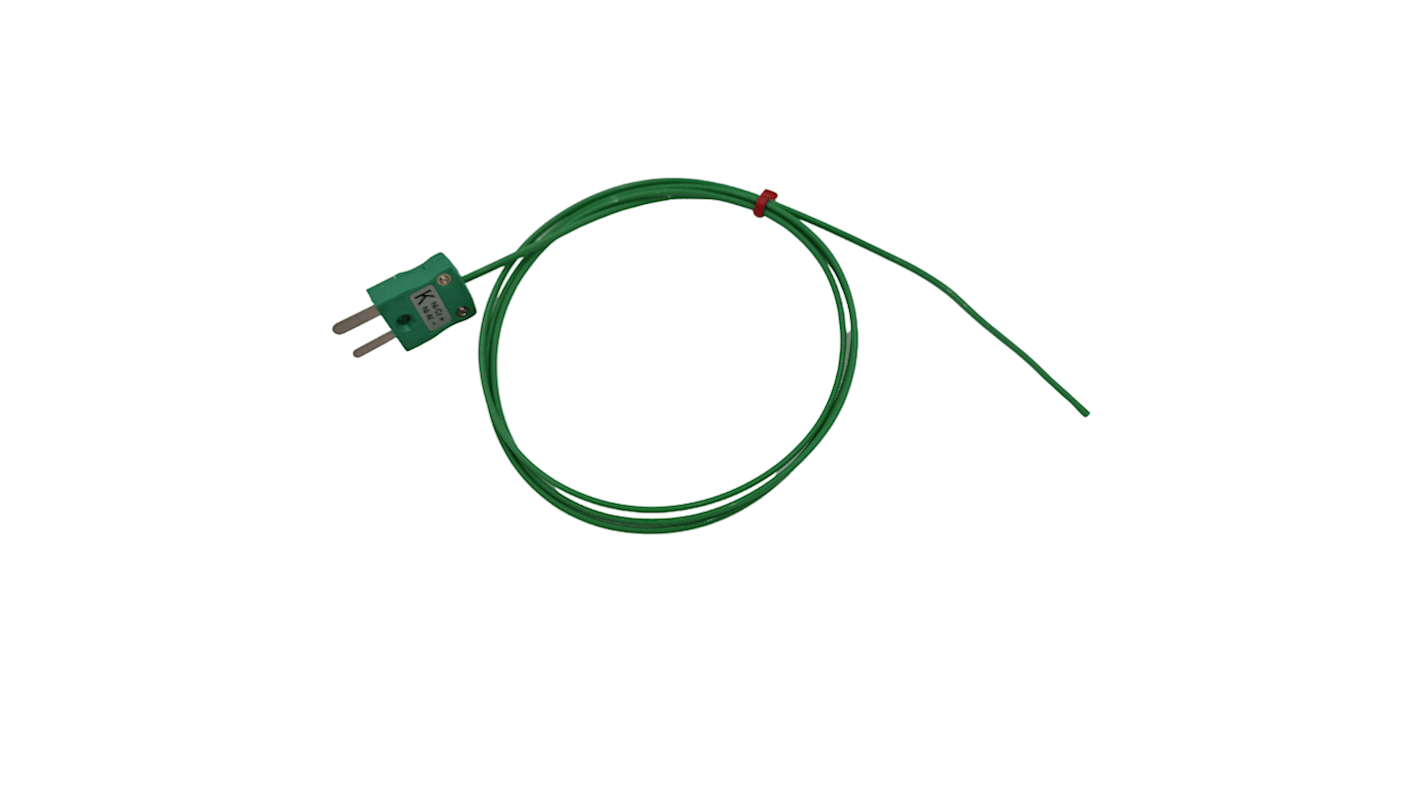

RS PRO IEC Type K Hermetically Sealed Wire Thermocouple (1m)


A hermetically sealed IEC Type K thermocouple designed for use in corrosive of wet environments. Comprising of a flat easy to clean impermeable PFA insulated wire sealed to be airtight and protected against moisture, a sensor tip and terminating in a robust minature colour coded thermoplastic plug.

The Type K thermocouple is IP67 rated, electrically insulated and features exceptional resistance to oils, fluid, chemicals and gases with excellent heat and thermal resistance, and a wide temperature measurement range of -75 up to 260°C.

A hardwearing hermetically sealed thermocouple with a rapid response time with a Class I accuracy tolerance suitable for use in a wide range of applications and perfect for precision temperature measurement of liquids in harsh corrosive environments.

Features and Benefits


Type K thermocouple

Hermetically sealed

Electrically insulated tip (tested up to 1Kv)

PFA insulated

IP67 rated

Core/ strands 7/0.2mm (24AWG)

Class 1 tolerance

IEC colour coded

Cable length of 1m

Minimum temperature measurement -75°C

Maximum temperature measurement of +260°C

Thermoplastic miniature plug

Pressure tested at 40 PSI

IEC colour coded

Standards and Approvals: IEC
