RS PRO Type K Thermocouple 150mm Length, 4.5mm Diameter, -60°C → +350°C
- RS Stock No.:
- 268-4446
- Brand:
- RS PRO
9 In stock - FREE next working day delivery available
Added
Price Each
£21.79
(exc. VAT)
£26.15
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £21.79 |
| 10 - 99 | £20.95 |
| 100 + | £20.18 |
- RS Stock No.:
- 268-4446
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

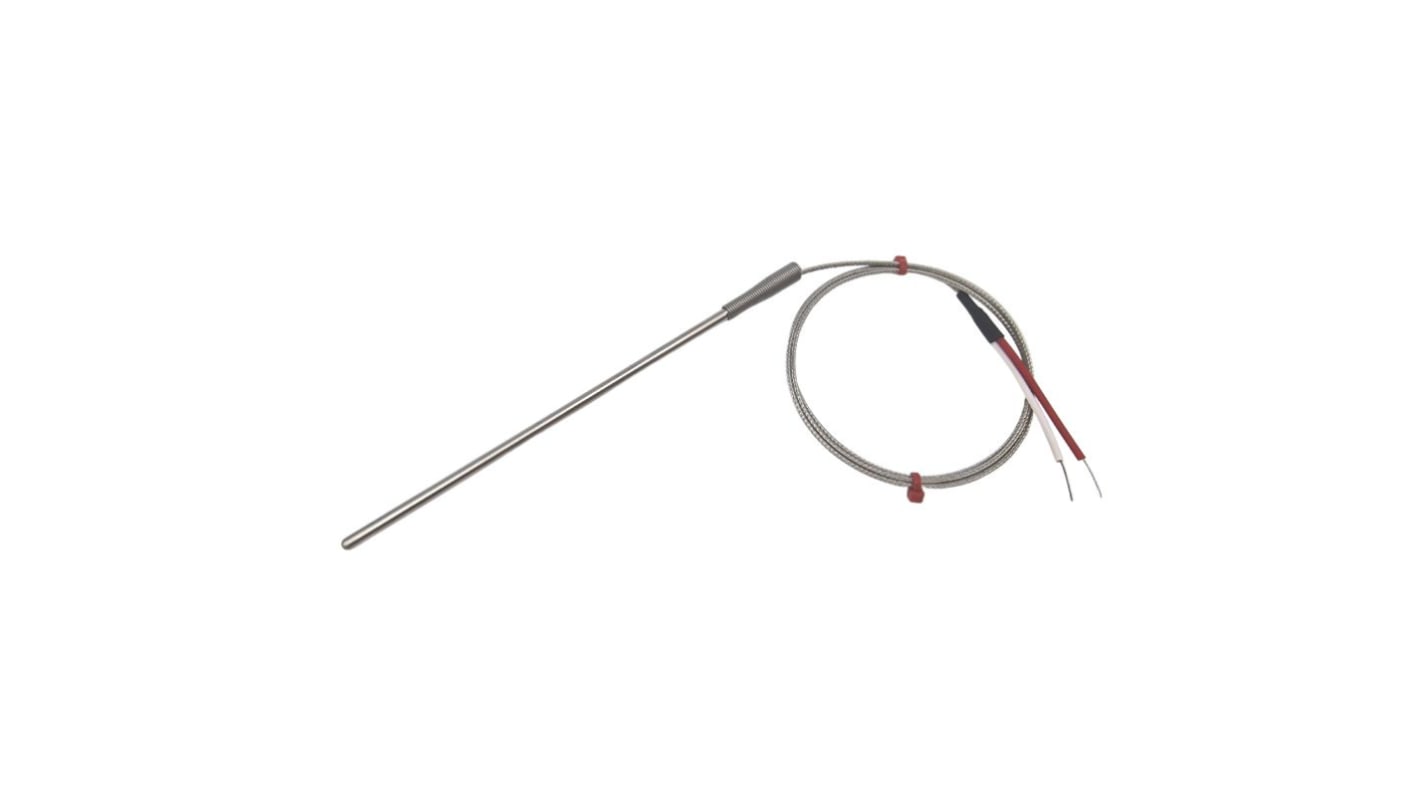

RS PRO JIS Type K Stainless Steel Tube Probe Thermocouple (4.5 x 150mm)
A reliable and accurate Type K thermocouple featuring a probe sensor for quick and easy direct contact temperature measurements. Comprising of a Stainless Steel sheath surrounding the Type K thermocouple with a Glassfibre insulated Stainless Steel braided cable and terminating in JIS colour coded bare tail wires.
The Type K thermocouples fibreglass insulated Stainless Steel braided cable protects against wearing and mechanical stresses, EMI, and features excellent heat and thermal resistance and the easy to clean Stainless Steel sheath enables temperature measurements of -60 up to 350°C.
A hardwearing, reliable and accurate Type K probe thermocouple with a grounded hot junction resulting in a rapid response time and increasing measuring accuracy and stability. Suitable for use in a wide range of applications and fit for harsh industrial environments.
Features and Benefits
Type K Probe thermocouple
4.5 x 150mm tube sensor
Grounded hot junction
Bare tail termination
Glassfibre Stainless Steel braided cable
Core/ strands 7/0.2mm
Cable length of 1m
Minimum temperature measurement -60°C
Maximum temperature measurement of +350°C
JIS colour coded
Standards and Approvals: JIS
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Thermocouple Type | K |
| Probe Diameter | 4.5mm |
| Probe Length | 150mm |
| Maximum Temperature Sensed | +350°C |
| Probe Material | Stainless Steel |
| Termination Type | Bare Wire Tail |
| Series | Probe Thermocouple |
| Cable Length | 1m |
| Standards Met | JIS |
| Minimum Temperature Sensed | -60°C |
