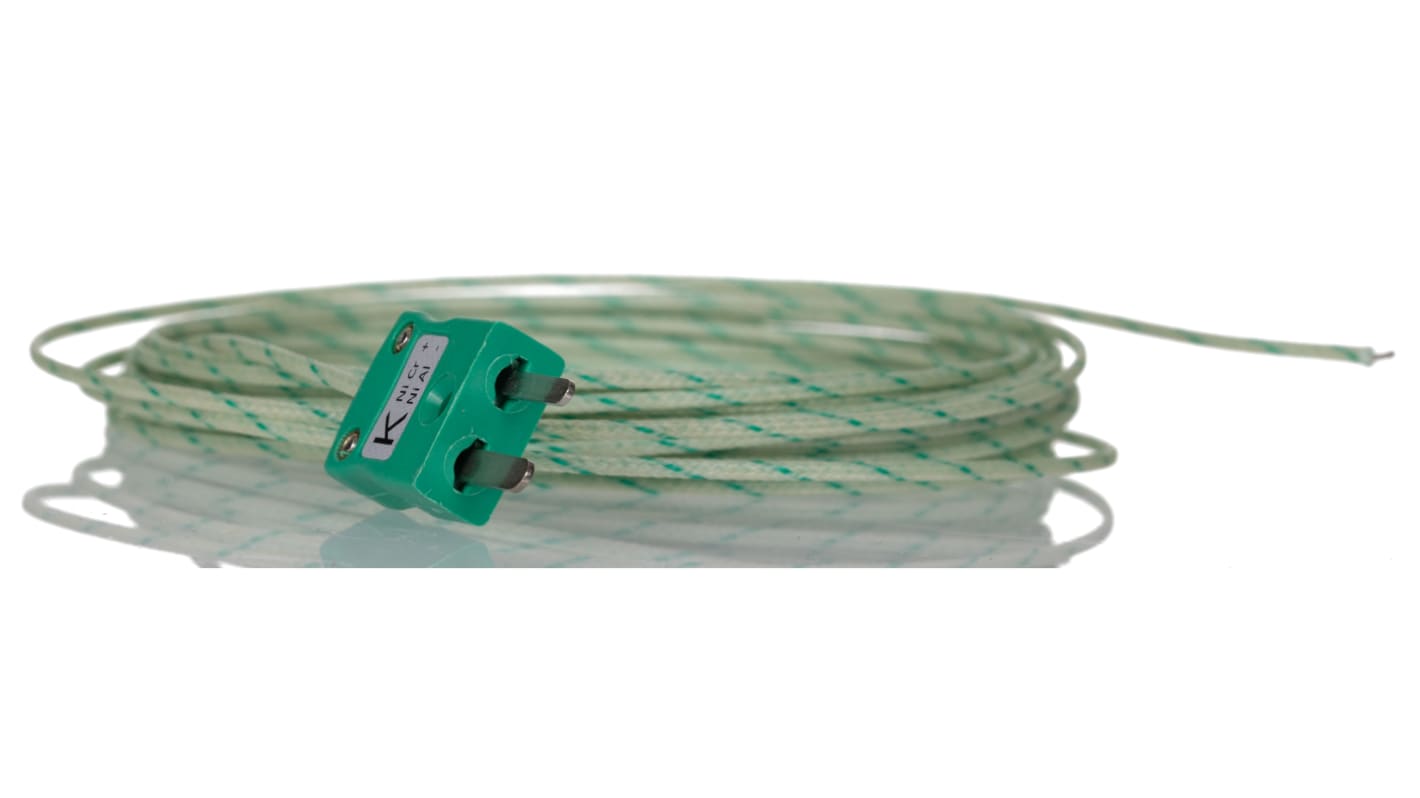

RS PRO Type K Exposed Junction Thermocouple 10m Length, 1/0.2mm Diameter, -75°C → +250°C
- RS Stock No.:
- 262-3193
- Brand:
- RS PRO
Subtotal (1 pack of 5 units)*
£116.09
(exc. VAT)
£139.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 30 unit(s) shipping from 27 October 2025
- Plus 40 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £23.218 | £116.09 |
*price indicative
- RS Stock No.:
- 262-3193
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thermocouple Type | K | |
| Probe Diameter | 1/0.2mm | |
| Probe Length | 10m | |
| Maximum Temperature Sensed | +250°C | |
| Probe Material | PTFE | |
| Termination Type | Miniature Plug | |
| Cable Length | 10m | |
| Standards Met | IEC, RoHS Compliant | |
| Minimum Temperature Sensed | -75°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thermocouple Type K | ||
Probe Diameter 1/0.2mm | ||
Probe Length 10m | ||
Maximum Temperature Sensed +250°C | ||
Probe Material PTFE | ||
Termination Type Miniature Plug | ||
Cable Length 10m | ||
Standards Met IEC, RoHS Compliant | ||
Minimum Temperature Sensed -75°C | ||
- COO (Country of Origin):
- GB
RS PRO IEC Colour Coded Exposed Junction Miniature Thermocouple Connector (Type K)
A miniature type K thermocouple plug connector featuring polarised contacts and an exposed junction PTFE twin-twisted wire well suited to test and measurement applications.
IEC colour coded and clearly marked with the polarity on the housing for easy and quick identification helping prevent accidental cross or disconnection.
The type K thermocouple is constructed from a robust rewireable Thermoplastic plug with a PTFE insulated lead and is capable of operating at temperature range of -75 to +250°C for a hardwearing IEC thermocouple suitable for harsh industrial environments.
Supplied in packs of 5, for packs of 1 see RS PRO 123-6307
Features and Benefits
Type K thermocouple
Class 1 tolerance
IEC colour coded
Exposed junction
Conductor core/ strands of 1 x 0.2 mm
Lead length of 10m
PTFE insulation
Miniature flat pin plug
Plug constructed from robust thermoplastic
Able to withstand temperatures of 250°C
Ideal for test and measurement applications
Standards and Approvals: IEC-584-3
