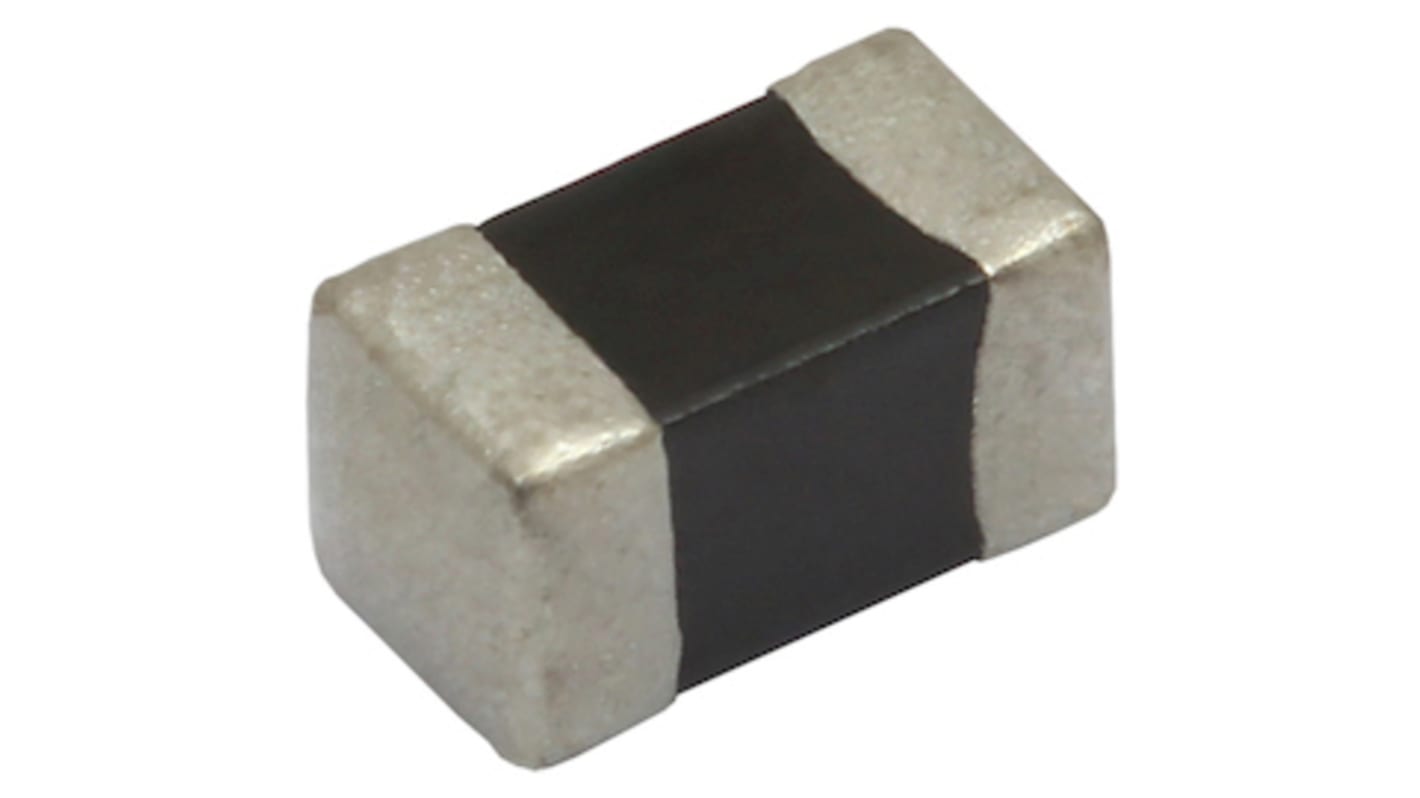

Vishay NTC Thermistor, NTC Type 10 kΩ, 0603 800 μm 1.6 mm 800 μm
- RS Stock No.:
- 179-3858
- Mfr. Part No.:
- NTCS0603E3103FLT
- Brand:
- Vishay
Get a bulk buy discount
Add 500 more to save £1.00
View bulk pricing optionsSubtotal (1 reel of 250 units)*
£40.50
(exc. VAT)
£48.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 14,500 unit(s), ready to ship
Units | Per unit | Per Reel* | Saving |
|---|---|---|---|
| 250 - 250 | £0.162 | £40.50 | - |
| 500 - 1000 | £0.16 | £40.00 | £1.00 |
| 1250 + | £0.158 | £39.50 | £5.00 |
*price indicative
- RS Stock No.:
- 179-3858
- Mfr. Part No.:
- NTCS0603E3103FLT
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Series | NTCS0603E3T | |
| Product Type | NTC Thermistor | |
| Temperature Coefficient Type | NTC | |
| Thermal Coefficient | -2%/K | |
| Packaging | Tape & Reel | |
| Thermal Time Constant | 8s | |
| Mount Type | PCB | |
| Automotive Standard | No | |
| Tolerance ± | 1% | |
| Application | Control, Temperature Measurement, Compensation, Sensing | |
| Package/Case | 0603 | |
| Maximum Power Rating | 125mW | |
| Resistance at 25°C | 10kΩ | |
| Pin Count | 2 | |
| Depth | 800μm | |
| Termination Style | Radial | |
| Height | 800μm | |
| Standards/Approvals | RoHS, UL | |
| Length | 1.6mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Series NTCS0603E3T | ||
Product Type NTC Thermistor | ||
Temperature Coefficient Type NTC | ||
Thermal Coefficient -2%/K | ||
Packaging Tape & Reel | ||
Thermal Time Constant 8s | ||
Mount Type PCB | ||
Automotive Standard No | ||
Tolerance ± 1% | ||
Application Control, Temperature Measurement, Compensation, Sensing | ||
Package/Case 0603 | ||
Maximum Power Rating 125mW | ||
Resistance at 25°C 10kΩ | ||
Pin Count 2 | ||
Depth 800μm | ||
Termination Style Radial | ||
Height 800μm | ||
Standards/Approvals RoHS, UL | ||
Length 1.6mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- IL
SMD 0603, Glass Protected NTC Thermistors
FEATURES
TCR ranging from -7 %/K at -40 °C to -2 %/K at 150 °C
Tolerance on R25 down to 1 %, and on B25/85 down to 1 %
Suitable for wave or reflow soldering
APPLICATIONS
Temperature sensing, protection and compensation in automotive, industrial, telecom and consumer applications. Examples are:
Battery chargers
Power suppliers
