RS PRO Thermal Interface Sheet, 0.45mm Thick, 1.4W/m·K, 150 x 150mm
- RS Stock No.:
- 707-4720
- Brand:
- RS PRO
258 In stock - FREE next working day delivery available
17 available from Europe for delivery within 1 working day(s).
Added
Price Each
£10.20
(exc. VAT)
£12.24
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £10.20 |
| 10 - 24 | £9.39 |
| 25 - 49 | £8.99 |
| 50 - 99 | £8.68 |
| 100 + | £7.96 |
- RS Stock No.:
- 707-4720
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

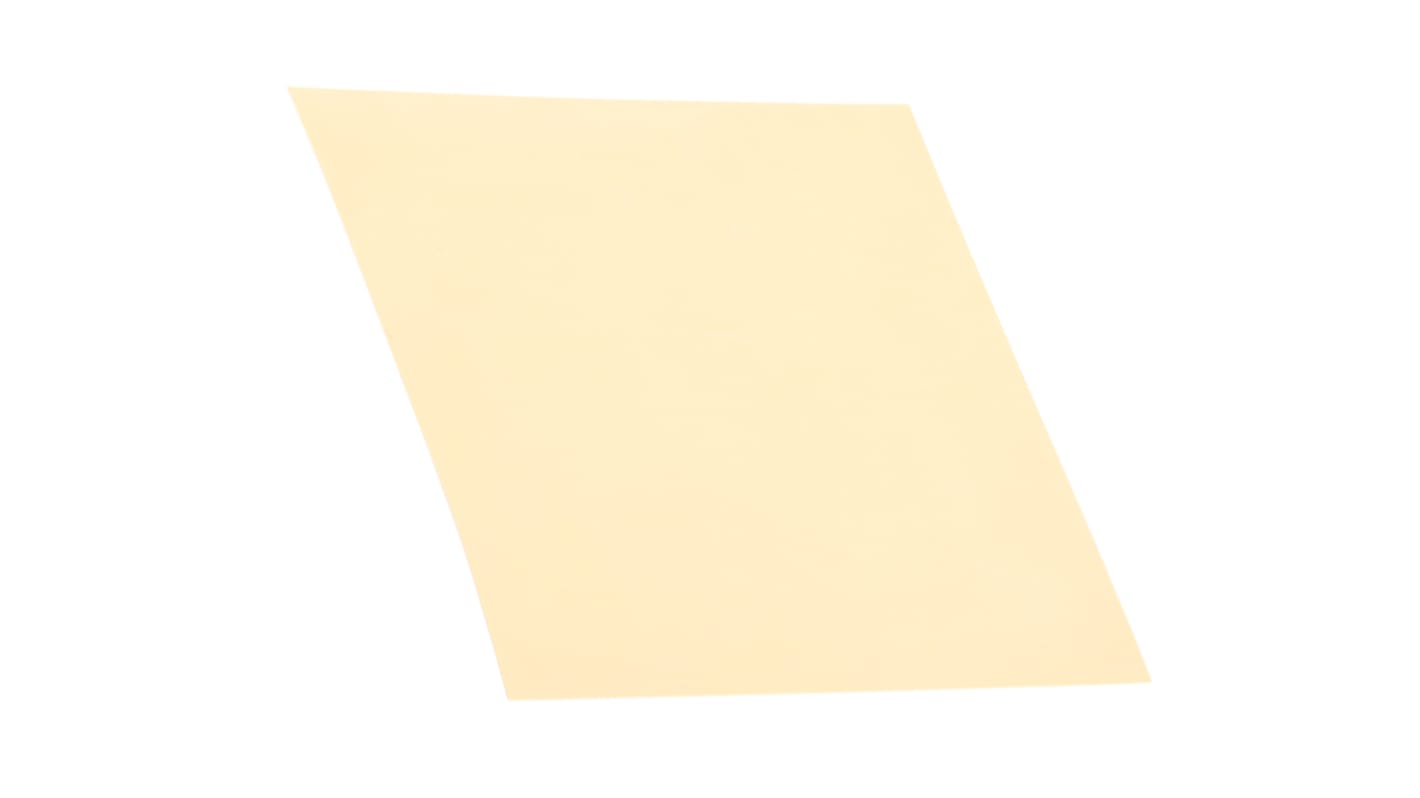

RS PRO Thermal Interface Sheet, 1.4 W/m·K, 150 x 150 mm x 0.45 mm
Use this insulating thermal interface sheet from the RS PRO range to provide insulation between heatsinks and components in your electronic systems. It's ideal to use when there are rough or uneven surfaces that make other forms of insulation difficult to use.
The material used for this product includes fibreglass, which has excellent thermal conductivity and is soft and highly compressible. It's also non-conductive, so it will protect your components and printed circuit boards (PCBs) against electrical discharge. This feature also minimises the risk of fire, keeping your application safe against wear and ensuring a long product life.
This sheet is Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal amounts of any harmful substances. Sheets like this one are often used in flat panel displays, computer hard drives and central processing units (CPUs).
The material used for this product includes fibreglass, which has excellent thermal conductivity and is soft and highly compressible. It's also non-conductive, so it will protect your components and printed circuit boards (PCBs) against electrical discharge. This feature also minimises the risk of fire, keeping your application safe against wear and ensuring a long product life.
This sheet is Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal amounts of any harmful substances. Sheets like this one are often used in flat panel displays, computer hard drives and central processing units (CPUs).
Features and Benefits
- Yellow colour
- Dimensions of 150 (length) x 150 (width) x 0.45 mm (thickness)
- Hardness of 80 Shore A
- Operating temperature range of -40°C to +200°C
- Thermal conductivity of 1.4 W/m·K
Specifications
Attribute | Value |
|---|---|
| Dimensions | 150 x 150mm |
| Thickness | 0.45mm |
| Length | 150mm |
| Width | 150mm |
| Thermal Conductivity | 1.4W/m·K |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +200°C |
| Hardness | Shore A 80 |
| Colour | Yellow |
| Operating Temperature Range | -40 → +200 °C |
