Bergquist Self-Adhesive Thermal Interface Sheet, 0.125in Thick, 2.7W/m·K, Gap Pad 2500, 200 x 100mm
- RS Stock No.:
- 491-0175
- Mfr. Part No.:
- GP2500-0.125-02-00-200X100
- Brand:
- Bergquist

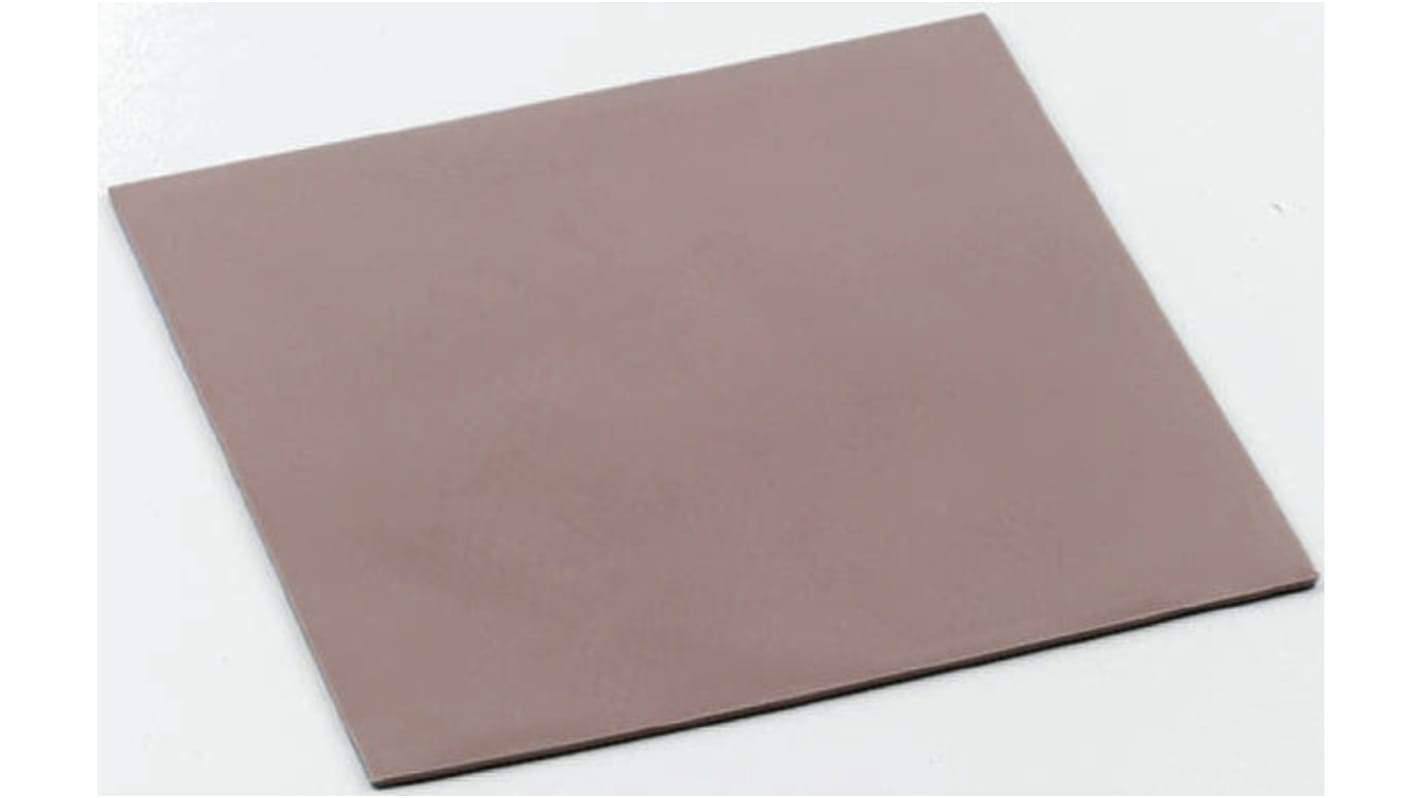

Image representative of range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 491-0175
- Mfr. Part No.:
- GP2500-0.125-02-00-200X100
- Brand:
- Bergquist
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bergquist | |
| Dimensions | 200 x 100mm | |
| Thickness | 0.125in | |
| Length | 200mm | |
| Width | 100mm | |
| Thermal Conductivity | 2.7W/m·K | |
| Material | Gap Pad 2500 | |
| Self-Adhesive | Yes | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +200°C | |
| Hardness | Shore OO 80 | |
| Material Trade Name | Gap Pad 2500 | |
| Operating Temperature Range | -60 → +200 °C | |
Select all | ||
|---|---|---|
Brand Bergquist | ||
Dimensions 200 x 100mm | ||
Thickness 0.125in | ||
Length 200mm | ||
Width 100mm | ||
Thermal Conductivity 2.7W/m·K | ||
Material Gap Pad 2500 | ||
Self-Adhesive Yes | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +200°C | ||
Hardness Shore OO 80 | ||
Material Trade Name Gap Pad 2500 | ||
Operating Temperature Range -60 → +200 °C | ||
- COO (Country of Origin):
- US
Gap Pad® 2500
Electrical insulators and thermal conductors
Adapted for electrical insulation and as thermal joints on assemblies of components where the height varies
The material has excellent elasticity
The thicknesses available (1, 2 & 3.2 mm) mean that GAP Pads can be used when the texture of the surface varies
The Ultra Soft range has the same characteristics but is softer and more malleable
Adapted for electrical insulation and as thermal joints on assemblies of components where the height varies
The material has excellent elasticity
The thicknesses available (1, 2 & 3.2 mm) mean that GAP Pads can be used when the texture of the surface varies
The Ultra Soft range has the same characteristics but is softer and more malleable
