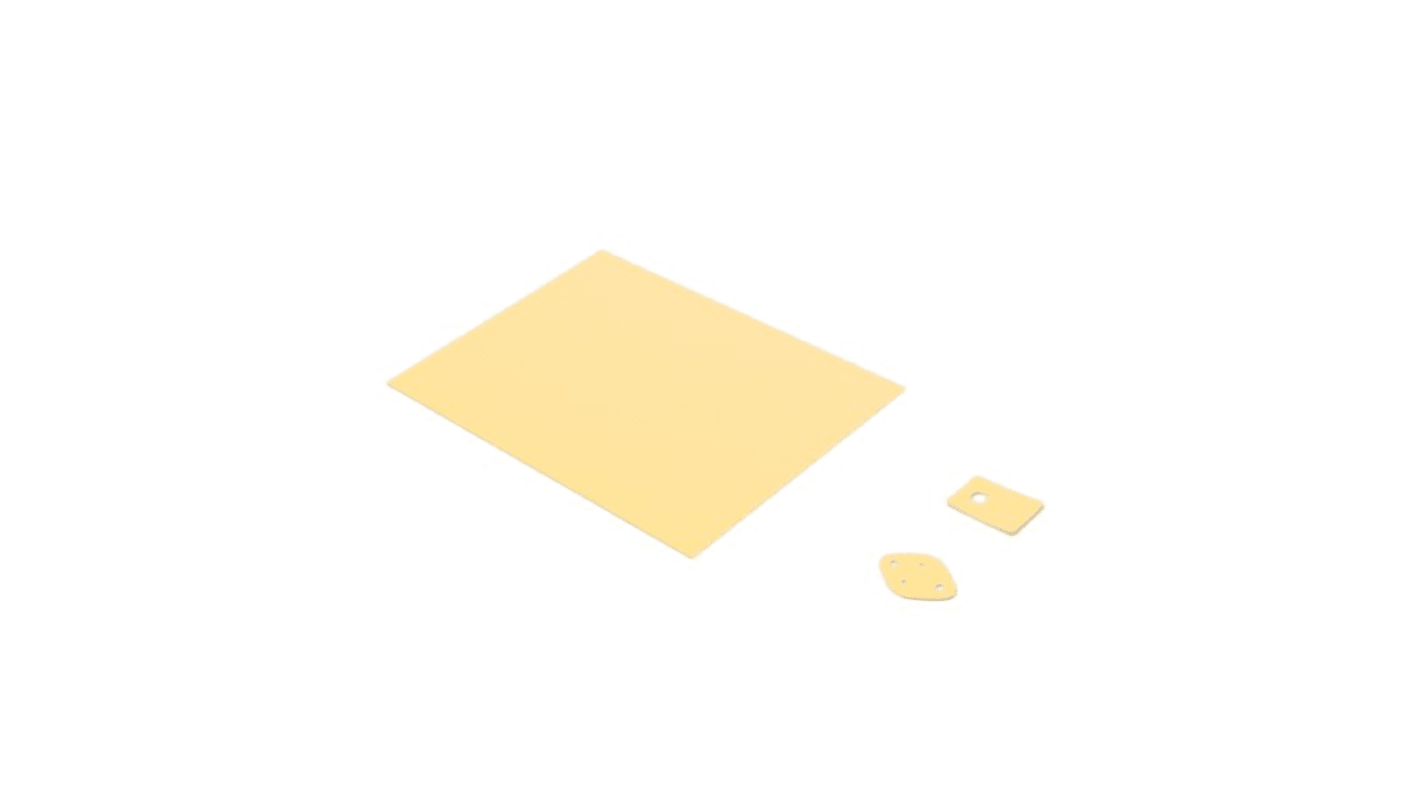

Bergquist PPK1300 Series Self-Adhesive Thermal Interface Pad, 0.006in Thick, 1.3W/m·K, Polyester, 12 x 12 x 0.006in
- RS Stock No.:
- 282-6894
- Mfr. Part No.:
- SIL PAD TSP PPK1300, 12in x 12in x 0.006 aac
- Brand:
- Bergquist
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 282-6894
- Mfr. Part No.:
- SIL PAD TSP PPK1300, 12in x 12in x 0.006 aac
- Brand:
- Bergquist
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bergquist | |
Dimensions | 12 x 12 x 0.006in | |
Thickness | 0.006in | |
Length | 12in | |
Width | 12in | |
Thermal Conductivity | 1.3W/m·K | |
Material | Polyester | |
Self-Adhesive | Yes | |
Series | PPK1300 | |
Select all | ||
---|---|---|
Brand Bergquist | ||
Dimensions 12 x 12 x 0.006in | ||
Thickness 0.006in | ||
Length 12in | ||
Width 12in | ||
Thermal Conductivity 1.3W/m·K | ||
Material Polyester | ||
Self-Adhesive Yes | ||
Series PPK1300 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The Bergquist Polyester-Based, Thermally Conductive Insulation Material. It is a composite of film coated with a polyester resin. The material offers superior thermal performance for your most critical applications with a thermal resistance of 0.2°C as well as excellent dielectric strength. Polyester-based, thermally conductive insulators from Bergquist provide a complete family of materials for silicone-sensitive applications. Poly-Pads are ideally suited for applications requiring conformal coatings or applications where silicone contamination is a concern. Poly Pads are constructed with ceramic-filled polyester resins coating either side of a fiberglass carrier or a film carrier. The Poly Pad family offers a complete range of performance characteristics to match individual applications.
Polyester based
For applications requiring non-silicone conformal coatings
Designed for silicone-sensitive standard applications
Excellent dielectric strength and thermal performance
For applications requiring non-silicone conformal coatings
Designed for silicone-sensitive standard applications
Excellent dielectric strength and thermal performance
