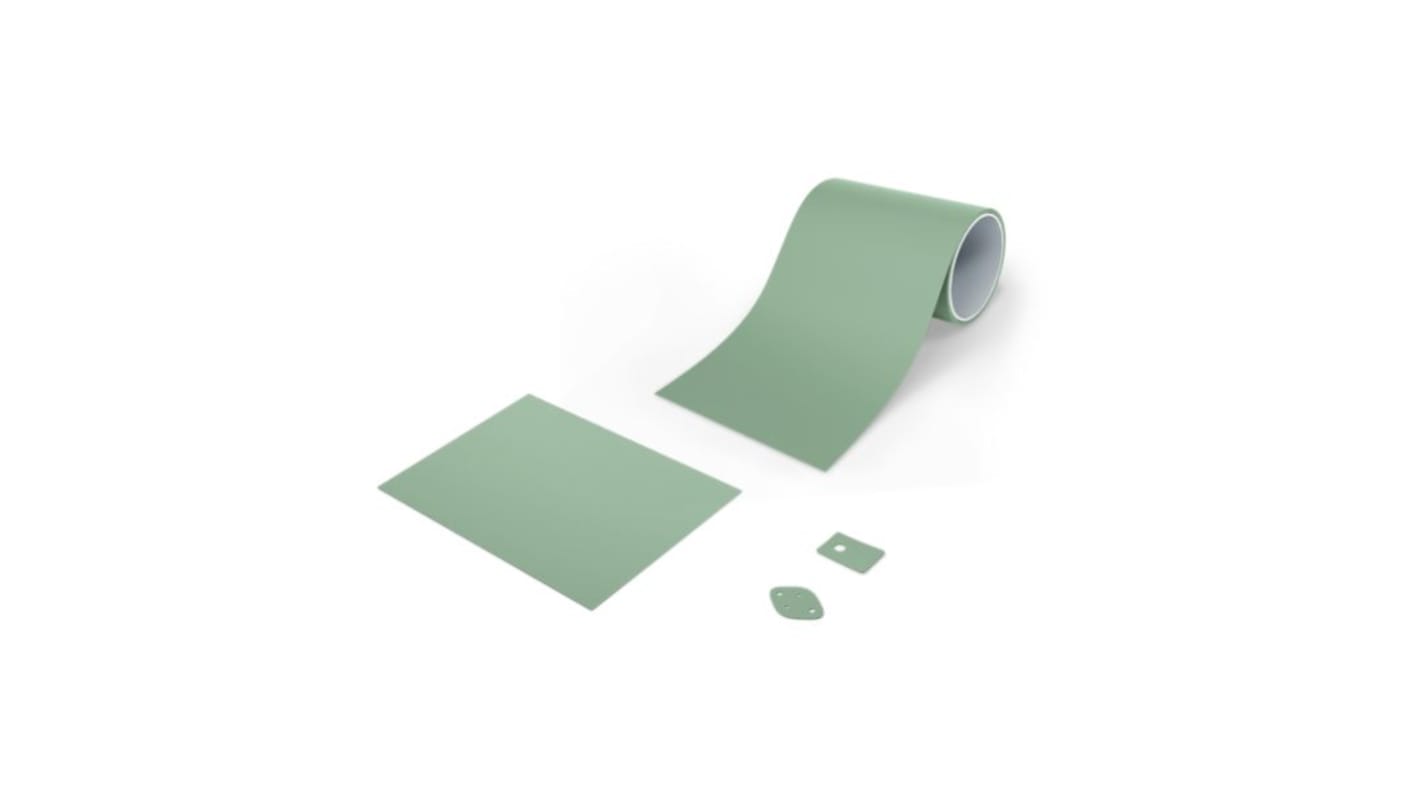

Bergquist 1600P Series Self-Adhesive Thermal Interface Pad, 0.005in Thick, 1.6W/m·K, Phase Change Thermal Interface
- RS Stock No.:
- 282-6841
- Mfr. Part No.:
- HI FLOW THF 1600P, 12in x 10.5in x 0.005
- Brand:
- Bergquist
Subtotal (1 unit)*
£64.12
(exc. VAT)
£76.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £64.12 |
*price indicative
- RS Stock No.:
- 282-6841
- Mfr. Part No.:
- HI FLOW THF 1600P, 12in x 10.5in x 0.005
- Brand:
- Bergquist
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bergquist | |
| Dimensions | 12 x 10.5 x 0.005in | |
| Thickness | 0.005in | |
| Length | 12in | |
| Width | 10.5in | |
| Thermal Conductivity | 1.6W/m·K | |
| Material | Phase Change Thermal Interface Material (PCTIM) | |
| Self-Adhesive | Yes | |
| Series | 1600P | |
| Select all | ||
|---|---|---|
Brand Bergquist | ||
Dimensions 12 x 10.5 x 0.005in | ||
Thickness 0.005in | ||
Length 12in | ||
Width 10.5in | ||
Thermal Conductivity 1.6W/m·K | ||
Material Phase Change Thermal Interface Material (PCTIM) | ||
Self-Adhesive Yes | ||
Series 1600P | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The Bergquist thermally conductive 55°C phase change compound coated on a thermally conductive polyimide film. The polyimide reinforcement makes the material easy to handle and the 55°C phase change temperature minimizes shipping and handling problems.
Field-proven polyimide film
Excellent dielectric performance
Excellent cut-through resistance
Outstanding thermal performance in an insulated pad
Excellent dielectric performance
Excellent cut-through resistance
Outstanding thermal performance in an insulated pad
