Intelligent LED Solutions ILH-xxxx-PCB VER A Series Thermal Gap Pad, 1.6 mm Thick, 20 mm, 20mm, Metal
- RS Stock No.:
- 162-4121
- Mfr. Part No.:
- ILH-X3535-PCB VER A
- Brand:
- Intelligent LED Solutions
Bulk discount available
Subtotal (1 bag of 10 units)*
£16.82
(exc. VAT)
£20.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 630 unit(s) shipping from 04 May 2026
- Plus 120 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 40 | £1.682 | £16.82 |
| 50 - 90 | £1.549 | £15.49 |
| 100 - 240 | £1.442 | £14.42 |
| 250 - 490 | £1.334 | £13.34 |
| 500 + | £1.256 | £12.56 |
*price indicative
- RS Stock No.:
- 162-4121
- Mfr. Part No.:
- ILH-X3535-PCB VER A
- Brand:
- Intelligent LED Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intelligent LED Solutions | |
| Product Type | Thermal Gap Pad | |
| Thickness | 1.6mm | |
| Diameter | 20mm | |
| Self-Adhesive | No | |
| Trade Name | Thermal Adhesive Pads | |
| Conductive Material | Metal | |
| Width | 20mm | |
| Length | 20mm | |
| Standards/Approvals | IEC 61547, CE:EC 61374-2-13, IEC 62471:2006, EN 55015, ENEC:61374-2-13, IEC/EN 62384, IEC 61000-3-2 | |
| Series | ILH-xxxx-PCB VER A | |
| Maximum Operating Temperature | 300°C | |
| Minimum Operating Temperature | -240°C | |
| Select all | ||
|---|---|---|
Brand Intelligent LED Solutions | ||
Product Type Thermal Gap Pad | ||
Thickness 1.6mm | ||
Diameter 20mm | ||
Self-Adhesive No | ||
Trade Name Thermal Adhesive Pads | ||
Conductive Material Metal | ||
Width 20mm | ||
Length 20mm | ||
Standards/Approvals IEC 61547, CE:EC 61374-2-13, IEC 62471:2006, EN 55015, ENEC:61374-2-13, IEC/EN 62384, IEC 61000-3-2 | ||
Series ILH-xxxx-PCB VER A | ||
Maximum Operating Temperature 300°C | ||
Minimum Operating Temperature -240°C | ||

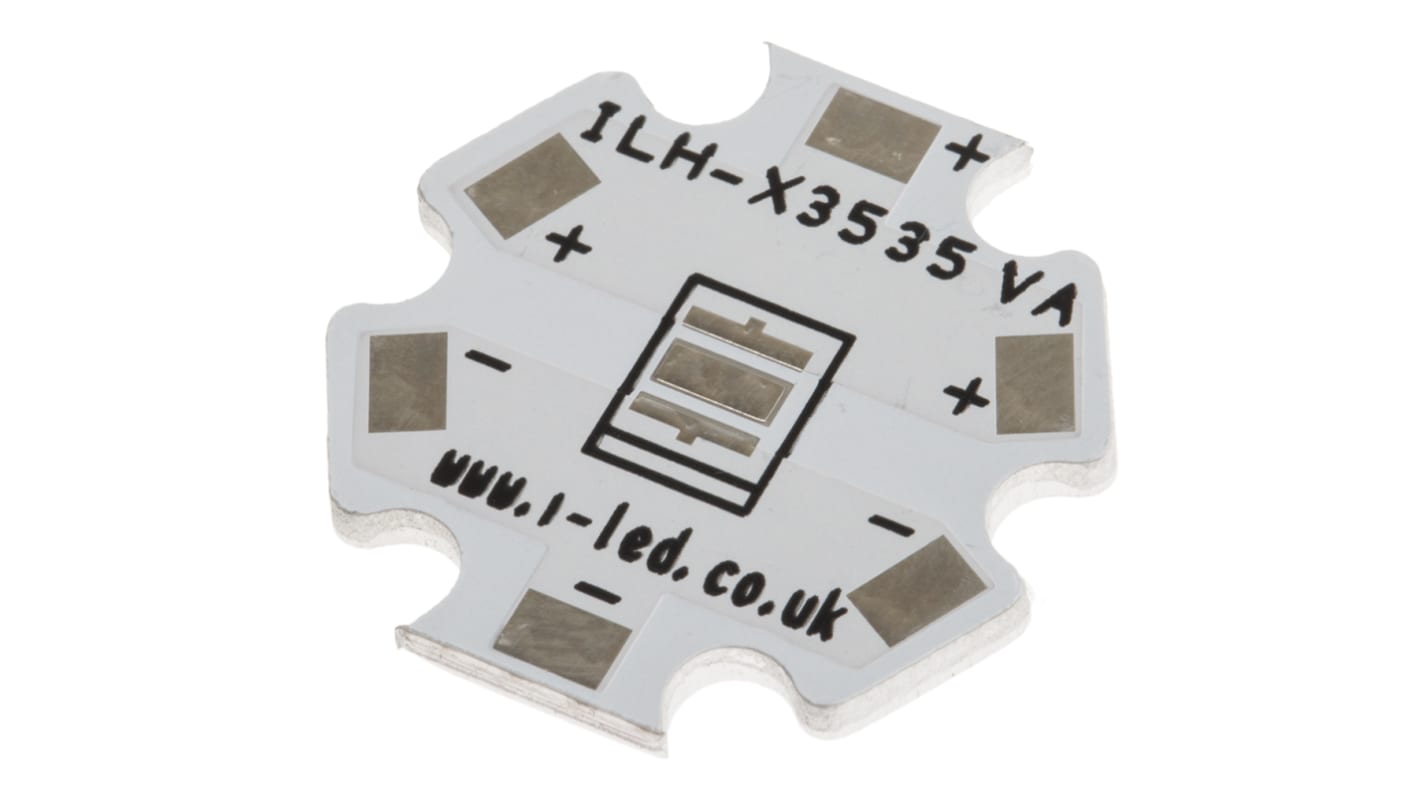

Designed specifically for LED applications, this range of Insulated Metal Substrates (IMS) also known as Metal Clad Printed Circuit Boards, are designed to allow better thermal management also allowing for more forward current to LEDs. Whilst being able to maintain die temperatures, this results in more light with the potential to use less LEDs for the end application.
Designed from the standard hex star board footprint, boards have a range or Heat Sinks and Thermal Interface Materials for easy, plug and play operations.
Compatible LED Families
Cree: XHP35, XP-C, XP-E, XP-E2, XP-G, XP-G2, XP-G3, XP-L, XP-L2, XT-E
Nichia: NVSL119C, NVSW119C, NVSW219C, NVSL219C, NVSW119B-V1, NVSL119B-V1, NVSW219B-V1, NVSL219B-V1, NCSW119B-V1, NCSL119B-V1 and NCSW219B-V1
LumiLED: Luxeon Q Seoul: Z5, Z5P, Z5M
Samsung: LH351D and LH351B LG: H35C4, H35F0, H35A0, H35B0 and H35C0 TSLC: N3535, C3535
