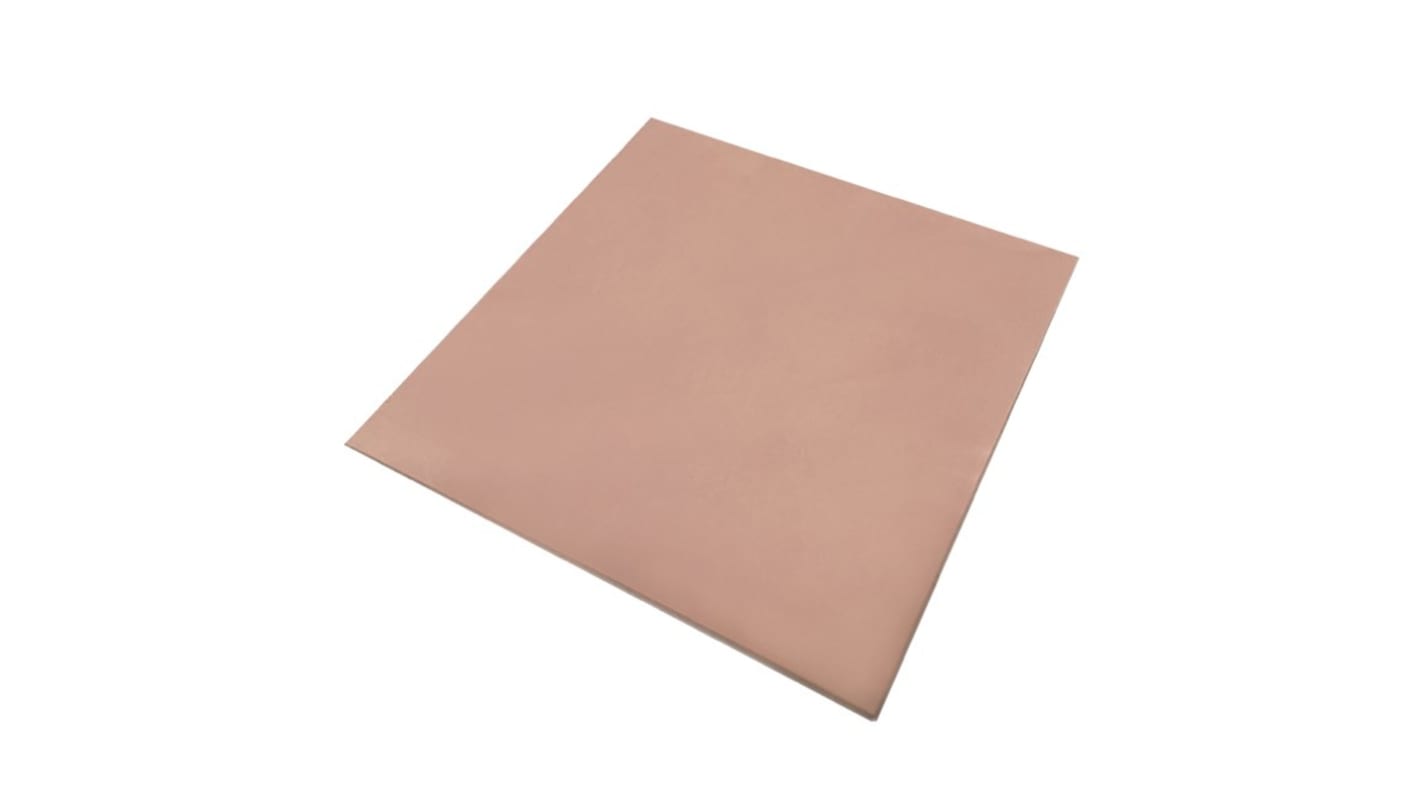

Electrolube Electrolube GFP500 Series Thermal Gap Pad, 3mm Thick, 5W/m·K, Silicone, 320 x 320mm

View all Thermal Pads

Subtotal (1 box of 10 units)*

£2,552.33

(exc. VAT)

£3,062.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£2,552.33£255.233

*price indicative

RS Stock No.:
665-324
Mfr. Part No.:
GFP500 320*320*3,0T/mm
Brand:
Electrolube
Find similar products by selecting one or more attributes.
Select all

Brand

Electrolube

Dimensions

320 x 320mm

Thickness

3mm

Length

320mm

Width

320mm

Thermal Conductivity

5W/m·K

Material

Silicone

Series

Electrolube GFP500

RoHS Status: Exempt

COO (Country of Origin):
TW
The Electrolube GFP500 is a silicone based, thermally conductive and electrically isolating gap filling pad with a high thermal conductivity of 5.0 W/m-K. Due to its flexibility and softness, the GFP500 is highly suitable for applications where height differences need to be adjusted. The material easily conforms to irregular surfaces, minimizing the overall thermal impedance.

Thermal conductivity of 5.0 W/m-K

aids rapid heat transfer over uneven surfaces
Very soft, requires low compression force to ensure good wet-out
Natural tack for easy processing and reduced interfacial resistance
Available in a range of thicknesses and die-cut formats
