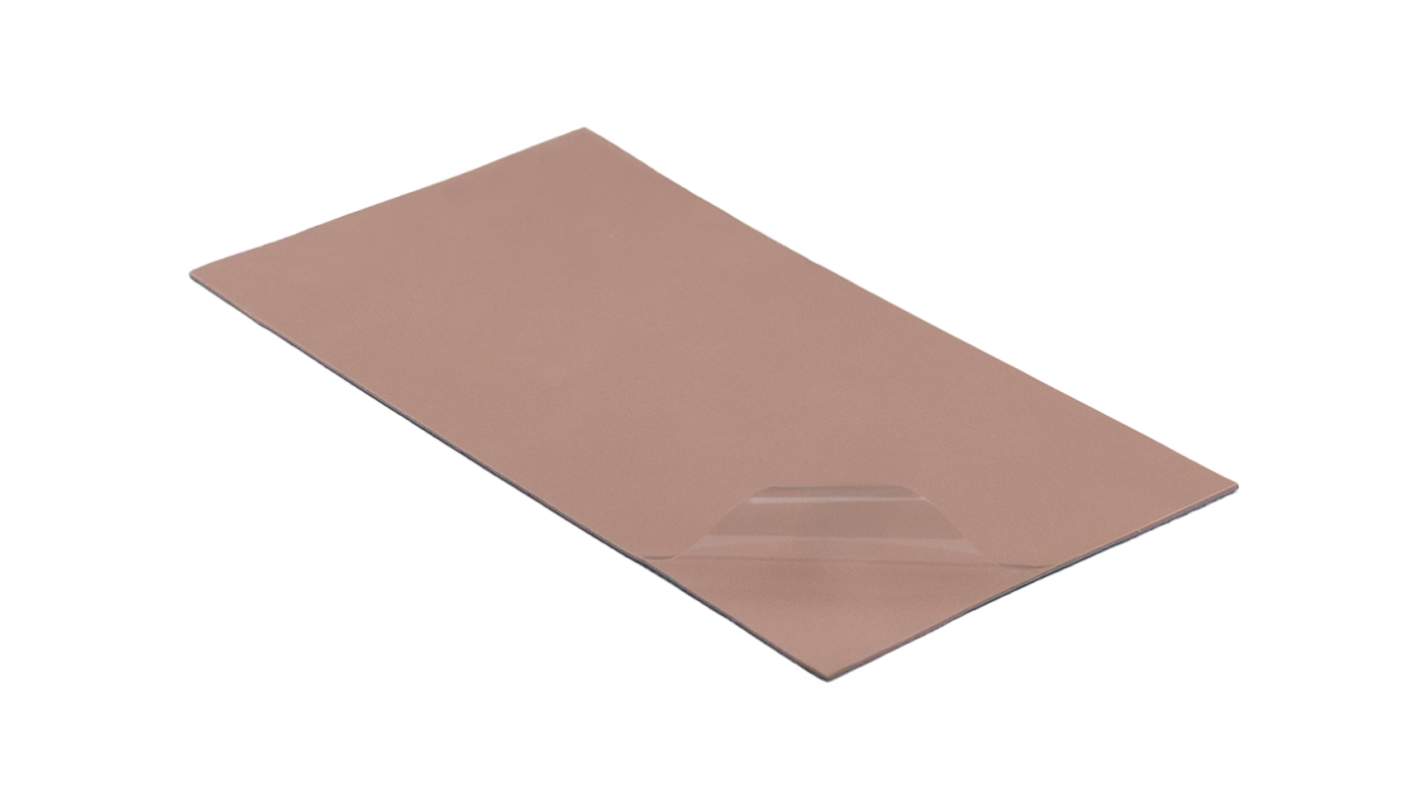

RS PRO Thermal Conductive Pad, 1 mm Thick, 6 W/mK, 200 mm, 100mm, Silicone
- RS Stock No.:
- 625-763
- Brand:
- RS PRO
Subtotal (1 unit)*
£70.46
(exc. VAT)
£84.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £70.46 |
*price indicative
- RS Stock No.:
- 625-763
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Thermal Conductive Pad | |
| Thickness | 1mm | |
| Thermal Conductivity | 6W/mK | |
| Self-Adhesive | No | |
| Trade Name | RS PRO | |
| Hardness | 65 Shore 00 | |
| Conductive Material | Silicone | |
| Length | 200mm | |
| Width | 100mm | |
| Standards/Approvals | REACH, RoHS | |
| Colour | Brick Red | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 200°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Thermal Conductive Pad | ||
Thickness 1mm | ||
Thermal Conductivity 6W/mK | ||
Self-Adhesive No | ||
Trade Name RS PRO | ||
Hardness 65 Shore 00 | ||
Conductive Material Silicone | ||
Length 200mm | ||
Width 100mm | ||
Standards/Approvals REACH, RoHS | ||
Colour Brick Red | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 200°C | ||
- COO (Country of Origin):
- PL
The RS Pro Thermal pads have excellent filling and thermal conductivity; their softness and elastic qualities allow them to quickly dissipate heat, improve work efficiency, and prolong the equipment's service life by filling in air gaps between hot components and heat sinks, metal bodies, and chassis. It has a dielectric strength of 6 kV/mm and thermal conductivity of 6 W/m*K.
Silicone based thermal pad
Excellent filling properties
65 Shore 00 Hardness
REACH and RoHS compliant
