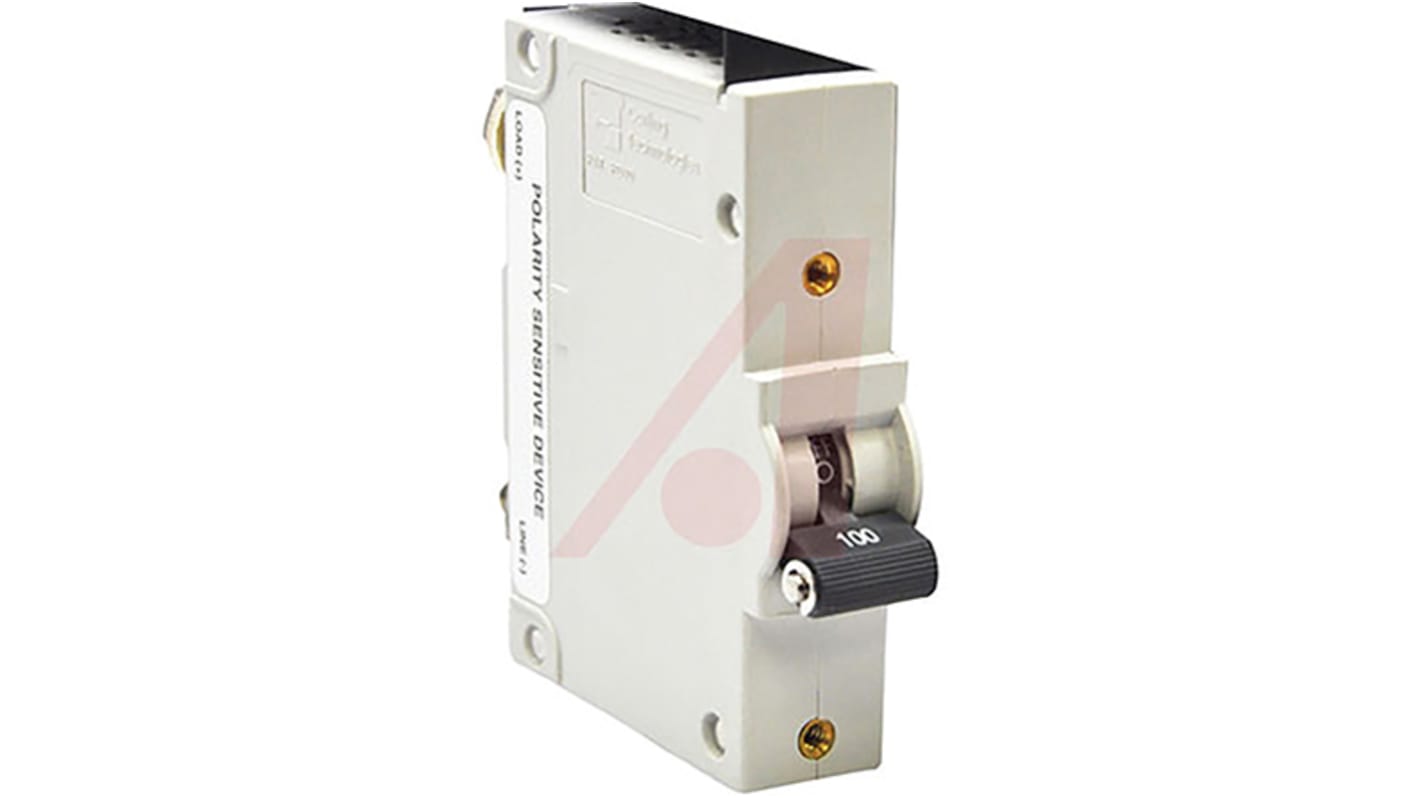

Carling Technologies Thermal Circuit Breaker - CX Single Pole 600V ac Voltage Rating Panel Mount, 15A Current Rating
- RS Stock No.:
- 881-1182
- Mfr. Part No.:
- CX1-B0-14-615-32A-12G
- Brand:
- Carling Technologies
Subtotal (1 pack of 10 units)*
£1,173.53
(exc. VAT)
£1,408.24
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 26 February 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £117.353 | £1,173.53 |
*price indicative
- RS Stock No.:
- 881-1182
- Mfr. Part No.:
- CX1-B0-14-615-32A-12G
- Brand:
- Carling Technologies
Select all | Attribute | Value |
|---|---|---|
| Brand | Carling Technologies | |
| Current Rating | 15A | |
| Number of Poles | 1 | |
| Voltage Rating | 600V ac | |
| Series | CX | |
| Application | Photovoltaic Renewable Energy System, Power Distribution Equipment | |
| Tripping Mechanism | Hydraulic-Magnetic | |
| Reset Actuator Type | Handle | |
| Mounting Style | Panel Mount | |
| Special Features | Choice of 6-32 or M3 Mounting Inserts Providing Secure Panel Mount Installation, Optional Relay Trip Circuit Permitting Remote Operator System Shut Down | |
| Overall Depth | 72.1mm | |
| Overall Length | 19.2mm | |
| Break Time | Short | |
| Rated DC Voltage | 600V | |
| Terminal Contact Type | Stud | |
| Mounting Hole Size | 19.3 x 52.37mm | |
| Overall Dimensions | 19.18 x 78.59 x 72.1mm | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
| Breaking Capacity at Maximum Voltage Rating | 3000 A @ 300 V dc | |
| Select all | ||
|---|---|---|
Brand Carling Technologies | ||
Current Rating 15A | ||
Number of Poles 1 | ||
Voltage Rating 600V ac | ||
Series CX | ||
Application Photovoltaic Renewable Energy System, Power Distribution Equipment | ||
Tripping Mechanism Hydraulic-Magnetic | ||
Reset Actuator Type Handle | ||
Mounting Style Panel Mount | ||
Special Features Choice of 6-32 or M3 Mounting Inserts Providing Secure Panel Mount Installation, Optional Relay Trip Circuit Permitting Remote Operator System Shut Down | ||
Overall Depth 72.1mm | ||
Overall Length 19.2mm | ||
Break Time Short | ||
Rated DC Voltage 600V | ||
Terminal Contact Type Stud | ||
Mounting Hole Size 19.3 x 52.37mm | ||
Overall Dimensions 19.18 x 78.59 x 72.1mm | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
Breaking Capacity at Maximum Voltage Rating 3000 A @ 300 V dc | ||
- COO (Country of Origin):
- MX
Carling Technologies CX-Series Circuit Breakers
Optional relay trip circuit permitting remote operator system shut down
Perfect fit for 380VDC applications
Trips on overload even when actuator is forcibly held in the “On” position
Shock, Vibration and moisture resistant
