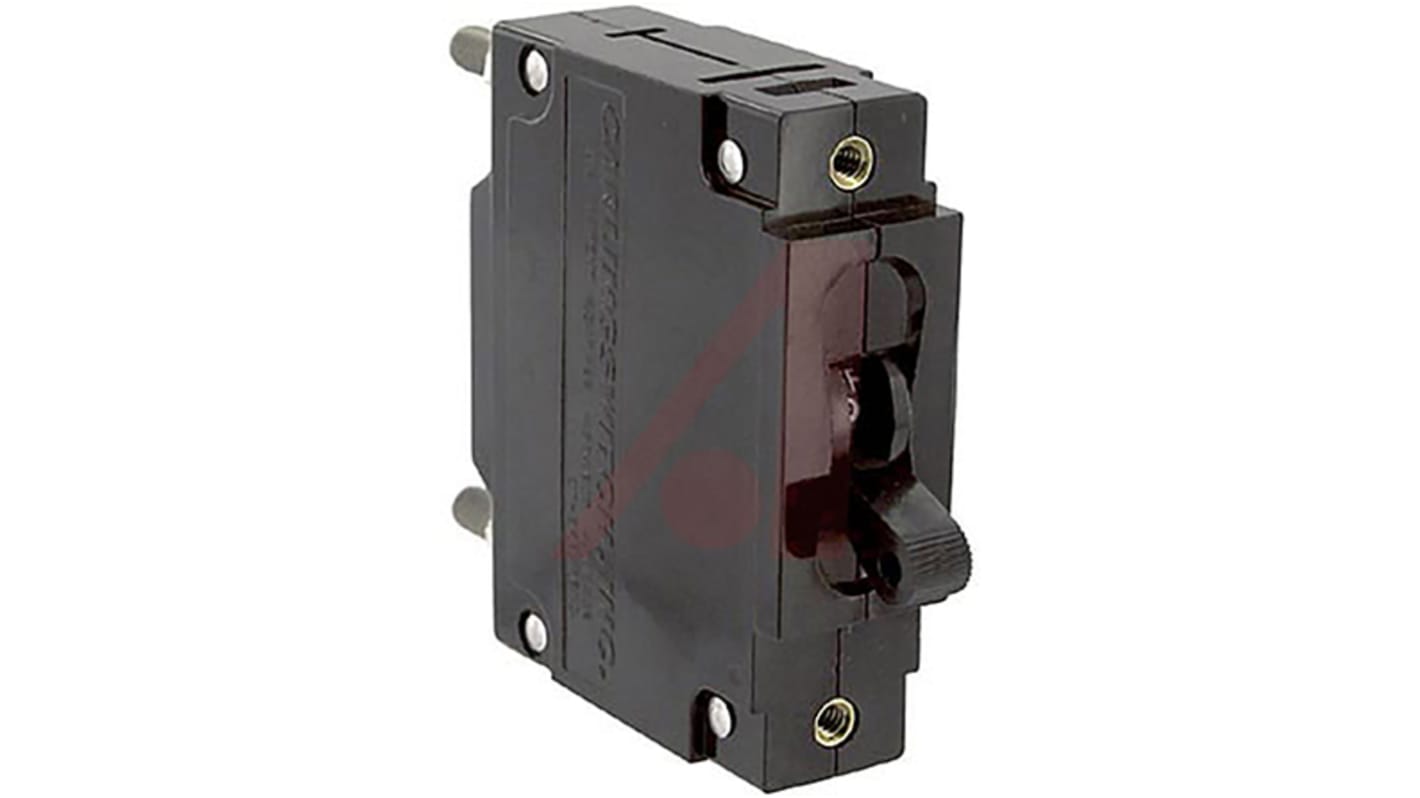

Carling Technologies Thermal Circuit Breaker - C Single Pole 240V Voltage Rating Panel Mount, 10A Current Rating
- RS Stock No.:
- 881-0820
- Mfr. Part No.:
- CA1-B0-34-610-121-C
- Brand:
- Carling Technologies
Subtotal (1 unit)*
£25.54
(exc. VAT)
£30.65
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 03 February 2026
Units | Per unit |
|---|---|
| 1 + | £25.54 |
*price indicative
- RS Stock No.:
- 881-0820
- Mfr. Part No.:
- CA1-B0-34-610-121-C
- Brand:
- Carling Technologies
Select all | Attribute | Value |
|---|---|---|
| Brand | Carling Technologies | |
| Current Rating | 10A | |
| Number of Poles | 1 | |
| Voltage Rating | 240V | |
| Series | C | |
| Application | General Purpose | |
| Tripping Mechanism | Hydraulic-Magnetic | |
| Reset Actuator Type | Handle | |
| Rated AC Voltage | 240V | |
| Mounting Style | Panel Mount | |
| Breaking Capacity at Maximum Voltage Rating | 10000 A @ 277 V ac, 5000 A @ 125/250 V dc | |
| Mounting Hole Size | 19.3 x 52.37mm | |
| Overall Dimensions | 19.18 x 63.5 x 64.53mm | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
| Break Time | Medium | |
| Overall Length | 19.2mm | |
| Terminal Contact Type | Stud | |
| Rated DC Voltage | 150V | |
| Special Features | The UL489 C-Series Employs A Unique Arc Chute Design Which Allows For Higher Interrupting Capacities Of Up to 10,000 Amps. New Thermoset Glass Filled Polyester Half Shell Construction Provides For Increased Mechanical and Electrical Strength | |
| Overall Depth | 64.5mm | |
Select all | ||
|---|---|---|
Brand Carling Technologies | ||
Current Rating 10A | ||
Number of Poles 1 | ||
Voltage Rating 240V | ||
Series C | ||
Application General Purpose | ||
Tripping Mechanism Hydraulic-Magnetic | ||
Reset Actuator Type Handle | ||
Rated AC Voltage 240V | ||
Mounting Style Panel Mount | ||
Breaking Capacity at Maximum Voltage Rating 10000 A @ 277 V ac, 5000 A @ 125/250 V dc | ||
Mounting Hole Size 19.3 x 52.37mm | ||
Overall Dimensions 19.18 x 63.5 x 64.53mm | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
Break Time Medium | ||
Overall Length 19.2mm | ||
Terminal Contact Type Stud | ||
Rated DC Voltage 150V | ||
Special Features The UL489 C-Series Employs A Unique Arc Chute Design Which Allows For Higher Interrupting Capacities Of Up to 10,000 Amps. New Thermoset Glass Filled Polyester Half Shell Construction Provides For Increased Mechanical and Electrical Strength | ||
Overall Depth 64.5mm | ||
- COO (Country of Origin):
- MX
Carling Technologies C-Series Circuit Breakers
The C-Series employs a unique arc chute design which allows for higher interrupting capacities of up to 10,000 amps. A thermoset glass filled polyester half shell construction provides for increased mechanical and electrical strength. The wiping contacts, mechanical linkage with two step actuation, and clean contacts provide high, positive contact pressure and longer contact life.
Visual indication of electrical overload with or without alarm feature
Exclusive Rockerguard and Push-To-Reset bezel help prevent inadvertent actuation
