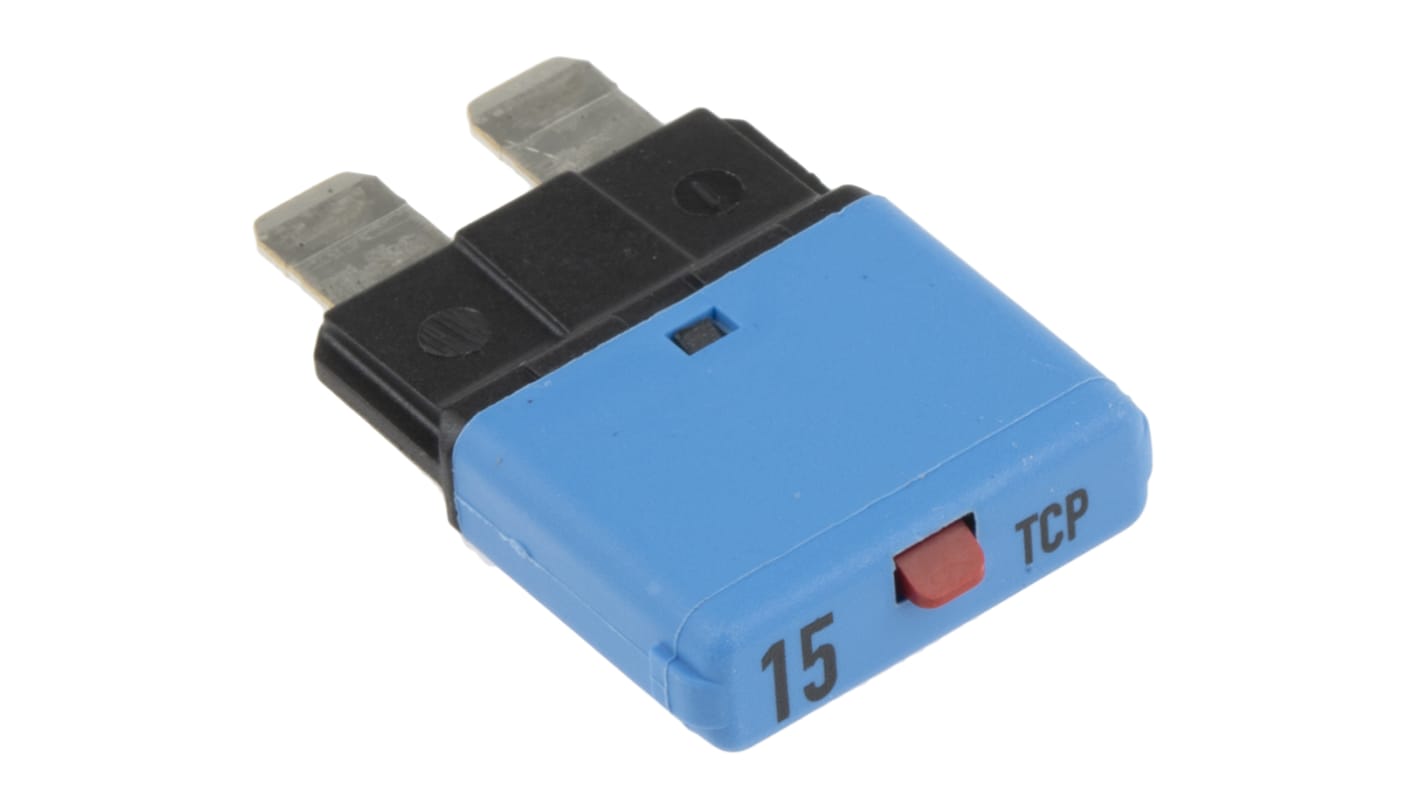

Phoenix Contact Thermal Circuit Breaker - TCP 15/DC32V Single Pole 32V dc Voltage Rating, 15A Current Rating
- RS Stock No.:
- 652-3458
- Mfr. Part No.:
- 0700015
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.57
(exc. VAT)
£6.68
(inc. VAT)
- RS Stock No.:
- 652-3458
- Mfr. Part No.:
- 0700015
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Current Rating | 15A | |
Number of Poles | 1 | |
Voltage Rating | 32V dc | |
Width | 6mm | |
Series | TCP 15/DC32V | |
Circuit Breaker Type | Thermal Automotive Circuit Breaker | |
Breaking Capacity at Maximum Voltage Rating | 150 A | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Current Rating 15A | ||
Number of Poles 1 | ||
Voltage Rating 32V dc | ||
Width 6mm | ||
Series TCP 15/DC32V | ||
Circuit Breaker Type Thermal Automotive Circuit Breaker | ||
Breaking Capacity at Maximum Voltage Rating 150 A | ||
- COO (Country of Origin):
- DE
Phoenix Contact TCP Thermal Circuit Breakers
The compact, single pole, snap-in TCP series of thermal device circuit breakers combine a flat fuse safety guard mechanism with the advantages of an automatic circuit breaker.
Features and Benefits
• Rearm function on top
• Can be used in all battery systems up to 32 V dc
• Standard Terminal for DIN Rail Mounted Fuseholder can be ordered separately
• Precise nominal current levels
• 6mm wide
• Suitable for all flat-type fuse inserts
• Immediate restart after tripping
• Can be used in all battery systems up to 32 V dc
• Standard Terminal for DIN Rail Mounted Fuseholder can be ordered separately
• Precise nominal current levels
• 6mm wide
• Suitable for all flat-type fuse inserts
• Immediate restart after tripping
Typical Applications
The automotive thermal circuit breakers are suitable for using with system based sensors and actuators. Typically motors, devices with a high starting current, fans and heating elements.
