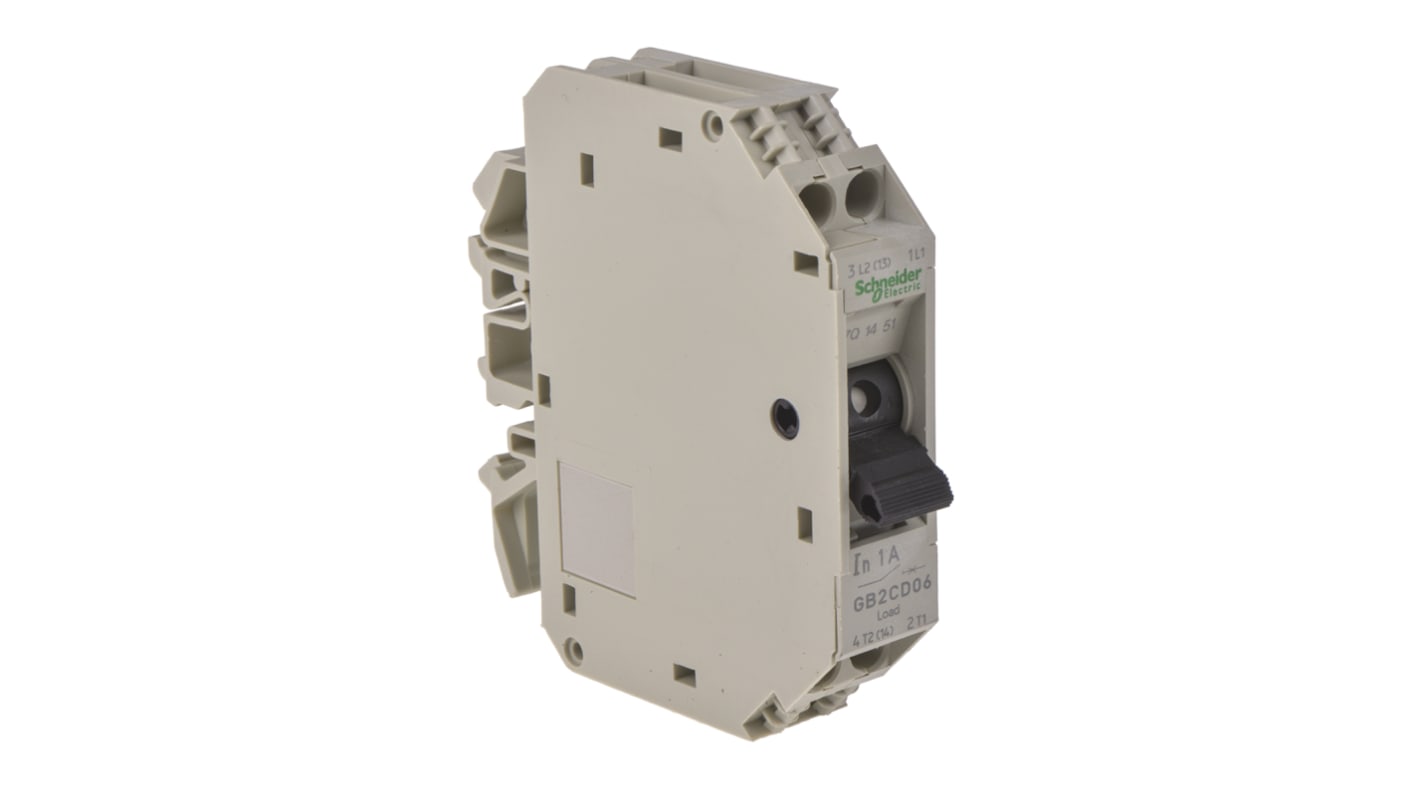

Name: Schneider Electric TeSys TeSyS GB2 Thermal Circuit Breaker - 1-Pole, DIN Rail, 1 A Current Rating, 1.5 kA, 110 V ac, 48
Brand: Schneider Electric
SKU: 323-8999
Price: 57.20 GBP
Availability: InStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Thermal Circuit Breaker
	Series	TeSyS GB2
	Range	TeSys
	Number of Poles	1
	Mount Type	DIN Rail
	Terminal Type	Screw
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Toggle Switch
	Depth	70mm
	Height	80mm
	Standards/Approvals	RoHS, CE
	Breaking Capacity	1.5kA
	Break Time	Medium

	Select all
	Brand Schneider Electric
	Product Type Thermal Circuit Breaker
	Series TeSyS GB2
	Range TeSys
	Number of Poles 1
	Mount Type DIN Rail
	Terminal Type Screw
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Toggle Switch
	Depth 70mm
	Height 80mm
	Standards/Approvals RoHS, CE
	Breaking Capacity 1.5kA
	Break Time Medium

Login to download CAD Models

Schneider Electric GB2 Series Thermal Circuit Breaker, 1A Current, 10kA Breaking Capacity - GB2CD06

This thermal circuit-breaker provides Compact overcurrent protection for control and distribution panels in industrial electrical networks. It combines thermal and magnetic tripping to protect circuits against overloads and short circuits while being suited to DIN-rail mounting in automation and electrical installations.

Features & Benefits

• 1A rated current offering precise protection for low-current circuits
• 10 kA breaking capacity enabling secure interruption of fault currents
• Thermal-magnetic trip unit for overload and short-circuit discrimination
• Toggle reset actuator for Rapid manual reclosure after fault clearance
• IP20 protection ensuring Basic finger-safe access in panel environments
• 4 kV impulse withstand voltage tolerating transient overvoltages

Applications

• Suitable for control panel circuits in industrial automation systems
• Ideal for protecting control transformers and small loads
• Used with PLC input power feeds requiring Compact protection
• Can be used for branch circuits in machinery control cabinets
• Suitable for retrofit on existing DIN-rail assemblies

What Terminal connections are supported for field wiring?

It accepts solid conductors up to 6mm² and flexible conductors with ferrules to 4mm² on one side and to 2.5mm² on the other, tightened to 1.2 N·m.

How does mechanical and electrical durability affect maintenance schedules?

Both mechanical and electrical lifetimes are specified at 8,000 cycles, allowing predictable replacement intervals based on operational switching frequency.

What environmental limits govern installation locations?

It operates between −20 to 60 °C, stores between −40 to 80 °C, and is rated for use up to 3,000 m altitude.

How is the device mounted and positioned within enclosures?

It clips to standard DIN rail or plate supports and may be installed horisontally or vertically.

What regulatory approvals does the unit hold for industrial use?

It carries recognised certifications to EN/IEC standards Plus UL and CSA listings for use in compliant electrical equipment.

Standards

IEC947-2
