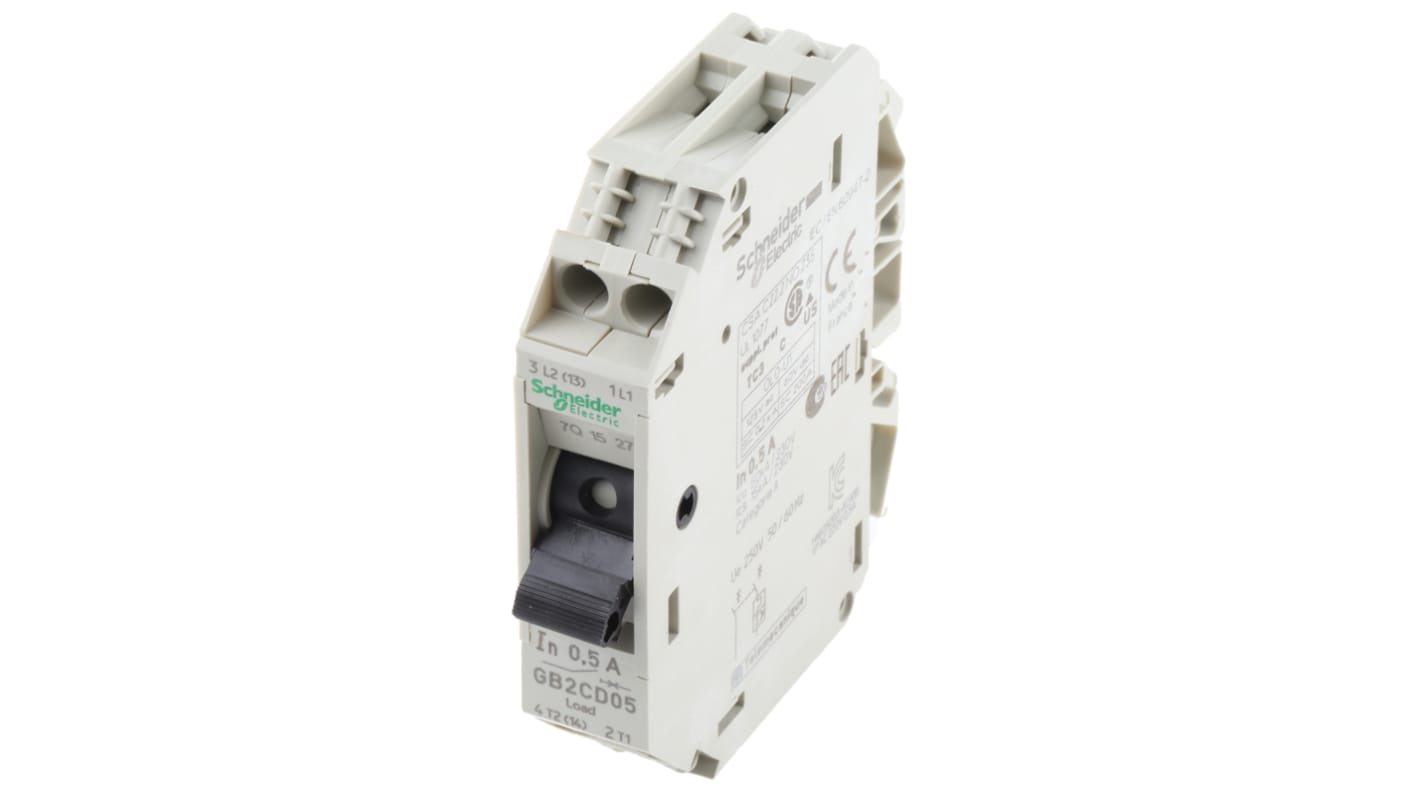

Schneider Electric Thermal Circuit Breaker - GB2 1P + N Pole 250V ac Voltage Rating DIN Rail Mount, 500mA Current Rating
- RS Stock No.:
- 323-8983
- Mfr. Part No.:
- GB2CD05
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£47.67
(exc. VAT)
£57.20
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 14 left, ready to ship from another location
- Plus 12 left, shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.67 |
*price indicative
- RS Stock No.:
- 323-8983
- Mfr. Part No.:
- GB2CD05
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 500mA | |
| Number of Poles | 1P + N | |
| Voltage Rating | 250V ac | |
| Width | 15mm | |
| Series | GB2 | |
| Mounting Style | DIN Rail Mount | |
| Overall Dimensions | 74 x 15 x 82mm | |
| Overall Length | 74mm | |
| Overall Depth | 82mm | |
| Breaking Capacity at Maximum Voltage Rating | 1 (dc) kA, 50 (ac) kA | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 500mA | ||
Number of Poles 1P + N | ||
Voltage Rating 250V ac | ||
Width 15mm | ||
Series GB2 | ||
Mounting Style DIN Rail Mount | ||
Overall Dimensions 74 x 15 x 82mm | ||
Overall Length 74mm | ||
Overall Depth 82mm | ||
Breaking Capacity at Maximum Voltage Rating 1 (dc) kA, 50 (ac) kA | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
Non Compliant
- COO (Country of Origin):
- FR
GB2 Thermal Magnetic Circuit Breakers
DIN rail mounted, mechanically reset protection devices.
Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc
Rated operational voltage of 415V
74mm high; depth 67mm (1P) 70mm (2P)
Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc
Rated operational voltage of 415V
74mm high; depth 67mm (1P) 70mm (2P)
Standards
IEC947-2
