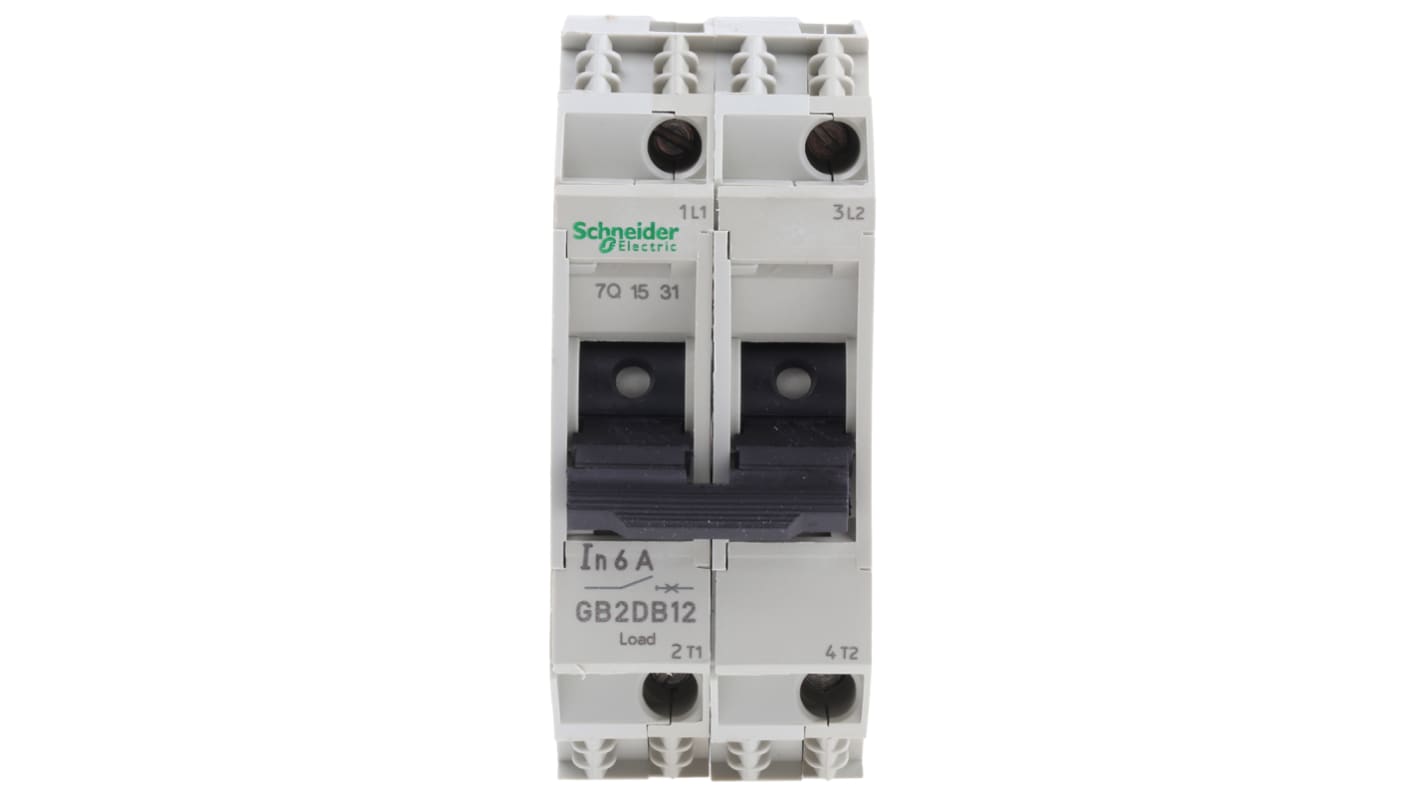

Schneider Electric TeSys TeSyS GB2 Thermal Circuit Breaker - 2-Pole, DIN Rail, 6 A Current Rating, 1.5 kA, 110 V ac, 48

RS Stock No.:: 312-3831
Mfr. Part No.:: GB2DB12
Brand:: Schneider Electric

Schneider Electric TeSys TeSyS GB2 Thermal Circuit Breaker - 2-Pole, DIN Rail, 6 A Current Rating, 1.5 kA, 110 V ac, 48

Subtotal (1 unit)*

£63.57

(exc. VAT)

£76.28

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 4 unit(s) shipping from 23 March 2026
Plus 19 unit(s) shipping from 23 March 2026
Plus 9 unit(s) shipping from 09 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£63.57

*price indicative

RS Stock No.:: 312-3831
Mfr. Part No.:: GB2DB12
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Current Rating	6 A
	Product Type	Thermal Circuit Breaker
	Range	TeSys
	Series	TeSyS GB2
	Number of Poles	2
	Width	30 mm
	Mount Type	DIN Rail
	Terminal Type	Screw
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Toggle Switch
	Standards/Approvals	RoHS, CE
	Rated AC Voltage	110 V ac
	Height	80mm
	Depth	70mm
	Rated DC Voltage	48 V dc
	Breaking Capacity	1.5kA
	Break Time	Medium

	Select all
	Brand Schneider Electric
	Current Rating 6 A
	Product Type Thermal Circuit Breaker
	Range TeSys
	Series TeSyS GB2
	Number of Poles 2
	Width 30 mm
	Mount Type DIN Rail
	Terminal Type Screw
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Toggle Switch
	Standards/Approvals RoHS, CE
	Rated AC Voltage 110 V ac
	Height 80mm
	Depth 70mm
	Rated DC Voltage 48 V dc
	Breaking Capacity 1.5kA
	Break Time Medium

Non Compliant

COO (Country of Origin):: FR

Schneider Electric GB2 Series Thermal Circuit Breaker, 6A Current Rating, 415V Rated Voltage - GB2DB12

This thermal circuit breaker is designed specifically for control circuit protection within automation and electrical systems. Engineered to accommodate a current rating of 6A, it features a compact DIN rail-mounted design. Its balanced dimensions of 74mm in length, 30mm in width, and 85mm in depth ensure seamless integration in various electrical panels.

Features & Benefits

• 2 pole circuit breaker effectively isolates control circuits

• Thermal-magnetic tripping mechanism enhances reliability

• Rated operational voltage of 415V AC supports high demand

• Breaking capacity of 1.5kA at 415V assists in safeguarding systems

• Durable for 8000 electrical and mechanical cycles

• Versatile mounting options for horisontal or vertical installations

Applications

• Used with control circuits in automation systems

• Suitable for 415V AC voltage networks

• Ideal for installations requiring DIN rail mounting

• Utilised in various environments with temperature ranges from -20°C to 60°C

How does the thermal-magnetic tripping mechanism improve functionality?

The thermal-magnetic tripping mechanism provides dual protection by reacting to both overcurrent conditions and electromechanical faults, ensuring timely disconnection to prevent equipment damage.

What are the connection terminal specifications?

The device features terminals accommodating solid wires from 0.75mm² to 6mm² without cable ends and for flexible wires with cable ends, making it versatile for various installation needs.

What is the significance of its IP20 rating?

An IP20 rating indicates protection against solid objects greater than 12mm, making it suitable for indoor environments where exposure to water or dust is minimal.

What are the implications of its ambient temperature rating?

The operational range of -20°C to 60°C ensures reliable performance in various climates, making it suitable for diverse industrial applications.

How many units are typically included in a package for bulk ordering?

The thermal circuit breaker is commonly packaged in sets of three for bulk orders, allowing for efficient project planning and procurement.
