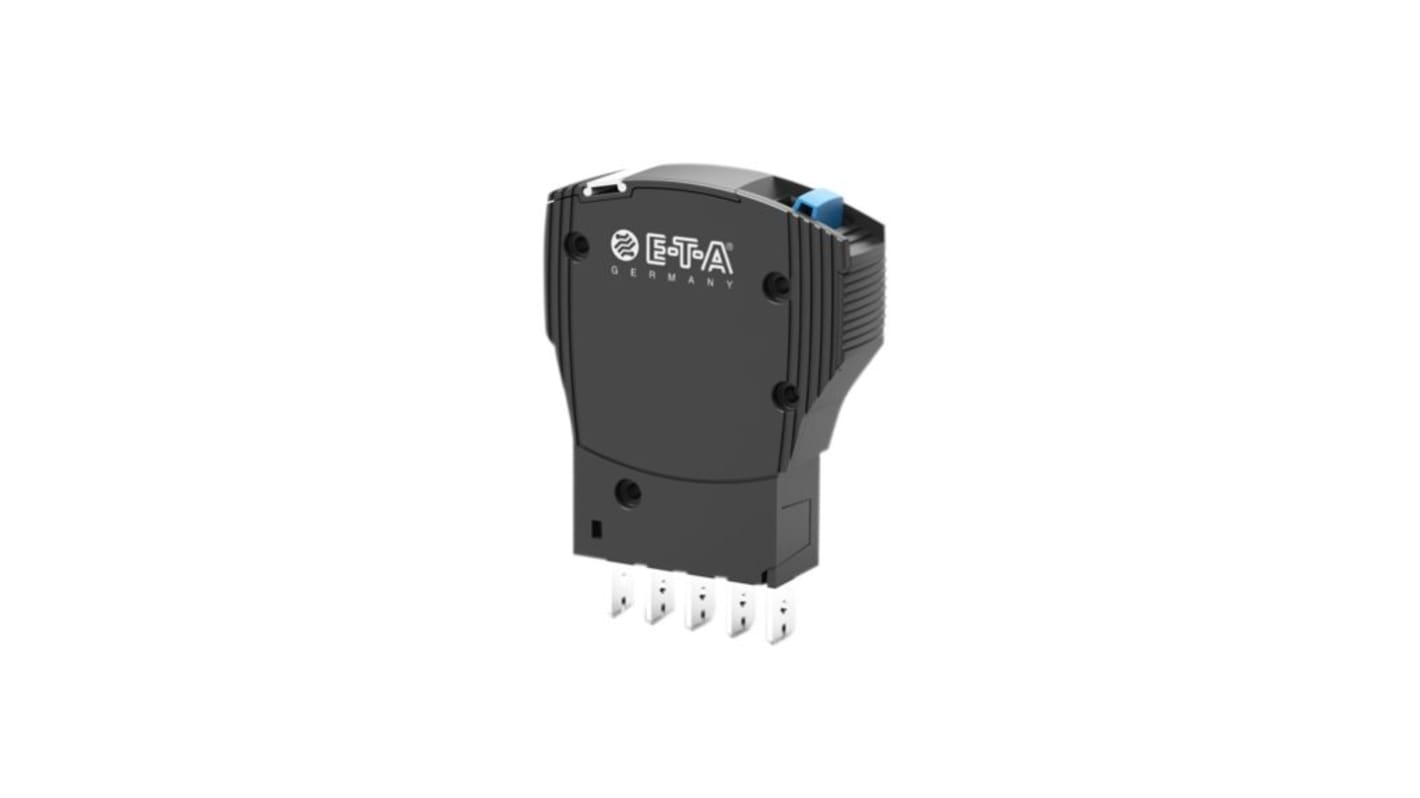

ETA 2216-S11 2216 Thermal Circuit Breaker - 1-Pole, 4A Current Rating, 300 A, 240V ac, 80 V dc
- RS Stock No.:
- 288-4071
- Distrelec Article No.:
- 302-18-872
- Mfr. Part No.:
- 2216-S110-P1M1-S111-A-4A
- Brand:
- ETA
Subtotal (1 unit)*
£36.50
(exc. VAT)
£43.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.50 |
*price indicative
- RS Stock No.:
- 288-4071
- Distrelec Article No.:
- 302-18-872
- Mfr. Part No.:
- 2216-S110-P1M1-S111-A-4A
- Brand:
- ETA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ETA | |
| Current Rating | 4A | |
| Product Type | Thermal Circuit Breaker | |
| Series | 2216 | |
| Range | 2216-S11 | |
| Number of Poles | 1 | |
| Width | 45mm | |
| Terminal Type | Blade Terminal | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Push to Reset | |
| Tripping Characteristics | Magnetic, Thermal | |
| Depth | 51.2mm | |
| Standards/Approvals | UL 1077, etc, CSA C22.2 No. 235, EN 60934 (IEC 60934) | |
| Rated AC Voltage | 240V ac | |
| Height | 12.3mm | |
| Breaking Capacity | 300A | |
| Rated DC Voltage | 80V dc | |
| Select all | ||
|---|---|---|
Brand ETA | ||
Current Rating 4A | ||
Product Type Thermal Circuit Breaker | ||
Series 2216 | ||
Range 2216-S11 | ||
Number of Poles 1 | ||
Width 45mm | ||
Terminal Type Blade Terminal | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Push to Reset | ||
Tripping Characteristics Magnetic, Thermal | ||
Depth 51.2mm | ||
Standards/Approvals UL 1077, etc, CSA C22.2 No. 235, EN 60934 (IEC 60934) | ||
Rated AC Voltage 240V ac | ||
Height 12.3mm | ||
Breaking Capacity 300A | ||
Rated DC Voltage 80V dc | ||
- COO (Country of Origin):
- ID
The Single pole thermal magnetic circuit breaker in compact design with slide actuator, trip free mechanism, various trip characteristics and auxiliary contacts.
EN 60934 standard
RoHS compliant
IP30 and IP00 degree protection
Vibration and shock proof
